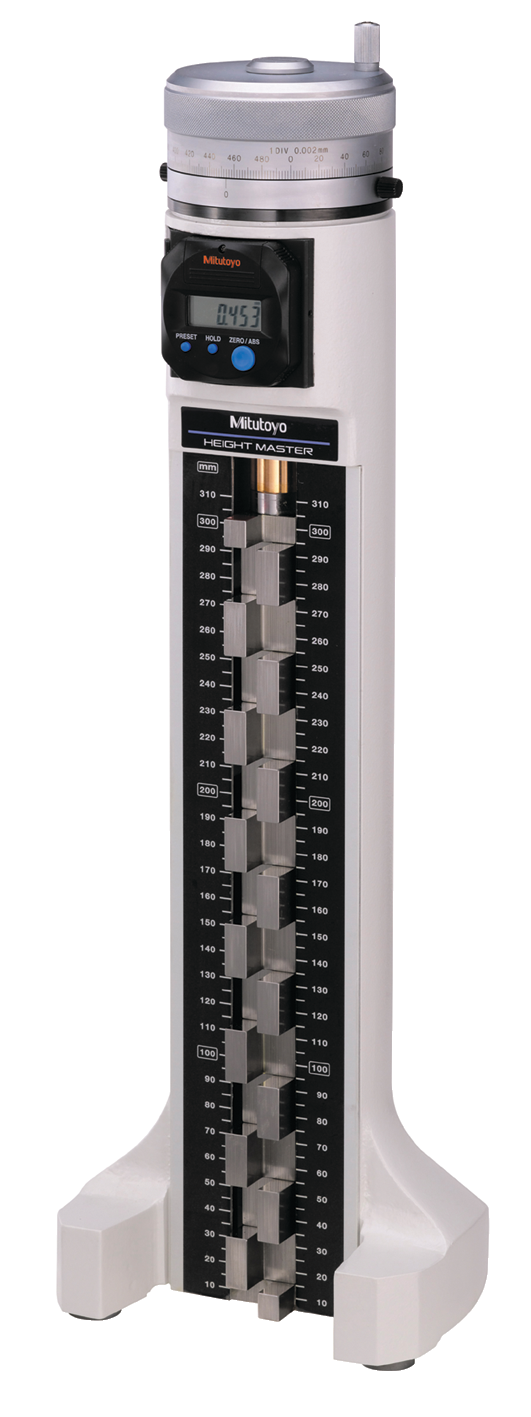

Mitutoyo Digital Height Master 0,5-18" 515-377
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Height Master 0,5-18" 515-377

Mitutoyo Digital Height Master 0,5-18" 515-377

MitutoyoSKU: 515-377
Price: £3,860.00 Excluding VAT
This is a standard model with a digital display, that offers you the following benefits:
  • It gives you all the essential specifications required for a versatile height standard.
  • You can use it to calibrate and set height gauges and other measuring instruments.
  • Models have two measuring faces on the same level, one facing up and the other down.
Features
Graduation:
0.002 mm
Inch-Metric:
Inch
Range:
0.5 - 18 "
Digital step:
0.0001"
Block step:
1" staggered
Feed error:
±100 µin
Retrace error:
100 µin
Micrometer adjustment:
20 mm
Micrometer feed:
0.5 mm
Block pitch accuracy:
Range ? 310 mm : ±1.5 µm
310 < range ? 450 mm:
±2.5 µm
450 < range ? 610 mm:
±3.5 µm
Parallelism of blocks:
Range ? 310 mm:
2 µm
310 < range ? 610 mm:
2.5 µm
Battery life:
Approx. 1,8 years
DATA (output with cable) / HOLD (display value):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Data output:
Yes
PRESET:
Yes
ABS / INC (INC ZERO):
Yes
Delivered:
In a wooden case with certificate of inspection, 0.6" gauge block, SR-44 battery
Mass:
13.6 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Height Master 0,5-18" 515-377 Click to open the PDF document
