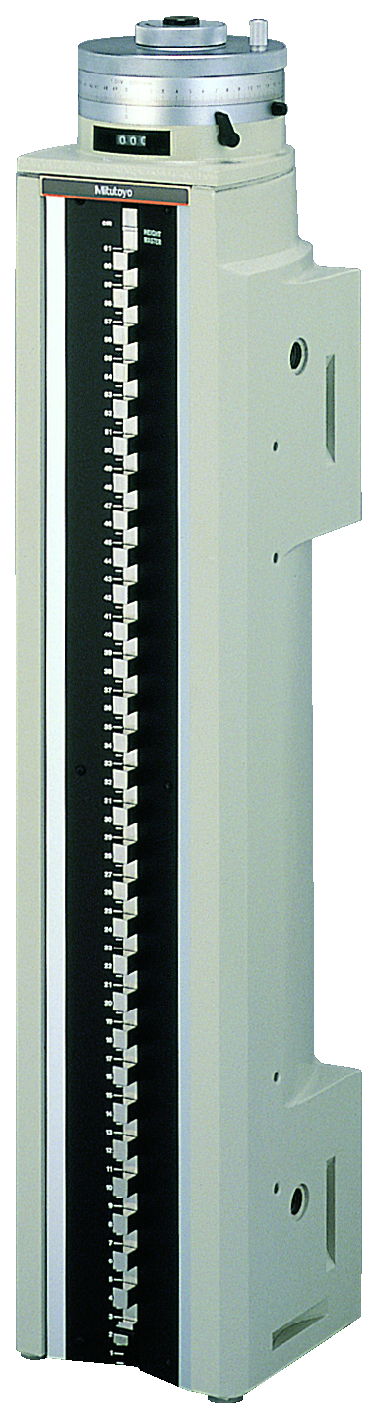

Universal Height Master 0,2-18,2" 515-512

MitutoyoSKU: 515-512
Price: £7,560.00 Excluding VAT
This height master offers you the following benefits:

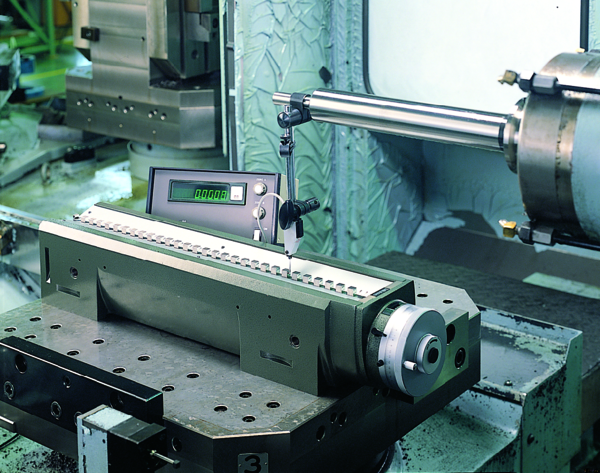

  • You can use it to calibrate and set height gauges and other measuring instruments.

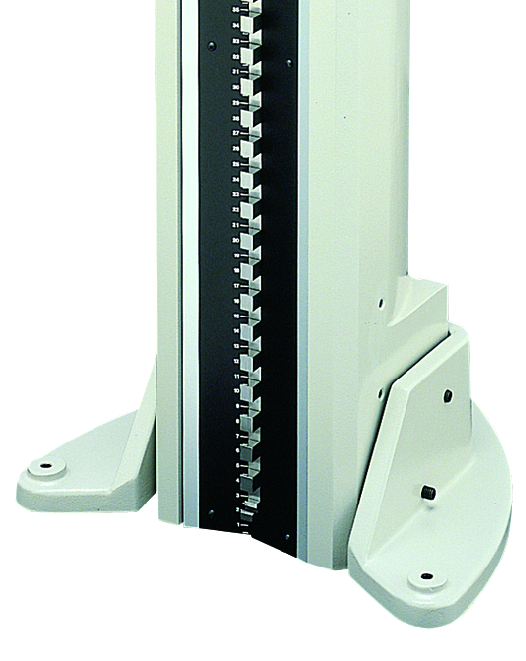

  • Models with the staggered arrangement of blocks have two measuring faces on the same level, one facing up and the other down.
  • It is supplied in a fitted wooden case.
Features
Block step:
0.5" straight
Feed error:
±40 µin
Inch-Metric:
Inch
Retrace error:
40 µin
Range:
0.2 - 18.2 "
Micrometer adjustment:
20 mm
Micrometer feed:
0.5 mm
Block pitch accuracy:
Range ? 310 mm: ±1.5 ?m
310 < range ? 610 mm: ±2.5 ?m
610 < range ? 1010 mm: ±3.5 ?m
Parallelism of blocks:
Range ? 610 mm: 1,5 ?m
610 < range ? 1010 mm: 2 ?m
Delivered:
In a wooden case with certificate of inspection
Mass:
42 kg
