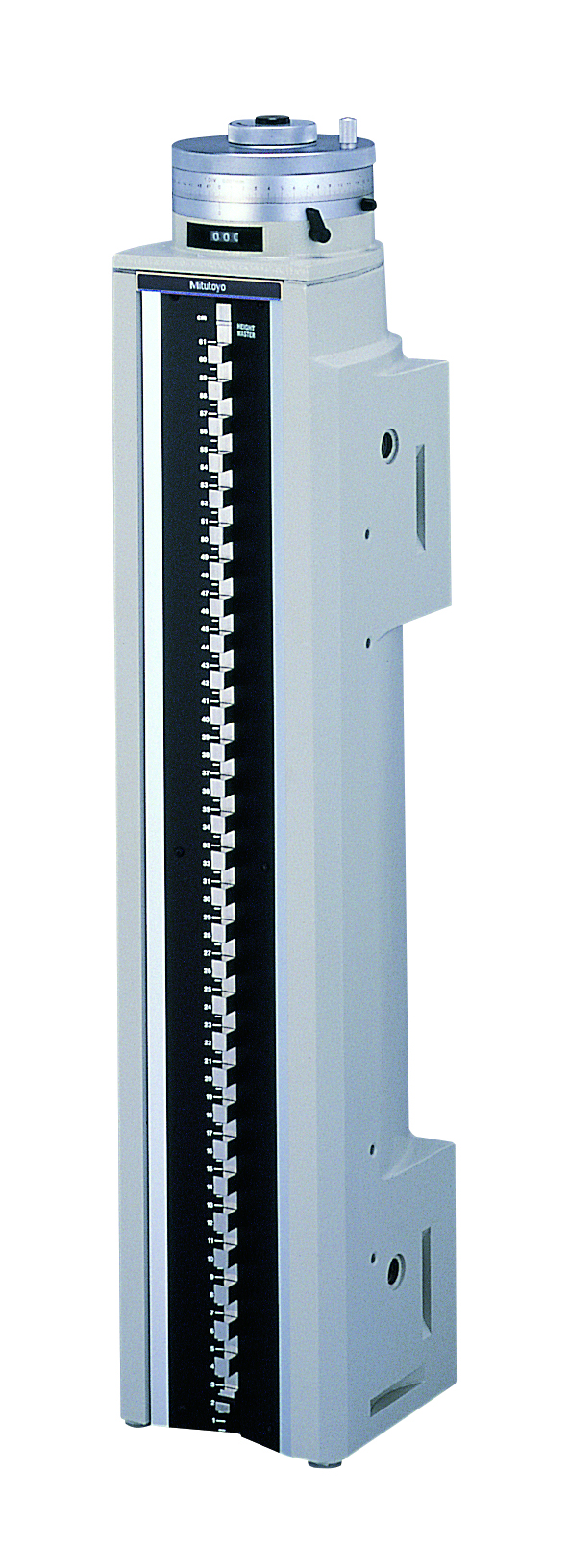

Universal Height Master 5-610mm 515-520

Name: Universal Height Master 5-610mm 515-520
Brand: Mitutoyo
SKU: 515-520
Price: 6408.0 GBP
Availability: InStock

MitutoyoSKU: 515-520

All prices exclude VAT, which will be added at checkout.

Price:

£6,408.00 £7,200.00

Quantity:

This height master offers you the following benefits:

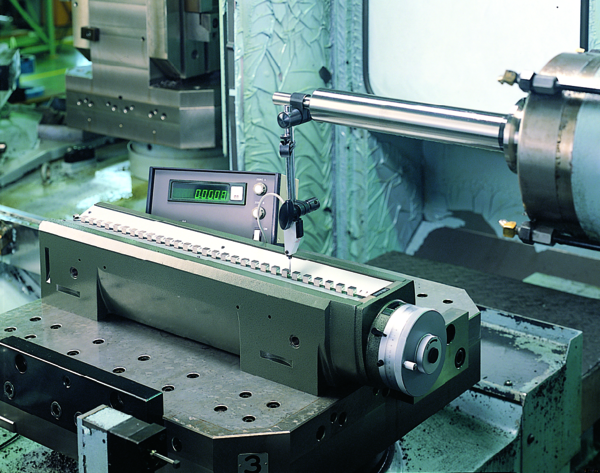

You can use it to calibrate and set height gauges and other measuring instruments.

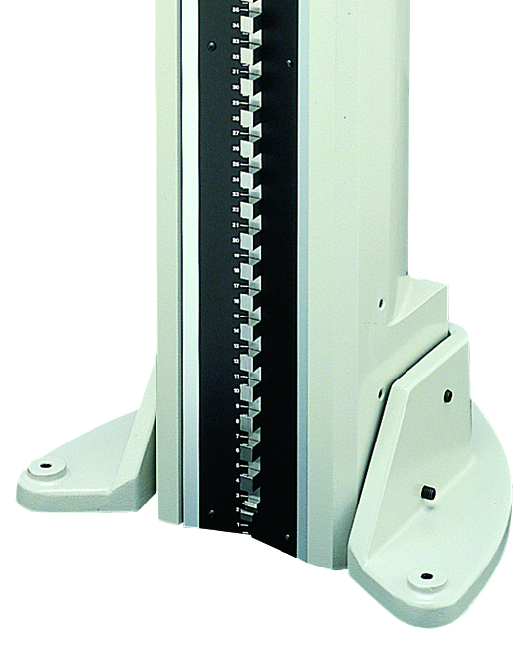

Models with the staggered arrangement of blocks have two measuring faces on the same level, one facing up and the other down.
It is supplied in a fitted wooden case.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Range:	5 - 610 mm
Graduation:	0.001 mm
Block step:	10 mm straight
Feed error:	±1.2 µm
Inch-Metric:	Metric
Retrace error:	1.2 µm
Micrometer adjustment:	20 mm
Micrometer feed:	0.5 mm
Block pitch accuracy:	Range ≤ 310 mm: ±1.5 μm 310 < range ≤ 610 mm: ±2.5 μm 610 < range ≤ 1010 mm: ±3.5 μm
Parallelism of blocks:	Range ≤ 610 mm: 1,5 μm 610 < range ≤ 1010 mm: 2 μm
Delivered:	In a wooden case with certificate of inspection
Mass:	45 kg
