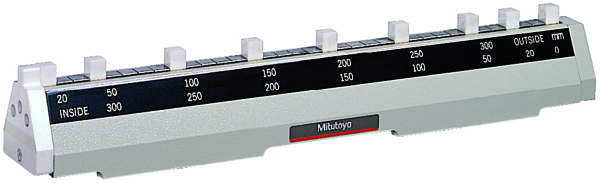

CERA Caliper Checker 20-600mm 515-556-2

Name: CERA Caliper Checker 20-600mm 515-556-2
Brand: Mitutoyo
SKU: 515-556-2
Price: 4720.0 GBP
Availability: InStock

MitutoyoSKU: 515-556-2

Price: £4,720.00 Excluding VAT

Quantity:

Optional Services

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Recommended Alternatives

Select an alternative below to view its full details.

Sort alternatives Choose price or brand order

Aditya CCI-1000 Caliper Checker 1000mm Accuracy .007mm Code C1103010000Brand: Accurate MetrologySKU: C1103010000 Price: £1,950.00 View this alternative →

Adita Caliper Checker 600mm Code C1103010600 (CC2-600)Brand: Accurate MetrologySKU: C1103010600 Price: £2,430.00 View this alternative →

Overview Technical Information Applications Videos & Documents

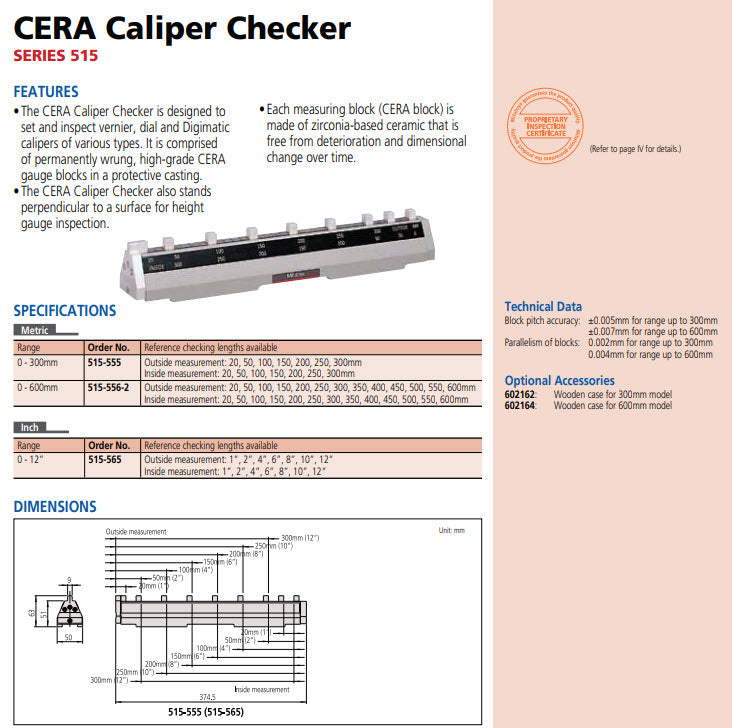

Range:	0 - 600 mm
Inch-Metric:	Metric
Reference checking lengths available for outside/inside measurement:	20, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550 and 600 mm
Block pitch accuracy:	±0.007 mm
Parallelism of blocks:	0.004 mm
Delivered:	In a paper case with certificate of inspection
Mass:	8.5 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document CERA Caliper Checker 20-600mm 515-556-2 Click to open the PDF document
