| Range: |
0 - 150 mm
|
| Inch-Metric: |
Metric
|
| Reference length : |

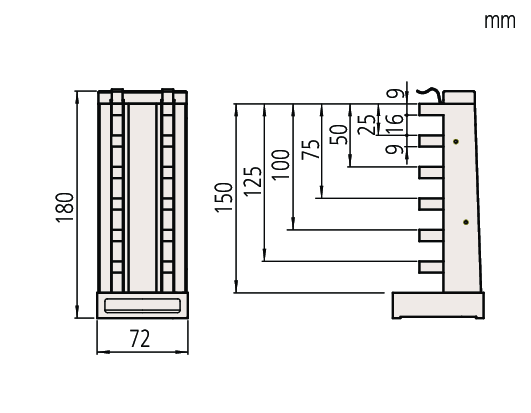

25, 50, 75, 100, 125, 150 mm
|
| Anvil block accuracy: |
±0.5 µm
|
| Block pitch accuracy: |
±(1+L/150)µm L= lenght to check (mm)
|
| Delivered: |
In a wooden case with certificate of inspection, 25 mm carbide reference block
|
| Mass: |
3 kg
|
No technical information is currently available.
No application information is currently available.
