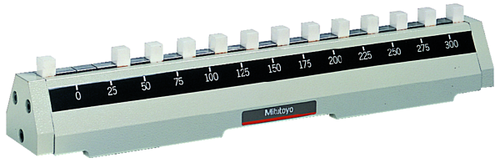

Mitutoyo Inside Micrometer Checker 25-300mm 515-585

Roll over image to zoom in Click on image to zoom

Mitutoyo Inside Micrometer Checker 25-300mm 515-585

Name: Mitutoyo Inside Micrometer Checker 25-300mm 515-585
Brand: Mitutoyo
SKU: 515-585
Price: 1830.0 GBP
Availability: InStock

MitutoyoSKU: 515-585

Price: £1,830.00 Excluding VAT

Quantity:

Optional Services

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo 940286 Support Clamps x2 for Micrometer Checker 515-585/586 +£380.00 Part number: 940286 → View product

Recommended Alternative

Select an alternative below to view its full details.

Adita CCI-300 Caliper Checker 300mm Accuracy .005mm Code C1103010300Brand: Accurate MetrologySKU: C1103010300 Price: £950.00 View this alternative →

Overview Technical Information Applications Videos & Documents

This Inside Micro Checker offers you the following benefits:

Applicable for Series 133, 139 and 145 (over 50 mm).
Not applicable for Series 137, 141, 337 and 339
It designed to act as a setting standard for inside micrometers.
It comes with ceramic gauge blocks.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Inside Micrometer Checker 25-300mm 515-585 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Range:	25 - 300 mm
Graduation:	25 mm
Inch-Metric:	Metric
Reference length :	25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300 mm
Block pitch accuracy:	±(1+L/150) µm L = Length to check (mm)
Delivered:	In a wooden case with certificate of inspection, support clamps, 2.0x10.0 mm gauge block grade 0.0
Mass:	3.9 kg
