Name: Check Master 0-12,5" 515-710
Brand: Mitutoyo
SKU: 515-710
Price: 2380.0 GBP
Availability: InStock

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

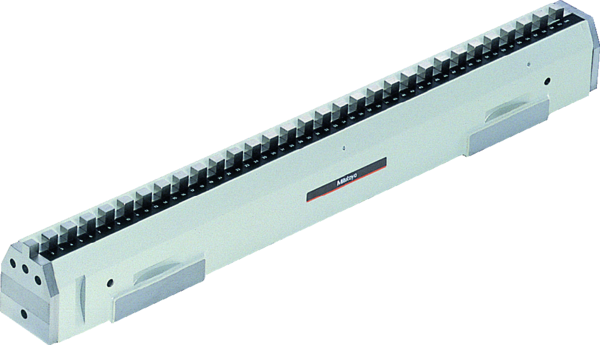

This Check Master allows you to test precision tool and coordinate measuring machines, and offers you the following benefits:

You can test the X, Y and Z-coordinate axes of precision tool machines and coordinate measuring machines.
It consists of rigidly clamped gauge blocks with a step of 10mm.
It is supplied in a fitted wooden case.

No technical information is currently available.

No application information is currently available.

Product Document Check Master 0-12,5" 515-710 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Experienced engineers helping you select the correct measuring solution.

✔️

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation, commissioning and operator training available.

🤝

Technical support, servicing, repairs and ongoing customer care.

Inch-Metric:	Inch
Range:	0 - 12,5 "
Block step:	0.5" straight
Block pitch accuracy:	Range ? 310 mm: ±2,5 µm 310 < range ? 610 mm: ±3,5 µm 610 < range ? 1010 mm: ±5,0 µm 1010 < range ? 1510 mm: ±8,0 µm
Parallelism of blocks:	Range ? 310 mm: 1,2 µm 310 < range ? 610 mm: 1,5 µm 610 < range ? 1010 mm: 2,0 µm 1010 < range ? 1510 mm: 2,5 µm
Hardness:	> 64 HRC
Delivered:	In a wooden case with certificate of inspection
Mass:	7 kg

Check Master 0-12,5" 515-710
