Check Master 0-40,5" 515-713
Roll over image to zoom in Click on image to zoom
Check Master 0-40,5" 515-713

Check Master 0-40,5" 515-713

MitutoyoSKU: 515-713
Price: £6,290.00 Excluding VAT

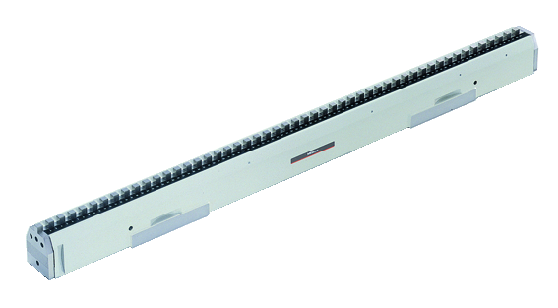

This Check Master allows you to test precision tool and coordinate measuring machines, and offers you the following benefits:
  • You can test the X, Y and Z-coordinate axes of precision tool machines and coordinate measuring machines.
  • It consists of rigidly clamped gauge blocks with a step of 10mm.
  • It is supplied in a fitted wooden case.
Features
Inch-Metric:
Inch
Range:
0 - 40,5 "
Block step:
0.5" straight
Block pitch accuracy:
Range ? 310 mm: ±2,5 µm
310 < range ? 610 mm: ±3,5 µm
610 < range ? 1010 mm: ±5,0 µm
1010 < range ? 1510 mm: ±8,0 µm
Parallelism of blocks:
Range ? 310 mm:
1,2 µm
310 < range ? 610 mm:
1,5 µm
610 < range ? 1010 mm:
2,0 µm
1010 < range ? 1510 mm:
2,5 µm
Hardness:
> 64 HRC
Delivered:
In a wooden case with certificate of inspection
Mass:
22 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Check Master 0-40,5" 515-713 Click to open the PDF document
