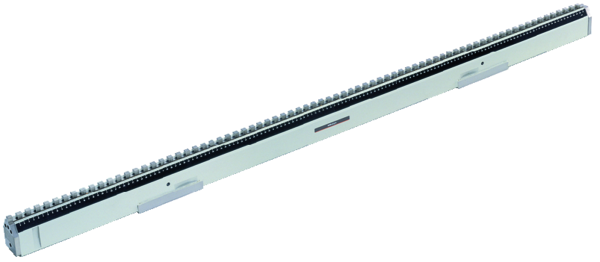

Check Master 0-1510mm 515-724

Name: Check Master 0-1510mm 515-724
Brand: Mitutoyo
SKU: 515-724
Price: 9370.0 GBP
Availability: InStock

MitutoyoSKU: 515-724

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£9,370.00

Quantity:

All prices exclude VAT, which will be added at checkout.

This Check Master allows you to test precision tool and coordinate measuring machines, and offers you the following benefits:

You can test the X, Y and Z-coordinate axes of precision tool machines and coordinate measuring machines.
It consists of rigidly clamped gauge blocks with a step of 10mm.
It is supplied in a fitted wooden case.

Range:	0 - 1,510 mm
Inch-Metric:	Metric
Block step:	10 mm straight
Block pitch accuracy:	Range ≤ 310 mm: ±2,5 µm 310 < range ≤ 610 mm: ±3,5 µm 610 < range ≤ 1010 mm: ±5,0 µm 1010 < range ≤ 1510 mm: ±8,0 µm
Parallelism of blocks:	Range ≤ 310 mm: 1,2 µm 310 < range ≤ 610 mm: 1,5 µm 610 < range ≤ 1010 mm: 2,0 µm 1010 < range ≤ 1510 mm: 2,5 µm
Hardness:	> 64 HRC
Delivered:	In a wooden case with certificate of inspection
Mass:	30 kg
