Mitutoyo Reticle 10 mm Scale (0,01 mm Reading) 516849
Mitutoyo Reticle 10 mm Scale (0,01 mm Reading) 516849
Roll over image to zoom in Click on image to zoom
Mitutoyo Reticle 10 mm Scale (0,01 mm Reading) 516849Mitutoyo Reticle 10 mm Scale (0,01 mm Reading) 516849

Mitutoyo Reticle 10 mm Scale (0,01 mm Reading) 516849

MitutoyoSKU: 516849
Price: £114.00 Excluding VAT

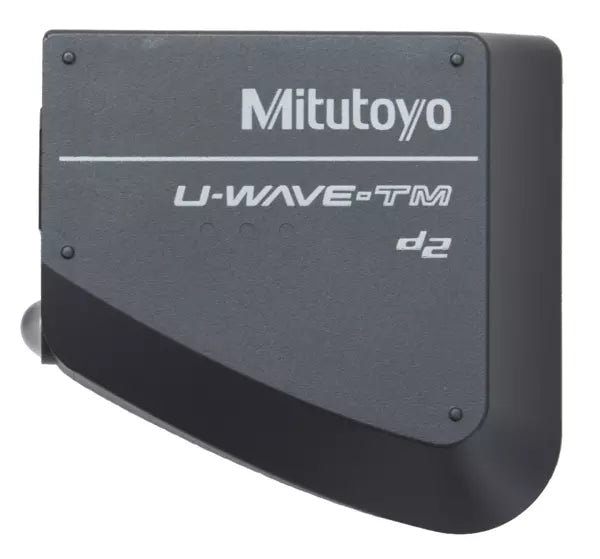

  • Approx. 20 m (within visible range).
  • Communication frequency: 2,4GHZ wireless system for reliable and secure data transmission.
  • Easy data export to Easy data export to Microsoft® Excel® or other professional SPC software applications like Mitutoyo MeasurLink.
  • Transmitter confirms data transfer by a buzzer sound or a red/green LED signal.
  • Low power consumption: 400.000 data transmissions with one battery.
  • U-WAVE Event will also support a data request from a PC. This is ideal if the system is installed at an inaccessible side.
Features
Wireless communication protocol:
Proprietary (2,4 GHz by original specification based on IEEE 802.15.4)
Modulation method:
DS-SS (Direct Sequence Spread Spectrum)

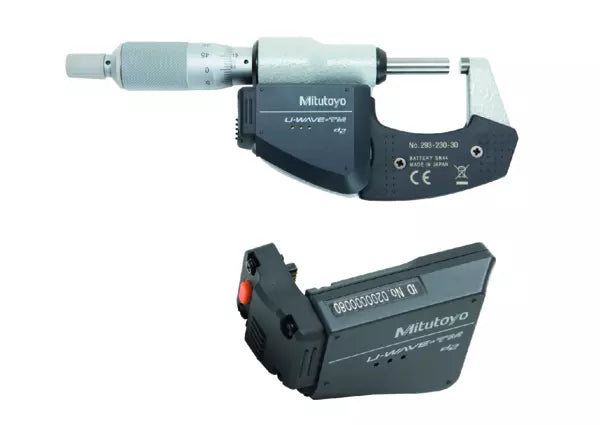

Measuring Instruments:
COOLANT PROOF (IP65)
micrometer, indicator
Remarks:
Standard
Data reception
indication:
Buzzer and LED
(green, red, orange)
Communication distance:
Approx. 20 m (within visible range)
Communication speed kbps:
250
Power supply:
Battery CR2032 x 1 pcs.
Communication with measuring tool:
Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification
Communication frequency:
2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval)
Transmission output:
2,5 mW (4 dBm) or below
OS compatibility:
Windows® 2000 Professional (?SP4),
Windows® XP Professional (?SP2), Windows® XP Home Edition (?SP2), Windows Vista®, Windows® 7 (32bit, 64bit), Windows® 8, 8. 1, 10 (32bit, 64bit), 11
Battery life:
Approx. 400000 transmissions
Delivered:
Including screwdriver, CR 2032 battery, key for battery case

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
