| Digital/Analog: |
Digital
|
| Range: |
0-350 mm
|
| Digital step: |
0.001 mm/0.005 mm
|
| Accuracy: |
±(2,4+2,1L/600) µm
L = Measuring length (mm)
|
| Perpendicularity: |
7 µm
|
| Air floating: |
no
|
| Scale: |
ABSOLUTE electromagnetic inductive
|

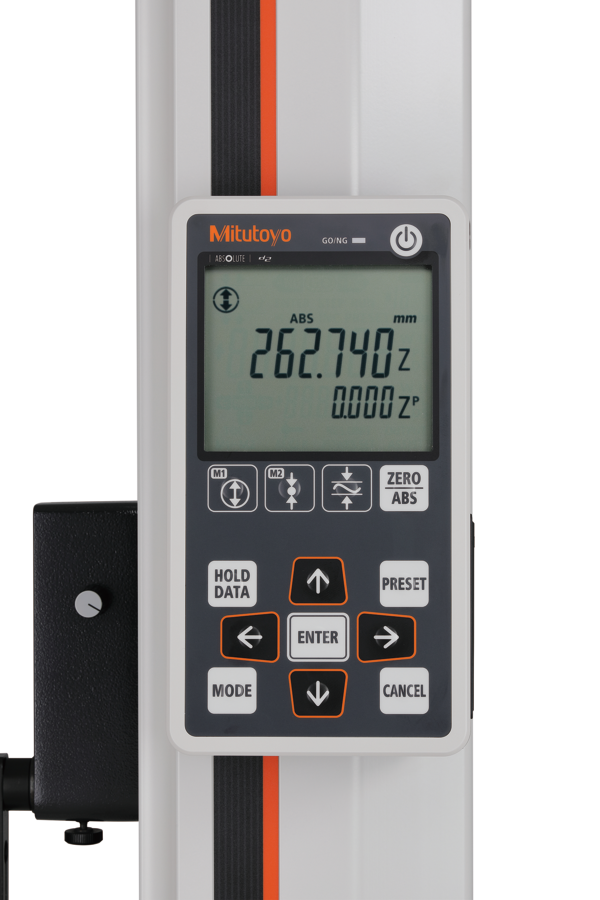

| Display: |
TN monochrome LCD
|
| Measuring function: |
1D measurement: height diameter, pitch, Max/Min/TIR (Max-Min), tolerance, preset, data memory
|
| Drive method: |
Manual
|
| Guiding method: |
Roller bearing
|
| Inch-Metric: |
Metric
|
| Delivered: |

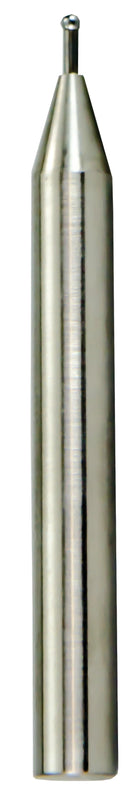

Including 4 batteries, setting block, ball offset probe
|
| Power supply: |
Alkaline battery size AA LR6 (4pcs.), rechargeable battery size AA Ni-MH (4pcs.),
AC-Adapter (optional)
|
| Battery life: |
Approx. 1200 h
(without air floating)
Approx. 90 h (with air floating)
|
| Mass: |
25 kg
|
