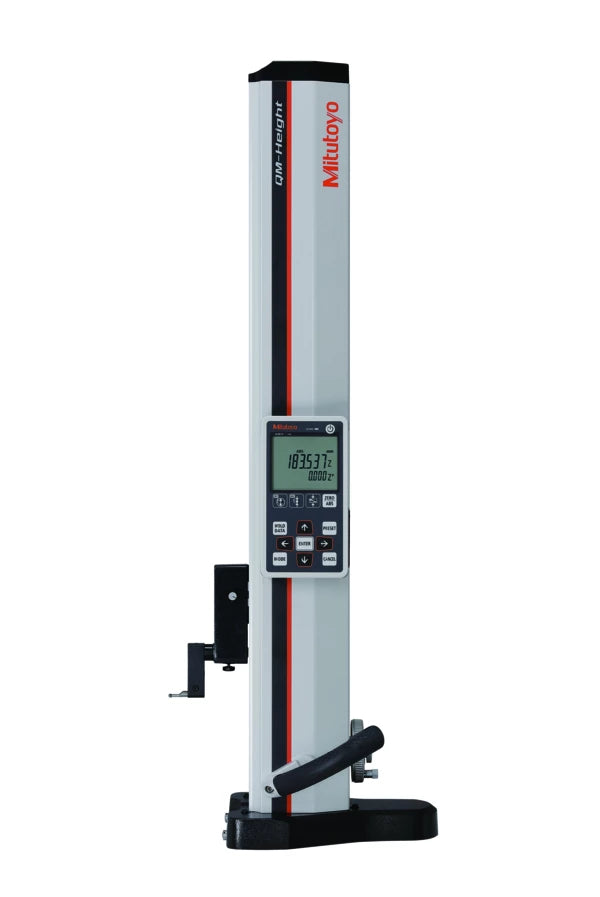

518-243 QM Height w/o Air Floating, Inch/Metric 0-24", 0,00005"/0,0001"/0,0002", with 4x LR6 Batteries

This is a high precision ABSOLUTE Digital Height Gauge that offers you the
following benefits:
It has a high accuracy, high resolution ABSOLUTE linear encoder for
position detection.
Types with and without pneumatic drive mechanism.
Automatic running of prelearnt part programs.
You can easily implement frequently used measurements, such as inside/outside diameter and pitch calculations, by icon-based commands that also support easy one-key operation.
Extraordinary battery life.
GO/±NG judgement is performed by setting the upper and lower tolerances.
Features
Digital/Analog:
Digital
Delivered:
In a cardboard box with LR6 batteries (4 pcs.), setting block for probe calibration, ball offset probe D=5 mm
Range:
0-24"/0-600 mm
Digital step:
0,00005/0,0001/0,0002" or 0,001/0,005 mm
Accuracy:
±(2,4+2,1L/600) µm
L = Measuring length (mm)
Perpendicularity:
12 µm
Air floating:
no
Scale:
ABSOLUTE electromagnetic inductive

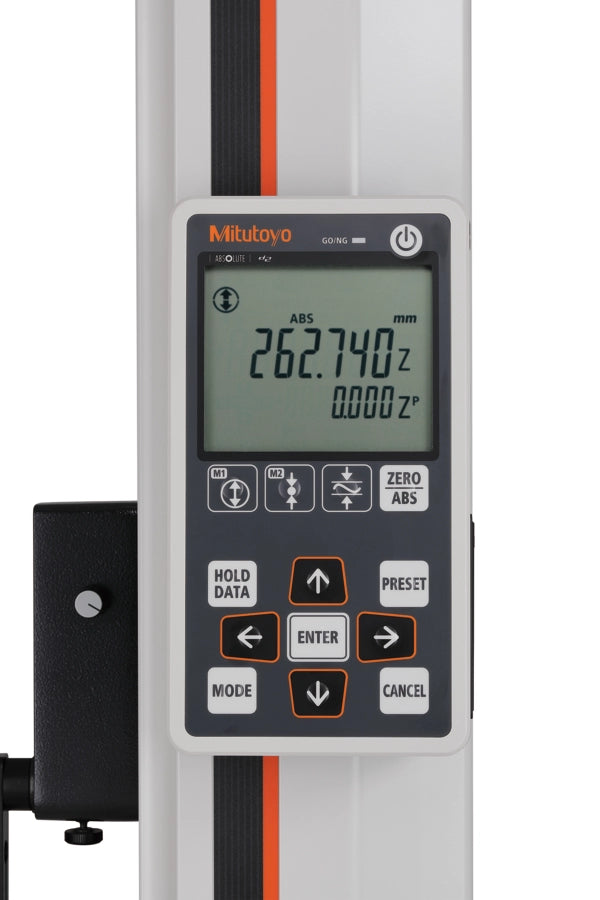

Display:
TN monochrome LCD
Measuring function:
1D measurement: height diameter, pitch, Max/Min/TIR (Max-Min), tolerance, preset, data memory
Drive method:
Manual
Guiding method:
Roller bearing
Inch-Metric:
Inch/Metric
Delivered:
Including 4 batteries, setting block, ball offset probe
Power supply:
Alkaline battery size AA LR6 (4pcs.), rechargeable battery size AA Ni-MH (4pcs.),
AC-Adapter (optional)
Battery life:
Approx. 1200 h
(without air floating)
Approx. 90 h (with air floating)
Mass:
26 kg
