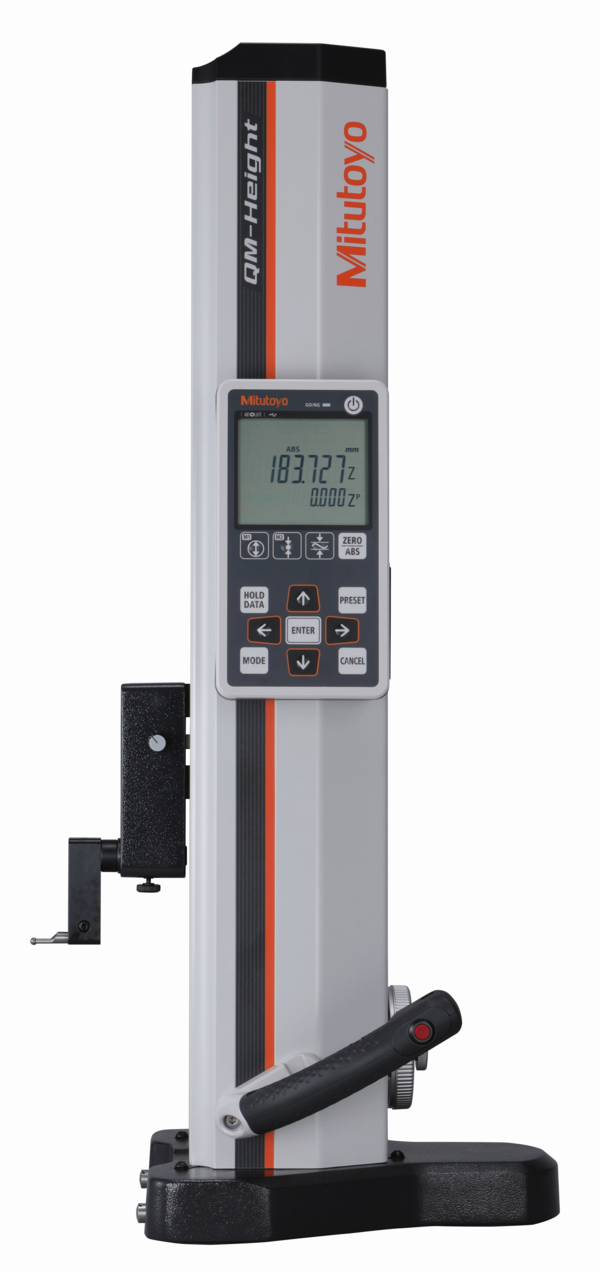

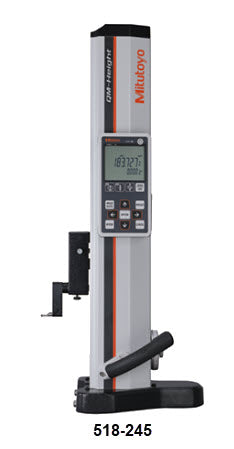

QM Height with Air Floating, Inch/Metric 0-14", 0,00005"/0,0001"/0,0002", 518-245

Description

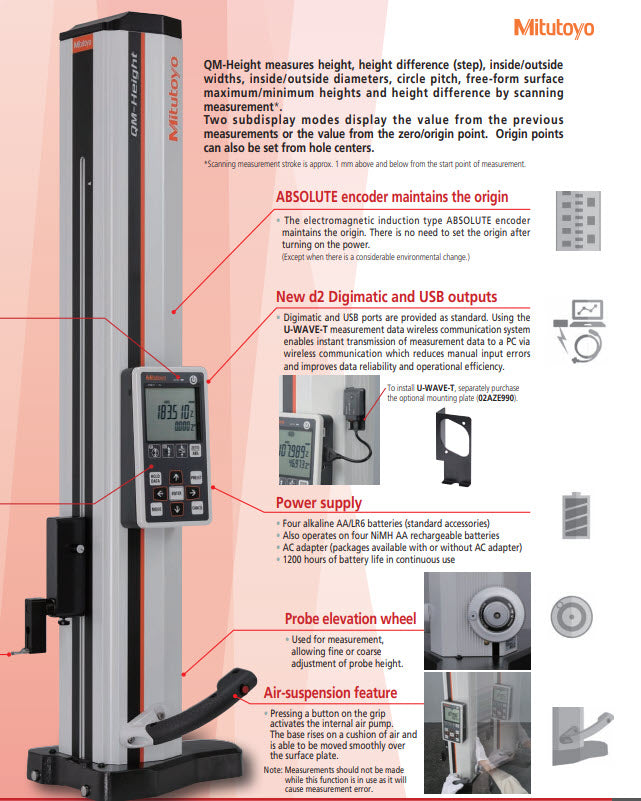

This is a high precision ABSOLUTE Digital Height Gauge that offers you the
following benefits:
It has a high accuracy, high resolution ABSOLUTE linear encoder for
position detection.
Types with and without pneumatic drive mechanism.
Automatic running of prelearnt part programs.
You can easily implement frequently used measurements, such as inside/outside diameter and pitch calculations, by icon-based commands that also support easy one-key operation.
Extraordinary battery life.
GO/±NG judgement is performed by setting the upper and lower tolerances.

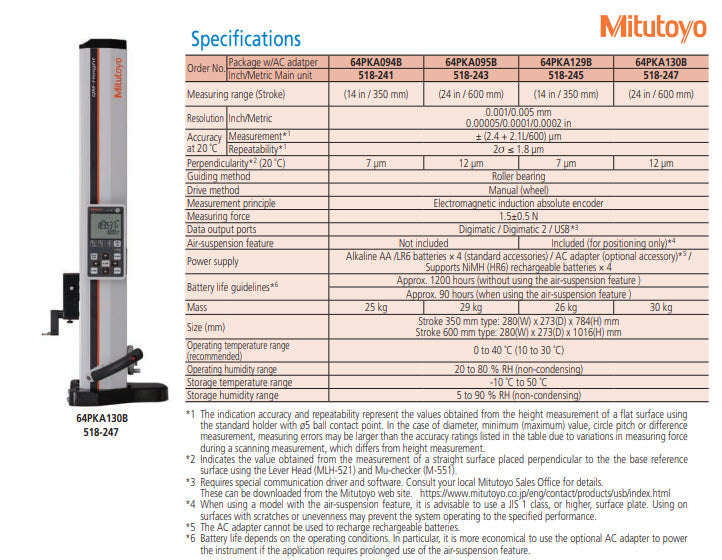

• Range: 0-350mm (0-14″)
• Switchable Resolution: 0.001/0.0005mm (0.00005/0.00001″)
• Accuracy: ± 2.4+2.1L/600 µm L = Measuring length (mm)
• Repeatability: (2σ) ≤ 1,8 µm
• Perpendicularity: 0.007mm
• Measuring force: 1.5 ± 0.5 N
• Scale: ABSOLUTE electromagnetic inductive
• Guiding method: roller bearing

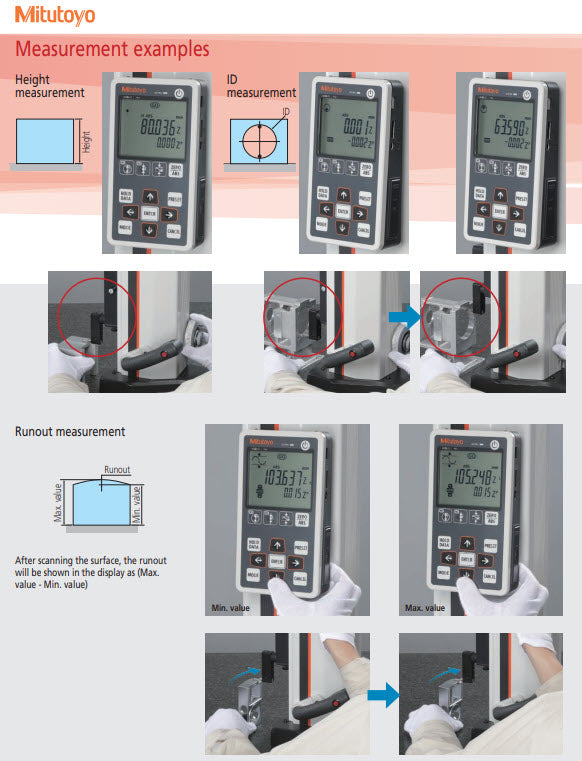

• Measuring function: 1D measurement: height diameter, pitch, Max/Min/TIR (Max-Min), tolerance, preset, data memory
• Inch/Metric
• MPN: 518-245
• Brand: Mitutoyo
