Name: Linear Height LH-600F, Metric/Inch 0-600mm, without Grip, 518-360-13
Brand: Mitutoyo
SKU: 518-360-13
Price: 6595.0 GBP
Availability: InStock

Linear Height LH-600F, Metric/Inch 0-600mm, without Grip, 518-360-13

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

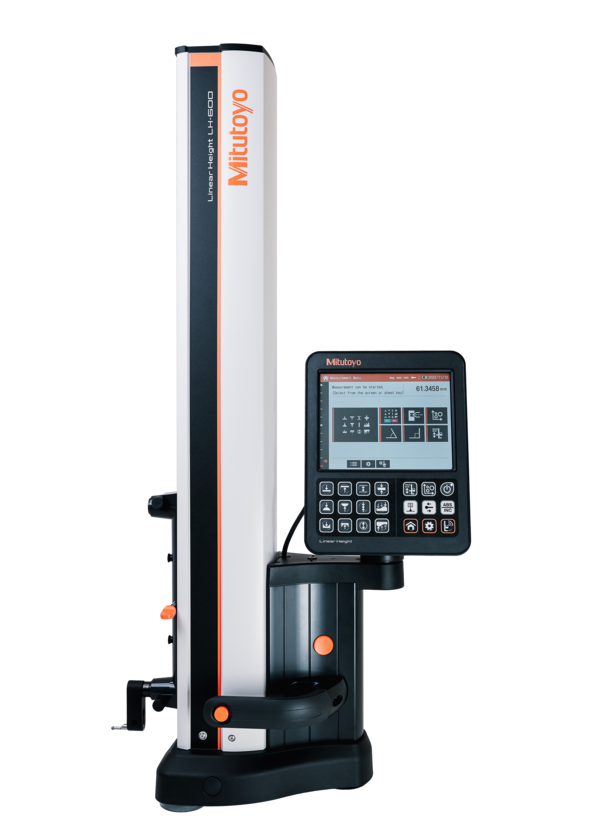

The Linear Heigth LH-600F/FG is a high-end 2D height-measuring instrument exhibiting the perfect combination of intuitive operation, multifunctionality and extraordinary accuracy.

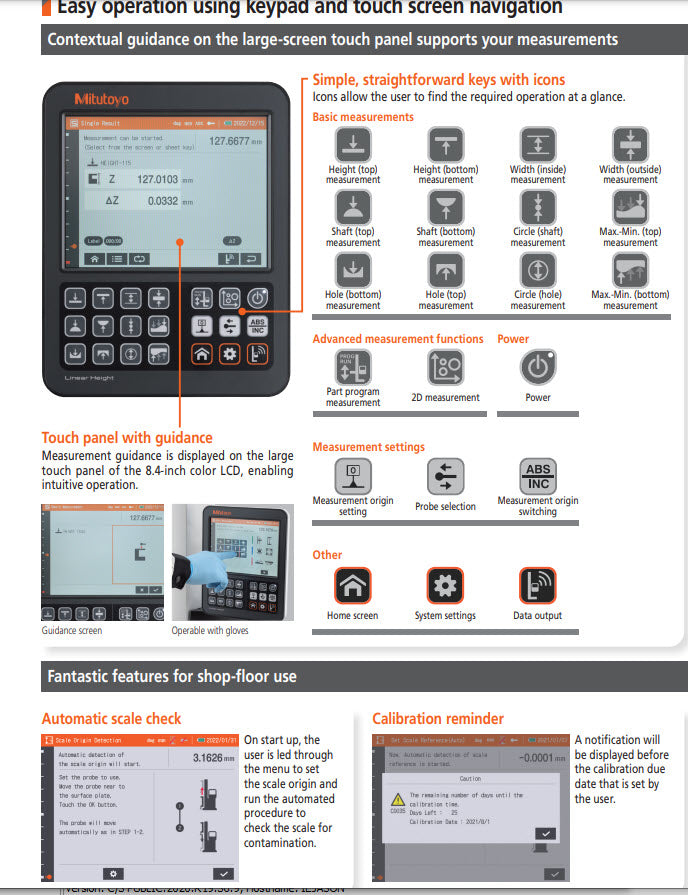

Measurement operations can be performed by using th hybrid controller box with a touch screen and integrated sheet keyboard
It is capable of measuring with a digital step of 0.1µm
Excellent accuracy of (1.1 + 0.6L/600) µm
Bidirectional Digimatic data output (Digimatic S1)
Measurement results can be printed from a receipt printer or Digimatic Printer (DP-1VA) and sent to a PC via wireless communication, USB cable or USB -Stick
Pneumatic drive mechanism

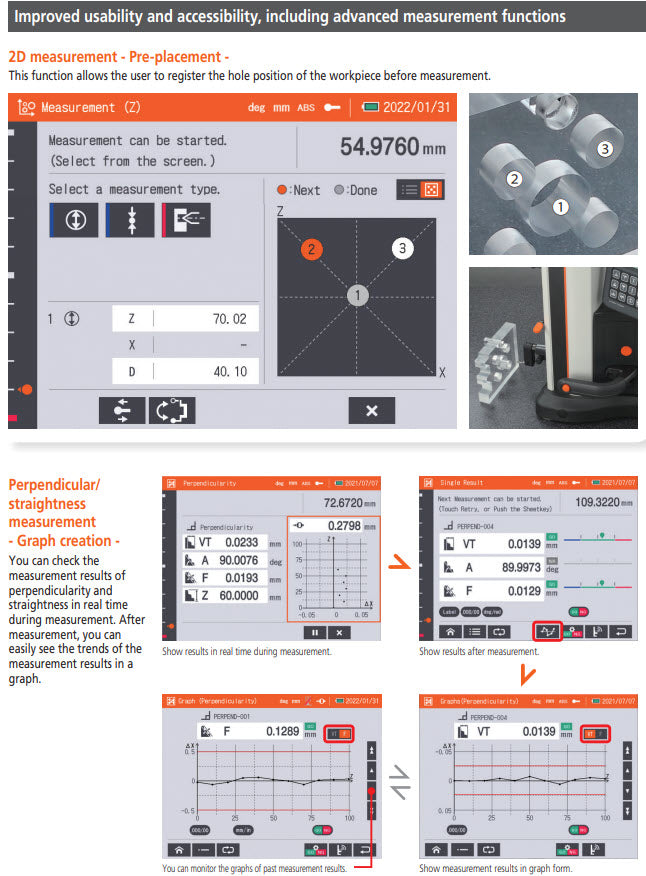

Automatic running of pre-learned part programs
Excellent visualization of GO/±NG tolerance comparisons
Independent operation with rechargeable battery
LH-Communication Tool Software available online free of charge
Dimension L 492 mm x W 238 mm x H 996 mm

*power cable (02ZAA021) needed, please order separately

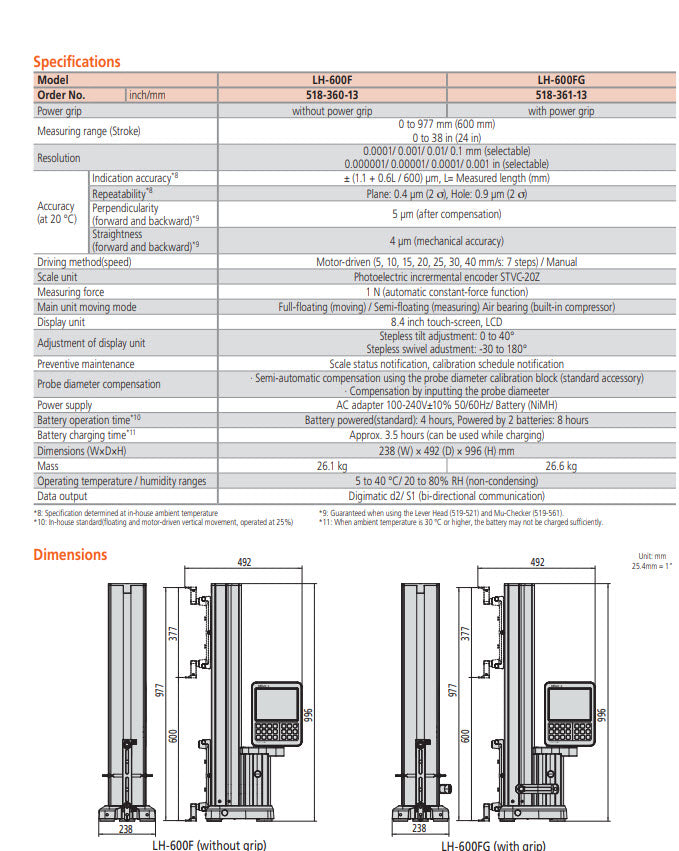

Features

Digital/Analog:	Digital
Interface:	Digimatic S1 bidirectional (for wireless data transmission, Digimatic data transmission), RS-232C (for receipt printer), USB-B (for PC), UAB-A (for memory stick)
Range:	0-977 mm
Slider stroke:	600 mm
Digital step:	0,0001/ 0,001/ 0,01/ 0,1 mm or 0,000001/ 0,00001/ 0,0001/ 0,001"
Remarks:	Without power grip
Accuracy:	±(1,1 + 6L/6000) µm L = length (mm)
Perpendicularity:	5 µm (after compensation)
Straightness:	4 µm (mechanical)
Repeatability:	(2?) Plane : 0,4 µm (2?) Bore : 0,9 µm
Air floating:	Full-floating (for moving), semi floating (for scanning measurement)
Mass:	26.1 kg
Balancing method:	Counterbalance
Drive method:	Motor-driven (5, 10, 15, 20, 25, 30, 40 mm/s: 7 steps)/ manual
Sliding method:	Rolling bearing

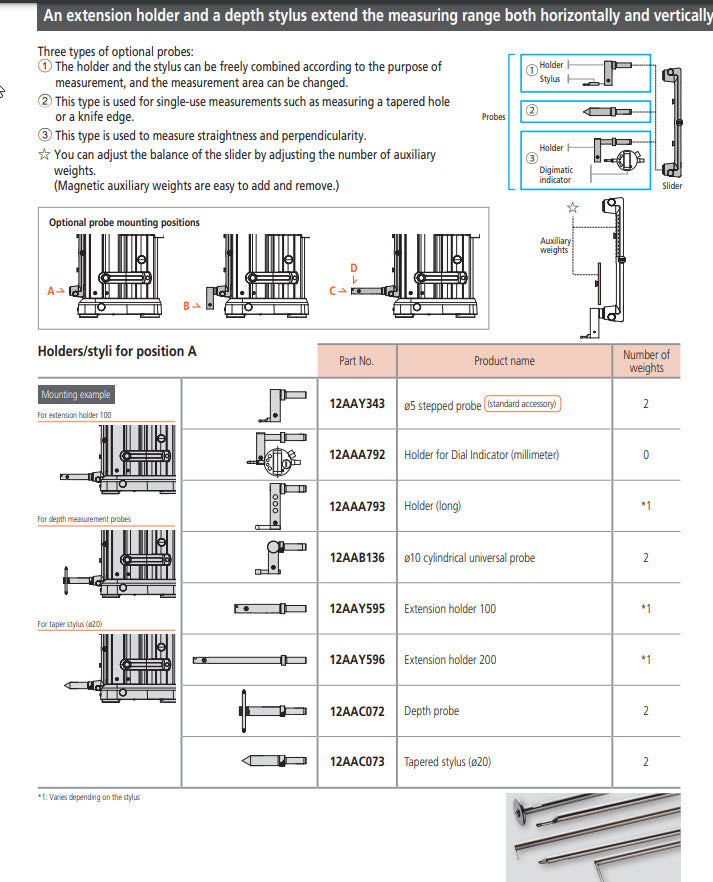

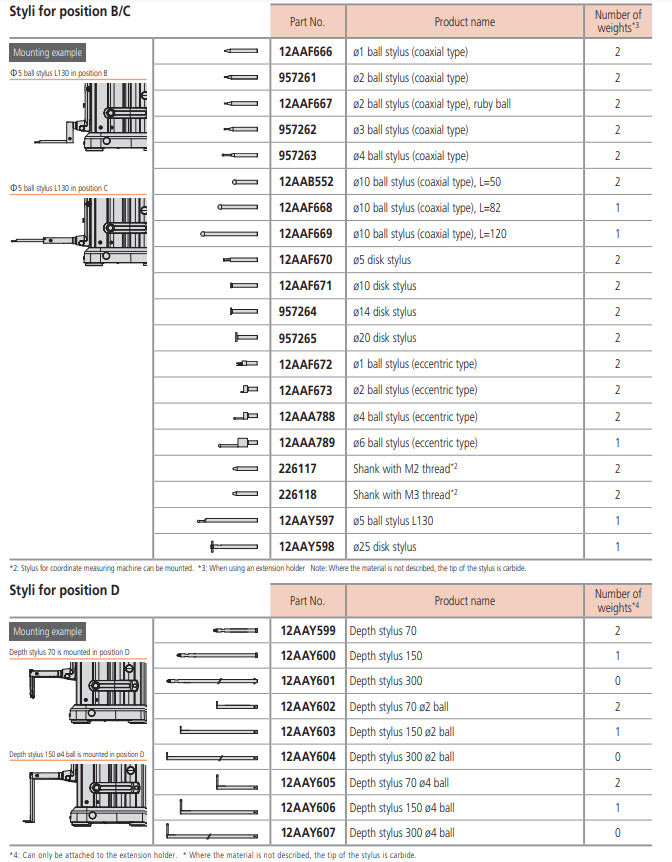

Slider balance adjustment method:	Manual adjustment by adding/removing auxiliary weights
Scale:	Photoelectric INC encoder, STVC-20Z (8.1x10-6/K)
Display:	8.4" SVGA touch screen (800x600 dot, LED, with back lightning)

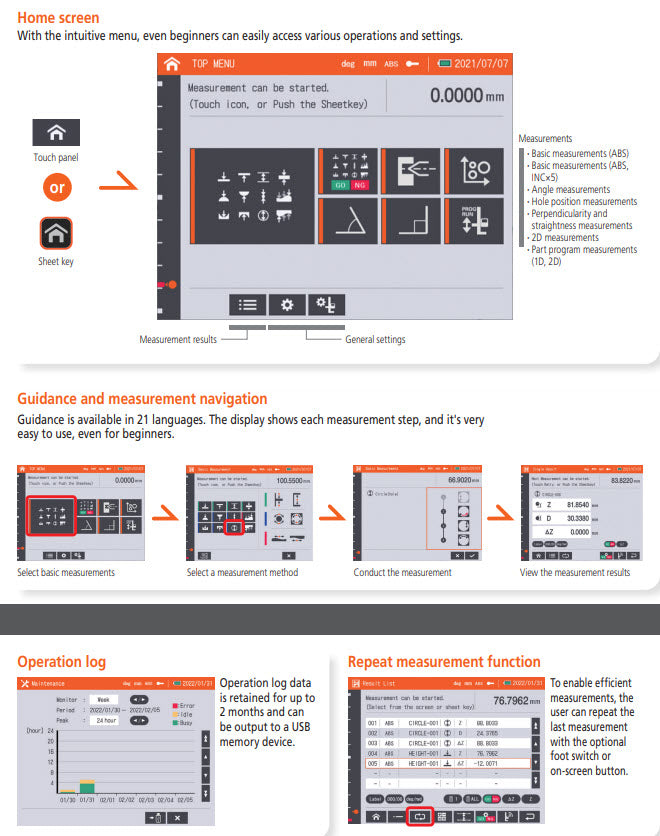

Language for display:	English / German / French / Spanish / Italian / Dutch / Portuguese / Swedish / Turkish / Czech / Hungarian / Slovenian / Polish / Russian / Romanian / Bulgarian / Finnish / Traditional Chinese / Simplified Chinese / Korean / Japanese
Adjustment range of display unit orientation:	Tilt direction: 0-40°, swivel direction: -30-180°
Power supply:	AC adapter 100-240V, 50/60Hz / battery (Ni-MH)
Battery operation time:	Approx. 4 hours
Battery charging time:	Appr. 3,5 h
Power consumption:	Max. 49.9 W
Number of stored part programs:	50
Preventive maintenance function:	Scale status notification, calibration status notification
Operating humidity:	20-80% RH (no condensation)
Airborne noise:	70dB(A)
Inch-Metric:	Metric/Inch
Delivered:	without power cable ( 02ZAA021 )

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Linear Height LH-600F, Metric/Inch 0-600mm, without Grip, 518-360-13 Click to open the PDF document
