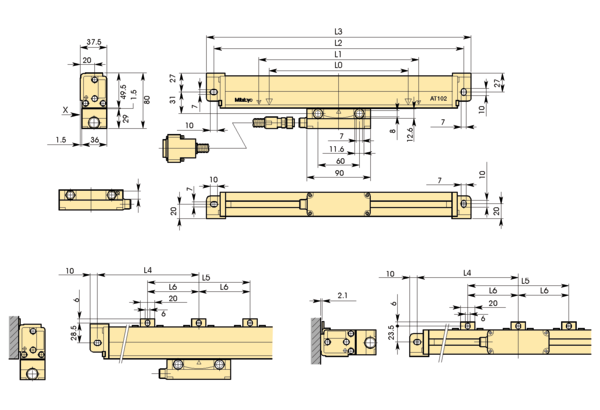

Linear Scale AT103 2500mm 539-139-30

Name: Linear Scale AT103 2500mm 539-139-30
Brand: Mitutoyo
SKU: 539-139-30
Price: 1539.7 GBP
Availability: InStock

MitutoyoSKU: 539-139-30

All prices exclude VAT, which will be added at checkout.

Price:

£1,539.70 £1,730.00

Quantity:

These linear scales offer : Sturdy construction-high resistance to vibration-protection rating are similar in upright and reclining position

The innovative rubber lips keep out contaminants when you are using the scale in a machine shop.
An armoured signal cable is used to connect the scale unit to the DRO counter, so you can operate it safely even in hostile environments.
The signal cable outlet can be positioned on either side of the slider so you can connect the signal cable from either direction.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Accuracy:	100 to 3000 mm (5+5L/1000) µm 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)

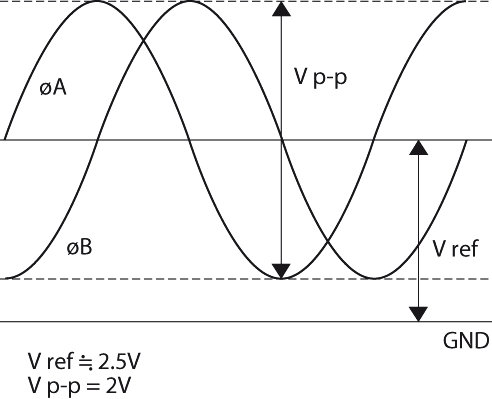

Output waveform:	Two 90° phase-shifted sinusoidal signals
Max. drive speed:	120 m/min.
Signal period:	20 µm
Scale reference points:	every 50 mm
Dust/water protection level:	IP53
Cable length:	7 m
Effective Length:	2,500 mm
Mass:	7.3 kg
