Linear Scale AT103 3000mm 539-142-30

Name: Linear Scale AT103 3000mm 539-142-30
Brand: Mitutoyo
SKU: 539-142-30
Price: 1895.7 GBP
Availability: InStock

MitutoyoSKU: 539-142-30

All prices exclude VAT, which will be added at checkout.

Price:

£1,895.70 £2,130.00

Quantity:

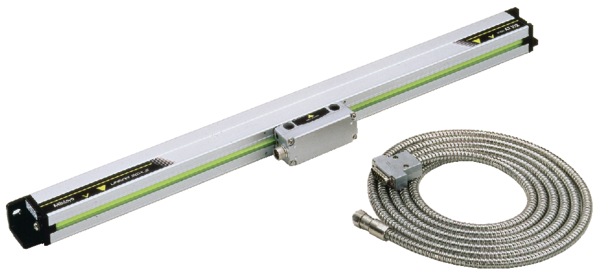

These linear scales offer : Sturdy construction-high resistance to vibration-protection rating are similar in upright and reclining position

The innovative rubber lips keep out contaminants when you are using the scale in a machine shop.
An armoured signal cable is used to connect the scale unit to the DRO counter, so you can operate it safely even in hostile environments.
The signal cable outlet can be positioned on either side of the slider so you can connect the signal cable from either direction.

Accuracy:	(5+5L°/1000) µm

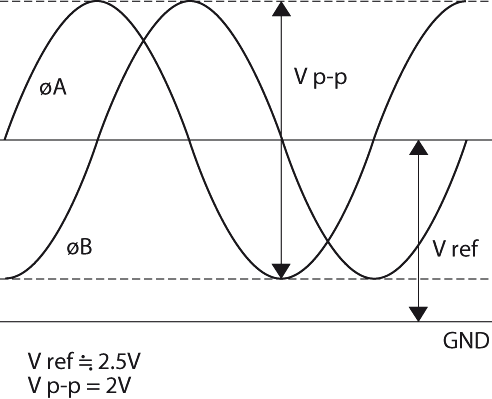

Output waveform:	Two 90° phase-shifted sinusoidal signals
Max. drive speed:	120 m/min.
Signal period:	20 µm
Scale reference points:	every 50 mm
Dust/water protection level:	IP53
Cable length:	7 m
Effective Length:	3,000 mm
Mass:	8.3 kg
