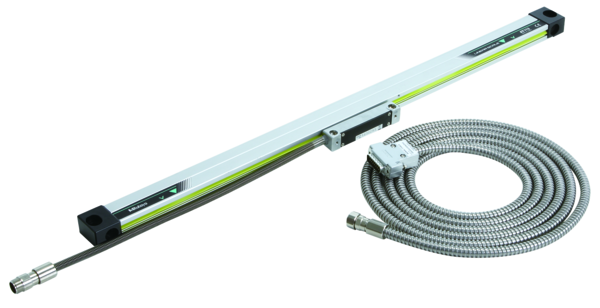

Linear Scale AT113F 1100mm 539-218-40

MitutoyoSKU: 539-218-40
Price: £1,350.00 Excluding VAT
These linear scales are built for limited installation space
  • Glass scale - Zero not coded
  • Expansion factor (8 ± 1)x 10-6/K-1

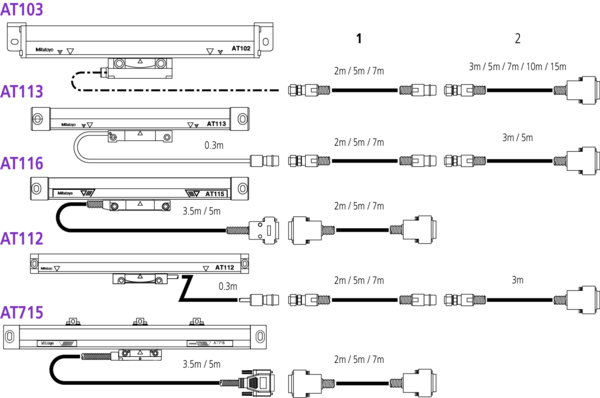

  • An armoured inox signal cable is used to connect the DRO counter
Features
Accuracy:
High-accuracy type
(3+3L/1000) µm
L = Effective range (mm)
Output waveform:
Two 90° phase-shifted sinusoidal signals
Max. drive speed:
120 m/min
Signal period:
20 µm
Scale reference points:
50 mm
Dust/water protection level:
IP53
Cable length:
5 m
Effective Length:
1,100 mm
Mass:
1.9 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Linear Scale AT113F 1100mm 539-218-40 Click to open the PDF document
