Fast Streaming Video and High-Resolution Still Image

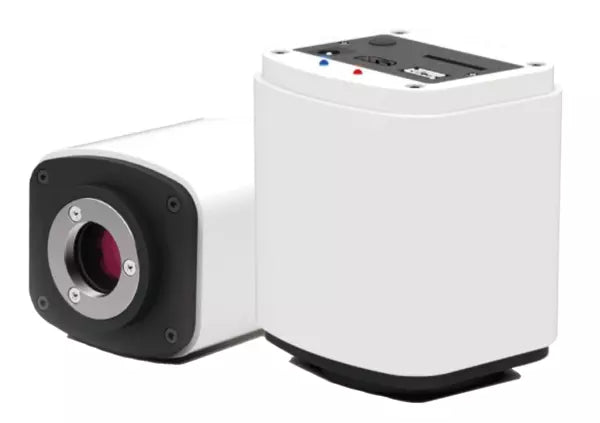

The HDMI16MDPX, high resolution camera is packed with many innovative features to simplify your work. The HDMI16MDPX is the perfect solution for professionals in need of an accurate measurement tool in ?elds of industry, research, medicine and science.
Easy-to-use

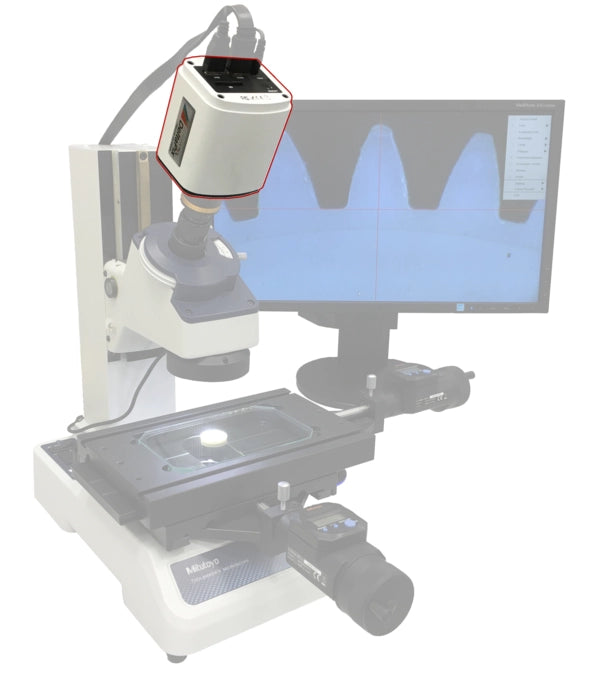

With a standard C-mount interface for universal use and ?exible attachment to microscopes.
Installation of the electronic connection is very simple through connecting a single standard USB 2.0 cable to a computer or a HDMI cable directly to a monitor.
Built-in mouse control
The important innovation of the HDMI16M-DPX camera is that the software is built inside the camera. This signi?cant feature frees the users from computers, the user can control the camera by only a mouse directly attached to the camera.
Bulit-in video record
The user is able to record high de?nition videos at 30fps and 1080 pixels directly on the included SD Card.
Connectivity
The HDMI16MDPX is one of the fastest USB 2.0 cameras in the wold, with 30fps data transfer at 1920 x 1080 resolution. HDMI16DPX supports, XP, Win 7/8/10, 32/64bit and MAC OSX driver free. The HDMI16MDPX is able to export the measurement results to excel ?le or TEXT ?le for convenience.
Features
- Excellent performance of a compact digital camera for microscopy with fast live images and high-resolution still image
- Ideal camera for measurmaents
- Perfect solution for professionals in ?elds of industry, research, medicine and science
- Streaming live video on computer monitor through high-speed USB 2.0 for image cap-ture and analysis on PC
- Streaming live video on HD- monitor through HDMI, no need for a computer
- Perfect image and colour quality with ?ne details due to new HQ Sony CMOS sensor
- Built-in video record
- Exposure time 0.001 sec - 10.0 sec
- Easy and ?exible daily use with built-in mouse control
- Small compact microscopy camera with optical C-mount for easy attachment to a microscope
- Frame speed 1920 x 1080 30fps through USB 2.0,1920 x 1080 60fps through HDMI
- Image capture by mouse click. No need to touch the camera for image capture

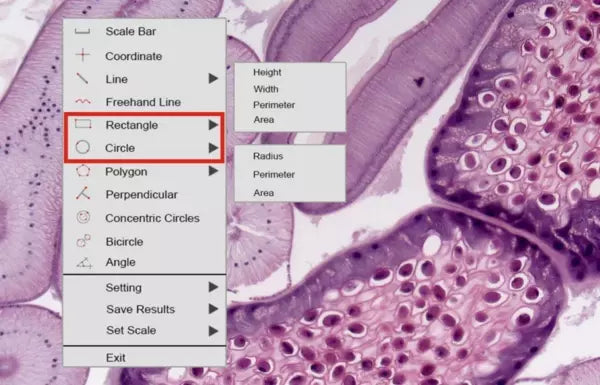

- Intuitive on-screen user interface with power full and easy-to-use image capture and processing functions
- Selectable languages: English, German, Italian, French, Spanish, Japanese, Chinese
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
