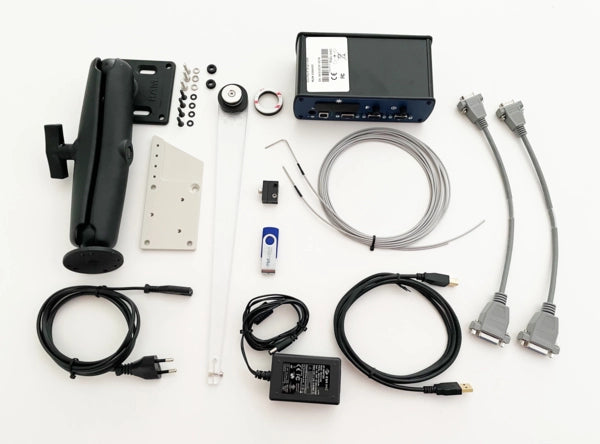

63AAA406 M2-2D Data processing soft- and hardware Non-Edge detection unit incl. PC mounting kit

Support for Clean, Intuitive Design

The user interface design of the M2 software means you’ll spend more time measuring and less time reading manuals. By combining a familiar user experience with current touch screen conventions, the M2 software can quickly be integrated into your process and be accessible to a wide range of users.

Designed for Multi-Touch software control

In addition to the conventional mouse interface, expanded Multi-Touch logic allows for versatile pan and zoom of the active part view. Increase the efficiency of feature construction, feature data manipulation, and reporting tasks with a simple pinch zoom, swipe pan, or double click.

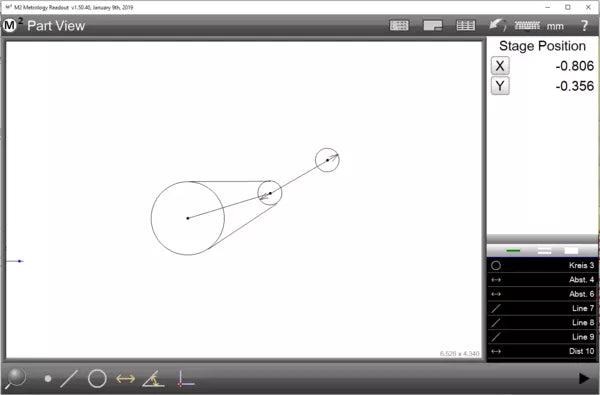

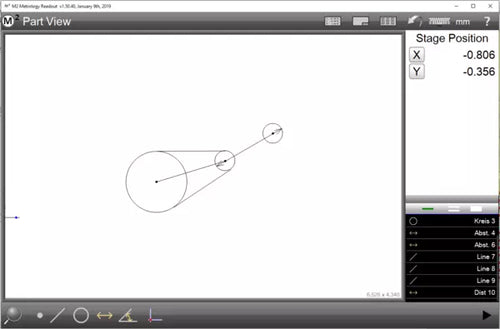

Graphics-based “Part View” constructions

Generate popular construction types, like Distances and Tangent Lines, from within the graphical part view itself. Constructions with multiple sub-types can be toggled quickly with the change feature type command.

Supported construction types include:

Average

Intersections

Tangent Line(s)

Angle Compliments

Offset Skew Lines

Mid/Center Point(s)

Shortest Distance

Gage Circle(s)

Perpendicular/Parallel Line(s)

End Point(s)

Farthest Distance

Bolt Circle
