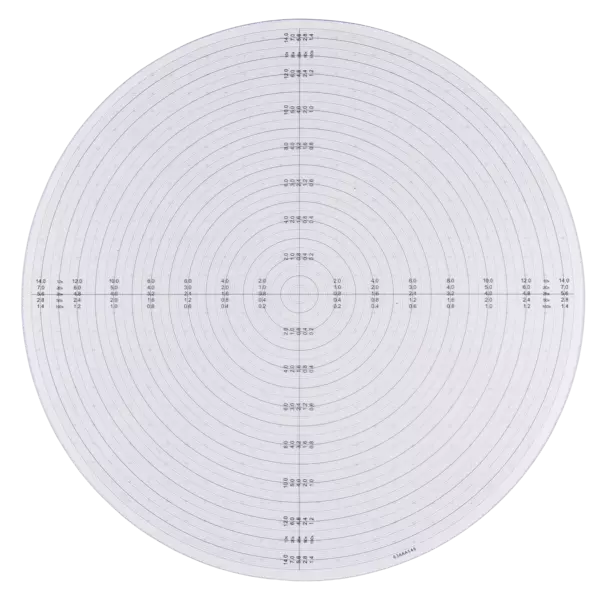

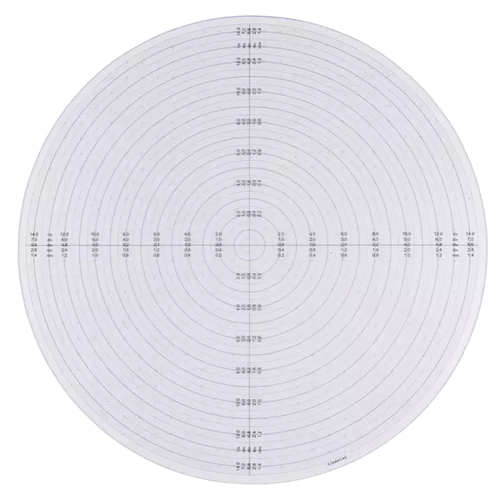

63AAA547 Radius chart ø 340 mm Overlay chart for measuring projector

Roll over image to zoom in Click on image to zoom

63AAA547 Radius chart ø 340 mm Overlay chart for measuring projector

Name: 63AAA547 Radius chart ø 340 mm Overlay chart for measuring projector
Brand: Mitutoyo
SKU: 63AAA547
Price: 257.21 GBP
Availability: InStock

MitutoyoSKU: 63AAA547

All prices exclude VAT, which will be added at checkout.

Price:

£257.21 £289.00

Quantity:

For measuring projectors
These standard overlay charts increase the range of application and the efficiency of Mitutoyo profile projectors.
This chart set offers you the following benefits:
- The charts are supplied in sizes ø250, 300, 340, 500 to suit the screens of Mitutoyo projectors.
- A large range of scales and profiles is provided that enables you to test workpiece features quickly and easily. You can test length, height, parallelism, angle, radius, taper, bore position, diameter,
as well as all standardized thread and tooth profiles.
- All charts are made of a distortion-free special plastics compound and are provided with a protective coating.
Old No. 20..../51.... are discontinued but you can order it with the New No. 63AAA.... if it is not in the list we create it for you.
