| Standard: |
JIS B 7726, ISO 6508-2
|
| Preliminary test force (N): |
98,07
|
| Test force Rockwell (N): |
588,4; 980,7; 1471
|
| Model: |
HR-210MR
|
| Rockwell Scale Diamond: |
HRA; HRD; HRC
|
| Rockwell Scale Ball 1,5875 mm : |
HRFW; HRBW; HRGW
|
| Rockwell Scale Ball 3,175 mm : |
HRHW; HREW; HRKW
|
| Rockwell Scale Ball 6,35 mm : |
HRLW; HRMW; HRPW
|
| Rockwell Scale Ball 12,7 mm : |
HRRW; HRSW; HRVW
|
| Description: |

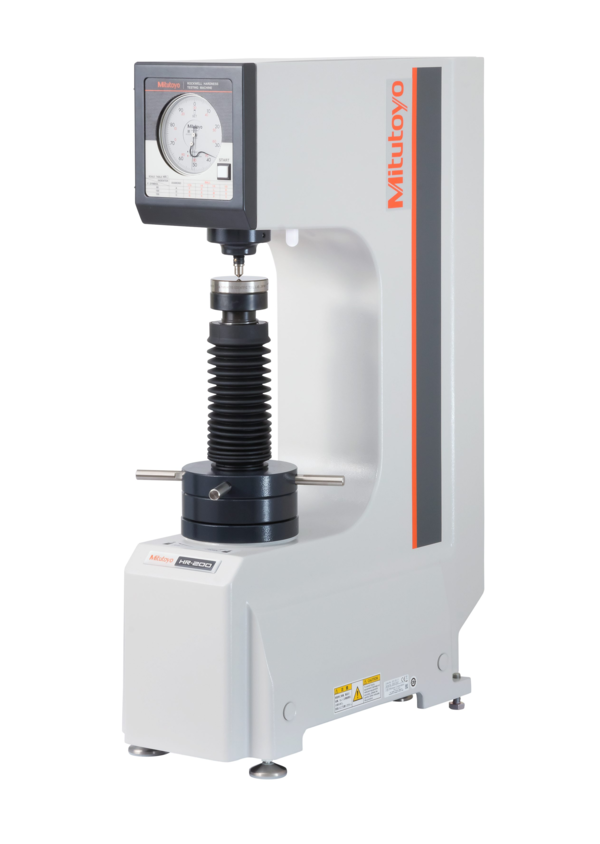

The HR-210MR is an economical Rockwell hardness testing machine to suit practically every application you need. The MR indicates the Rockwell testforce range. It offers you the following benefits:
- The frame was designed with great care to provide maximum clearance for positioning the work piece. All you need is a flat table for mounting these testing machines.
- Its outstanding robustness makes it perfect for even the roughest environments.
- You can attach the clamping device K543,817 to for safe operation with hard to handle workpieces.
- The analogue type HR-210MR uses an automatic presetting dial gauge which makes it easy to operate.
- You can perform Brinell hardness tests, as indicated, by using the following optional accessories:
a Brinell indenter and a measurement microscope.
|
| Resolution: |
0,5 HR graduation
|
| Test force selection: |
Manual weight exchange
|
| Test force application: |
Semi-automatic
|
| Test force duration: |
Fixed 3-5-5 sec. or manual
|
| Height: |
Max. 180 mm (100 if cover is attached) mm
|
| Measuring depth: |
Max. 165 mm (from the center of the indenter axis)
|
| Functions: |
To observe the hardness number within 0,2 HR of the scale unit, as required by ISO 6508-2, the displayed result is to be judged by the dial hand width within the step of the dial gage scale.
|
| Display Unit: |
Analogue dial indicator
|
| Main unit dimensions: |
214x512x780mm
|
| Brinell Scales indentation only Ball 1,0 mm: |
HBW 1/10; HBW 1/30 - indentation only (not according to standard)
|
| Brinell Scales indentation only Ball 10,0 mm: |
HBW 10/100 - indentation only (not according to standard)
|
| HR unit resolution: |
0,5 HR
|
| Jominy-test capability: |
Additional accessories required
|
| Workpiece clamping device K543817 capability: |
Serial
|
| Anvil adaption: |
Ø 19mm
|
| Max. specimen height: |
180 mm
|
| Throat depth: |
165 mm
|
| Max. specimen weight: |
20 kg
|
| Approx. mass main unit: |
47 kg
|
| Gross Weight: |
69,000 [gram]
|
| Standard accessories: |
810-039 Flat anvil Ø64mm
810-040 V-anvil outside diameter Ø40mm groove width 30mm
11AAB941 Water level
383876 Vinyl cover
357651 AC adaptor
Indenters, reference materials and power cord not included
|
| Net weight: |
45,600 [gram]
|
