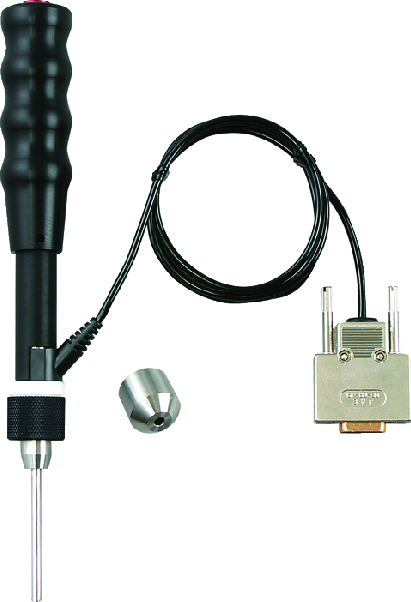

HLDL impact device UD-414 Leeb hardness testing HH-411 Series 810-290-10
HLDL impact device UD-414 Leeb hardness testing HH-411 Series 810-290-10
Roll over image to zoom in Click on image to zoom
HLDL impact device UD-414 Leeb hardness testing HH-411 Series 810-290-10HLDL impact device UD-414 Leeb hardness testing HH-411 Series 810-290-10

HLDL impact device UD-414 Leeb hardness testing HH-411 Series 810-290-10

MitutoyoSKU: 810-290-10
Price: £2,070.00 Excluding VAT
  • Wide range of detectors.
  • In addition to the standard universal hydraulic impactor (type D), users can choose from a wide range of special hydraulic impactors for special measuring tasks.

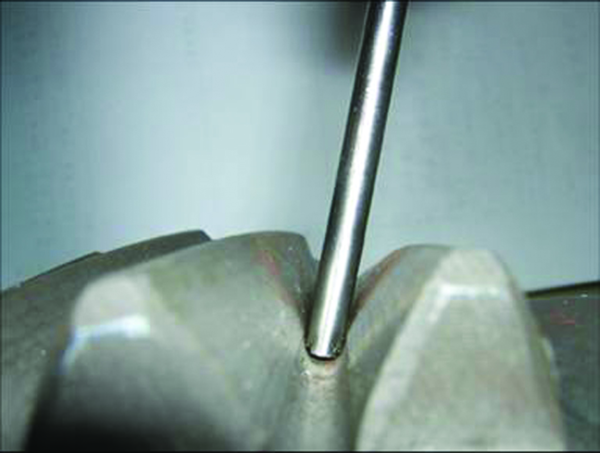

  • Type DL: for measurements in the tightest ranges, such as welded seams or gear wheels.

Features

Impact device:
Impact hammer with integrated carbide-ball tip, D scale (ASTM A 956)
Functions:
Auto angle compensation, Offset, OK/NG judgement, Hardness scale conversion, Data storage (1800 data entries), Statistical analysis (Average value, Max. value, Min. value, Dispersion), Auto sleep function, Impact counter display function
Power supply:
Battery LR6 (2 pcs.) or AC adapter (optional)
Data output:
RS-232C, SPC
Display unit:
7-segment LCD
Hardness Display range:
Leeb hardness: 1 to 999HL
Specimen requirements:
Min. specimen thickness of 5mm or more and mass of 5kg or more (However, a specimen of mass of 0.1 to 5kg is measurable by securing to a massive base) Testing point: 5mm or more from edge of specimen, 3mm or more between testing points Specimen surface roughness: Ra of 2µm or less
Connector cable for:
HH-411
PIN:
Round 6
U-WAVE-T:
02AZD790E
USB-ITN:
06AFM380E
DP-1VA (264-505):
965013
IT-016U 264-016-10 Hardmatic table:
937387

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
