MitutoyoSKU: 810-298-10
Price: £3,300.00 Excluding VAT

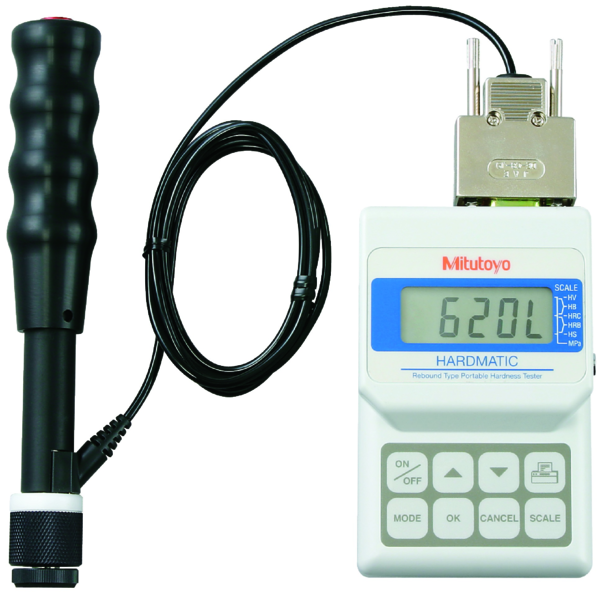

  • The “HARDMATIC” HH–411 is a light-weight portable hardness testing instrument for metal workpieces.
  • It works on the rebound hardness principle (standardized according to ASTM A 956).
  • Measurement is conducted with hardness value L (Leeb-value), however, conversion to any desired hardness scale can be performed.
  • In addition the display automatically shows OK/NG with the tolerance function set and selected.
  • Memory function for 1800 measured values.
  • Automatic measuring direction angle-compensation of the given angle.
Specification
Impact device:

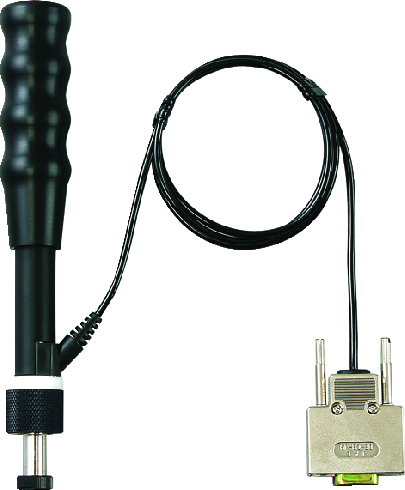

Impact hammer with integrated carbide-ball tip, D scale (ASTM A 956)
Functions:
Auto angle compensation, Offset, OK/NG judgement, Hardness scale conversion, Data storage (1800 data entries), Statistical analysis (Average value, Max. value, Min. value, Dispersion), Auto sleep function, Impact counter display function
Power supply:
Battery LR6 (2 pcs.) or AC adapter (optional)
Data output:
RS-232C, SPC
Model:
HH-411
Accuracy:
±12 HL (800 HL +/- 1.5%)
Display unit:
7-segment LCD
Hardness Display range:
Leeb hardness: 1 to 999HL

Vickers
Brinell
Rockwell C
Rockwell B
Shore
Tensile strength:
Conversion range / Increment
43-950HV / 1 HV
20-894 HB / 1 HB
19.3-68.2 HRC / 0.1 HRC
13.5-101.7 HRB / 0.1 HRB
13.2-99.3 HS / 0.1 HS
499-1,996 MPa / 1 MPa
Specimen Thickness
Specimen Mass:
Min. 5 mm
5 kg or more
Dimensions
Measuring/Display unit:

ø28 x 175 mm / 70 x 110 x 35 mm
Specimen requirements:
Min. specimen thickness of 5mm or more and mass of 5kg or more (However, a specimen of mass of 0.1 to 5kg is measurable by securing to a massive base) Testing point: 5mm or more from edge of specimen, 3mm or more between testing points Specimen surface roughness: Ra of 2µm or less
Mass:
320 g
Connector cable for:
HH-411
PIN:
Round 6
U-WAVE-T:
02AZD790E
USB-ITN:
06AFM380E
DP-1VA (264-505):
965013
IT-016U 264-016-10 Hardmatic table:
937387
