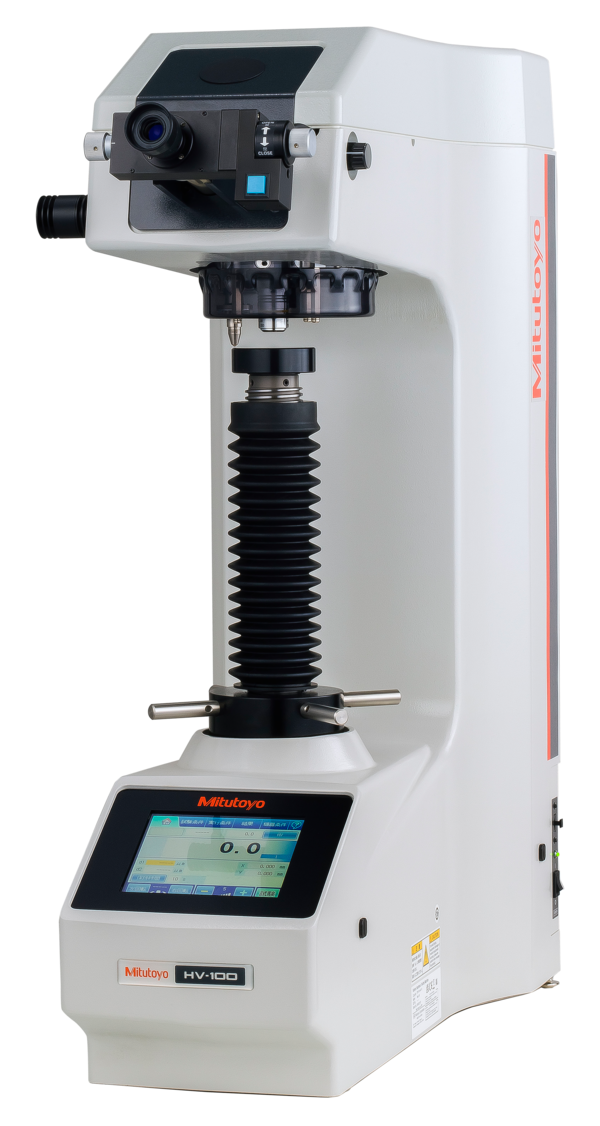

External dimensions
[mm]: |
System A: 307(W)×696(D)×786(H)mm System B/C/D: 307(W)×627(D)×875(H)mm
|
| Objective lens: |
Up to 3 pcs. mountable (one standard lens 10X mounted as standard)
|
| Force dwell time: |
5-999 sec (selectable)
|
| Optical system: |
Infinity corrected optical system
|
| Illumination unit: |
LED light
|
| Test force: |
N: 9,807; 19,61; 29,42; 49,03;
98,07; 196,1; 294,2; 490,3
(kgf): 1; 2; 3; 5; 10; 20; 30; 50
|
| Standard: |
JIS B 7725, ISO 6507-2
|
| Data output: |
RS-232C, Digimatic, USB 2. 0 interface
|

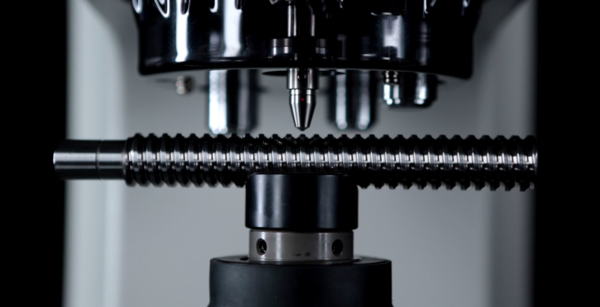

| Indenter approach speed: |
60 µm/s, 150 µm/s selectable
|

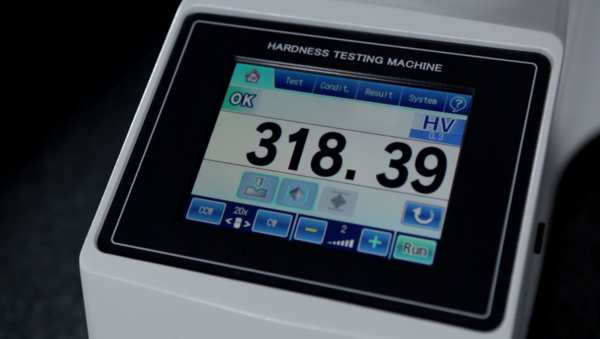

| Control panel: |
Built-in touch panel, 5.7" Color LCD (HM-110A/120A for System A), Control software (PC for System B/C/D)
|
| Functions: |
Calculation of Vickers / Knoop*2 / Brinell*3 hardness, and ceramic fracture toughness based on IF method (JIS R1697),
3 display format (standard, list, simple), GO/NG judgment, test condition guide, curve and user correction,
hardness corresponding value, statistics calculation
|
| Main unit mass: |
HV-110: Approx. 60kg, HV-120: Approx. 58kg
|

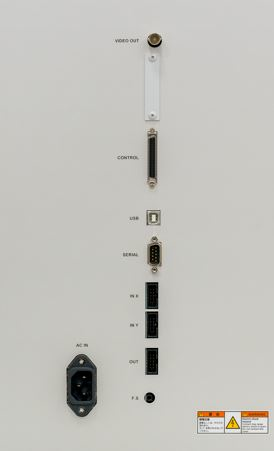

| Output: |
Digimatic, serial, USB2.0 series A (for memory)*1, USB2.0 B Type (for system communication)
|

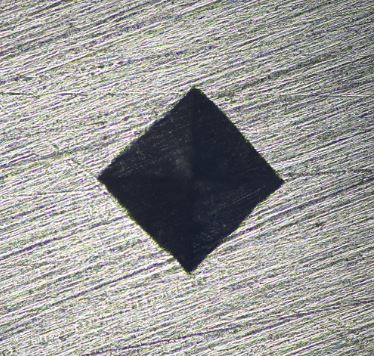

Resolution of
diagonal length
of an indentation: |
Objective lens less than 50X: 0.1μm (Objective lens more than 50X: 0.01μm)
|
Specimen
dimensions: |
System A: height 210mm, depth 170mm (when using flat anvil)

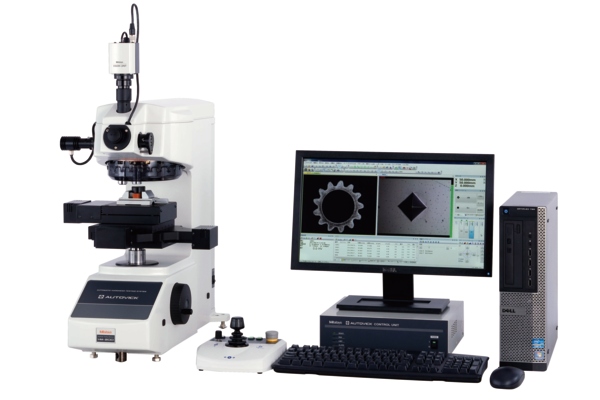

System B: height 181mm, depth 170mm (when using manual XY stage 50X50mm)
System C: height 172mm, depth 170mm, System D: height 132mm, depth 170mm
|
| Test force control: |
Lever method and automatic control (load, duration, unload)
|
| Turret drive: |
Motor driven and manual operation
|
