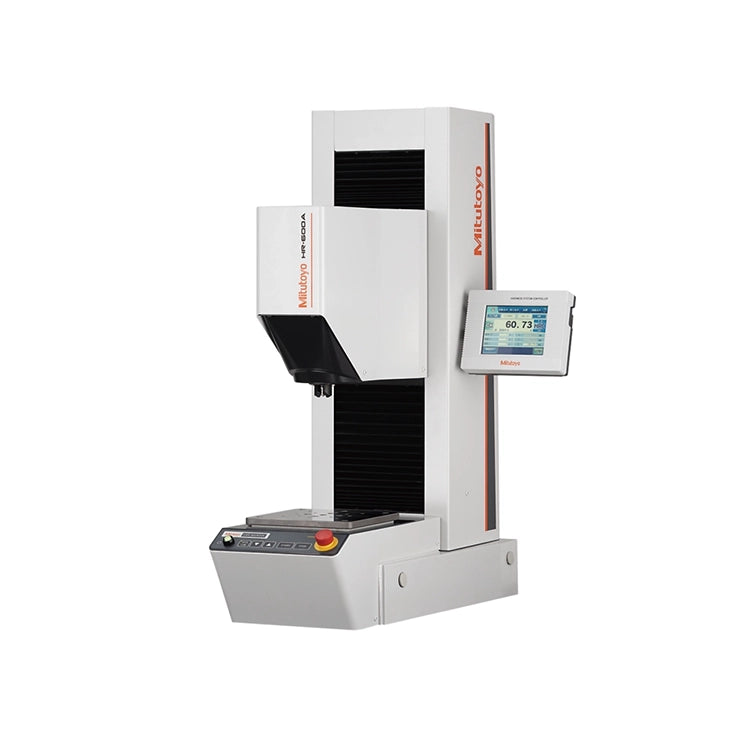

With innovative design and functionality that enables a wide variety of measurements, the Mitutoyo HR-600 Series delivers hardness testing that defies conventional thinking.
It provides you with the following benefits:
- High-End CNC Rockwell Hardness Testing Machine, providing a fully automatic Rockwell hardness test sequence.
- It is operated either with the provided display unit or by the use of AVPAK 3.1 hardness testing software (11AAE525-DEE AVPAK for HR-600A).
- When run with AVPAK 3.1, it can easily be integrated in an automation cell via the programmable Mitutoyo Form EIO automation interface.
- The HR-600 Series combines the functionality of several test methods:
- Rockwell hardness testing
- Brinell hardness testing (indentation only)
- Brinell depth measurement hardness testing
- Vickers depth measurement hardness testing
- Hardness testing of plastic materials
| Hardness testing methods | |
|---|---|
| Rockwell | JIS B 7726:2017, ISO 6508-2:2015, ASTM E18-20 |
| Brinell | JIS B 7724:2017, ISO 6506-2:2017, ASTM E10-18 |
| Plastic | ISO 2039-1:2001 |
| Indentation Brinell | VDI / VDE 2616 |
| Indentation Vickers Hardness | VDI / VDE 2616 |
| Initial test force N (kgf) | |
|---|---|
| Rockwell | 29.42 (3) 98.07 (10) |
| Plastic | 9.807 (1) |
| Indentation Brinell | JIS B 7724:2017, ISO 6506-2:2017, ASTM E10-18 |
| Indentation Vickers Hardness | 9.807 (1) |
No application information is currently available.
