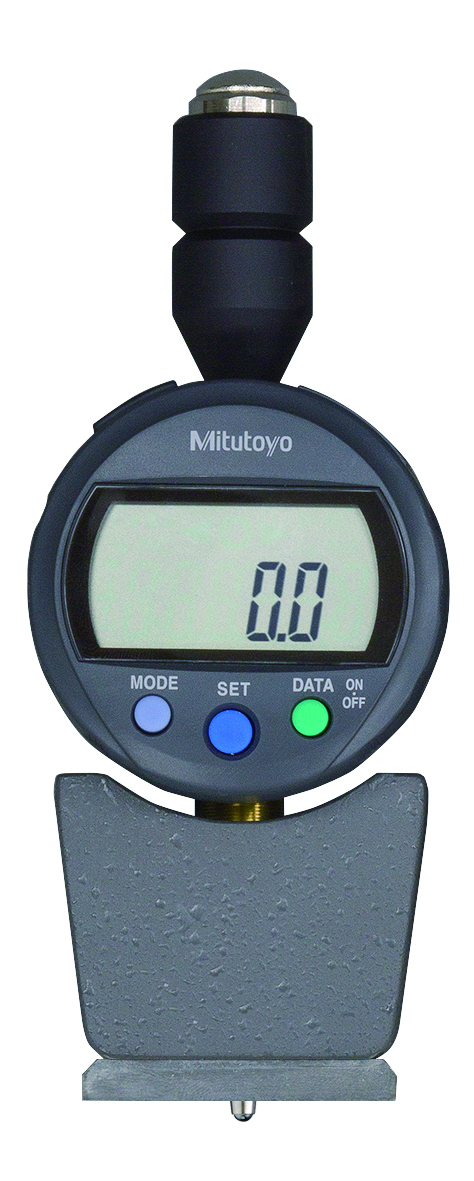

811-330-10 HH-330 Durometer E Compact/Digital Shore E Durometer HH-300 Series 44 x 18 mm

Roll over image to zoom in Click on image to zoom

811-330-10 HH-330 Durometer E Compact/Digital Shore E Durometer HH-300 Series 44 x 18 mm

Name: 811-330-10 HH-330 Durometer E Compact/Digital Shore E Durometer HH-300 Series 44 x 18 mm
Brand: Mitutoyo
SKU: 811-330-10
Price: 941.6 GBP
Availability: InStock

MitutoyoSKU: 811-330-10

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£941.60 £1,070.00

Quantity:

All prices exclude VAT, which will be added at checkout.

These compact digital/dial durometers in the Shore E scale can test a range of different materials and offer you the following benefits:

You can use them for testing the hardness of the materials including soft rubber, elastomers, natural rubber, casting resin, neoprene, polyesters, soft PVC, leather, etc.

Model:	HH-330
Shore Scale:	Shore E
Display:	Digital

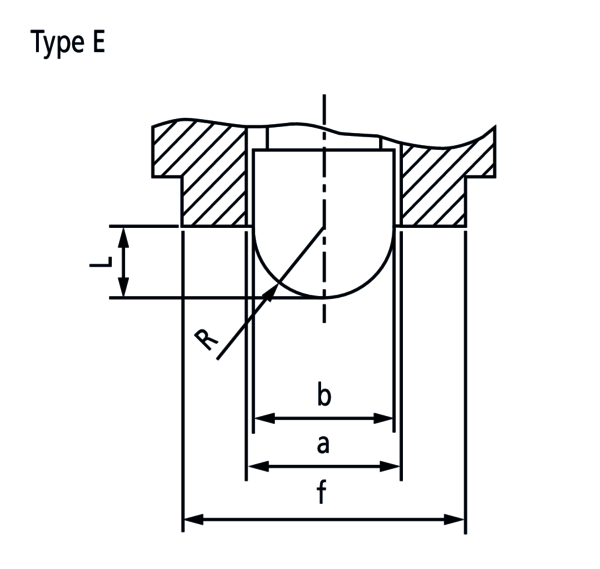

Indenter b:	ø 5 mm
Indenter r:	ø 2,5 mm
Pressure foot a:	ø 5,4 mm
Pressure foot f:	44 x 18 mm
Indenter protrusion:	2,5 mm
Spring force WE, WA, WD:	WE=550+75 HE [mN]
Dimensions (WxDxH):	147 x 59 x 40 mm
Mass:	0.29 kg
Connector cable for:	HH-300 Series
PIN:	Flat
U-WAVE-T:	02AZD790F
USB-ITN:	06AFM380F
DP-1VA (264-505):	959149
IT-016U 264-016-10 Hardmatic table:	937387
