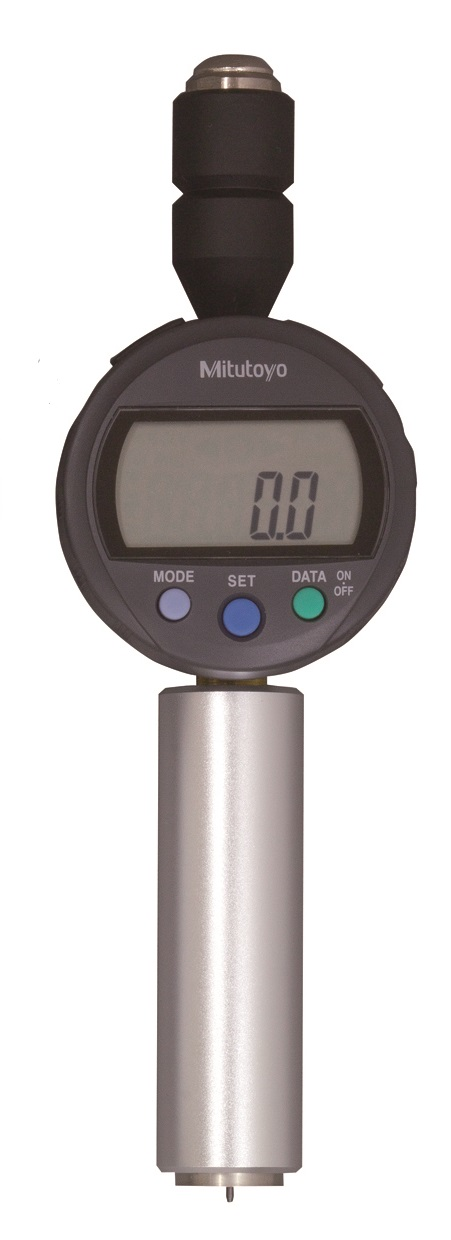

811-334-10 HH-334 Durometer Type D Long/Digital Shore D Durometer HH-300 Series ø 18 mm

MitutoyoSKU: 811-334-10

List price: Regular price£1,380.00 Offer price: Sale price£1,214.40 Excluding VAT
These compact digital durometers in the Shore D scale can test a range of different materials and offer you the following benefits:
  • You can use them for testing the hardness of the materials including hard rubber, hard plastics, acrylic glass, Polystyrene, rigid thermoplastics, vinyl, cellulose acetate, etc.

Model:
HH-334
Display:
Digital
Indenter b:
ø 1,25 mm
Indenter r:
R 0,1 mm
?:
30°
Pressure foot a:
ø 3 mm
Pressure foot f:
ø 18 mm
Indenter protrusion:
2,5 mm
Spring force
WE, WA, WD:
WD=444,5H D [mN]
Dimensions (WxDxH):
193 x 60 x 29.5 mm
Mass:
0.31 kg
Connector cable for:
HH-300 Series
PIN:
Flat
U-WAVE-T:
02AZD790F
USB-ITN:
06AFM380F
DP-1VA (264-505):
959149
IT-016U 264-016-10 Hardmatic table:
937387

No technical information is currently available.

No application information is currently available.
