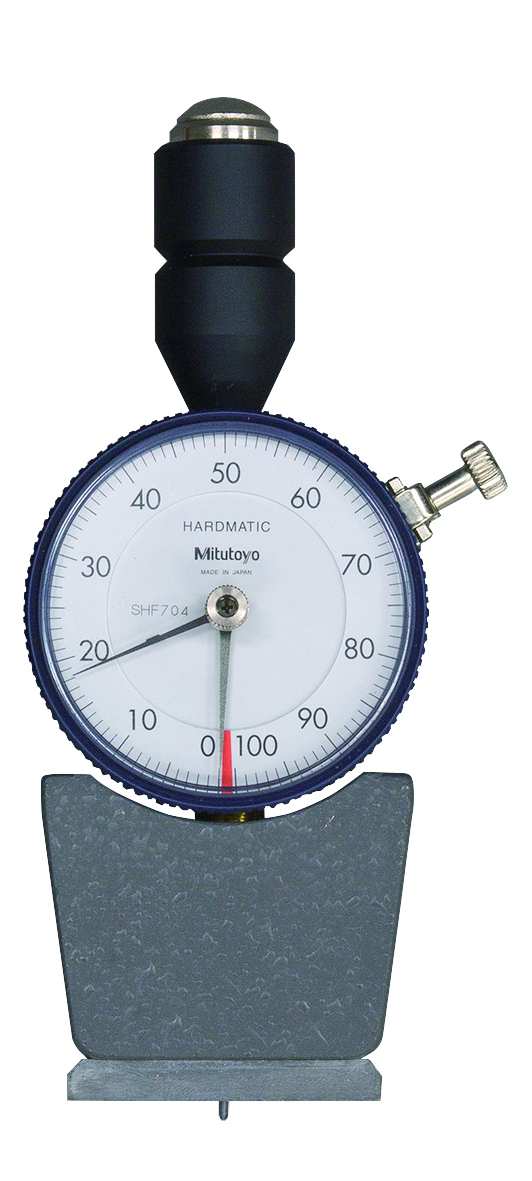

811-335-10 HH-335 Durometer Type A Compact/Analogue Shore A Durometer HH-300 Series 44 x 18 mm
811-335-10 HH-335 Durometer Type A Compact/Analogue Shore A Durometer HH-300 Series 44 x 18 mm
Roll over image to zoom in Click on image to zoom
811-335-10 HH-335 Durometer Type A Compact/Analogue Shore A Durometer HH-300 Series 44 x 18 mm811-335-10 HH-335 Durometer Type A Compact/Analogue Shore A Durometer HH-300 Series 44 x 18 mm

811-335-10 HH-335 Durometer Type A Compact/Analogue Shore A Durometer HH-300 Series 44 x 18 mm

MitutoyoSKU: 811-335-10
List price: £781.00 Offer price: £687.28 Excluding VAT
These compact dial durometers in the Shore A scale can test a range of different materials and offer you the following benefits:
  • You can use them for testing the hardness of the materials including soft rubber, elastomers, natural rubber, casting resin, neoprene, polyesters, soft PVC, leather, etc.

Specification
Model:
HH-335
Shore Scale:
Shore A
Display:
Analog Dial
Indenter b:
ø 1,25 mm
Indenter d:
ø 0,79 mm
?:
35°
Pressure foot a:
ø 3 mm
Pressure foot f:
44 x 18 mm
Indenter protrusion:
2,5 mm
Spring force
WE, WA, WD:
WA=550+75 HA [mN]
Dimensions (WxDxH):
146x68x34 mm
Mass:
0.3 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 811-335-10 HH-335 Durometer Type A Compact/Analogue Shore A Durometer HH-300 Series 44 x 18 mm Click to open the PDF document
