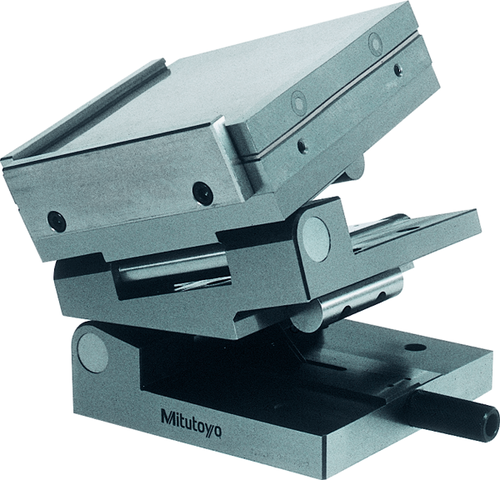

930-629 Compound Precision Sine Plate 150x150mm, Magnetic Type

Roll over image to zoom in Click on image to zoom

930-629 Compound Precision Sine Plate 150x150mm, Magnetic Type

Name: 930-629 Compound Precision Sine Plate 150x150mm, Magnetic Type
Brand: Mitutoyo
SKU: 930-629
Price: 7340.0 GBP
Availability: InStock

MitutoyoSKU: 930-629

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£7,340.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Sine bar style of auxiliary plate.
It is made of tool steel, hardened and precision ground.
Accurate angle setting is made by gauge blocks, max. 45°.
930-626 Work piece can be fixed on plate surface by tap holes and stoppers on side.
930-628 and 930-629 can set the angle at two directions which go straight angularly.
930-629 Permanently magnet chuck is adapted.

Parallelism:	0.002 mm / 100 mm
Squareness:	0.005 mm / 100 mm
Remarks:	Coumpound-axis type With lever-operated magnetic chuck
Delivered:	In a carton box
Setting accuracy at 45°:	±15"
Mass:	16.5 kg
