ABS Digital Thickness Gauge with ID-S Inch/Metric, 0-0,47", 0,0005", Standard 547-500S
ABS Digital Thickness Gauge with ID-S Inch/Metric, 0-0,47", 0,0005", Standard 547-500S
ABS Digital Thickness Gauge with ID-S Inch/Metric, 0-0,47", 0,0005", Standard 547-500S
Roll over image to zoom in Click on image to zoom
ABS Digital Thickness Gauge with ID-S Inch/Metric, 0-0,47", 0,0005", Standard 547-500SABS Digital Thickness Gauge with ID-S Inch/Metric, 0-0,47", 0,0005", Standard 547-500SABS Digital Thickness Gauge with ID-S Inch/Metric, 0-0,47", 0,0005", Standard 547-500S

ABS Digital Thickness Gauge with ID-S Inch/Metric, 0-0,47", 0,0005", Standard 547-500S

MitutoyoSKU: 547-500S
List price: £392.00 Offer price: £286.00 Excluding VAT

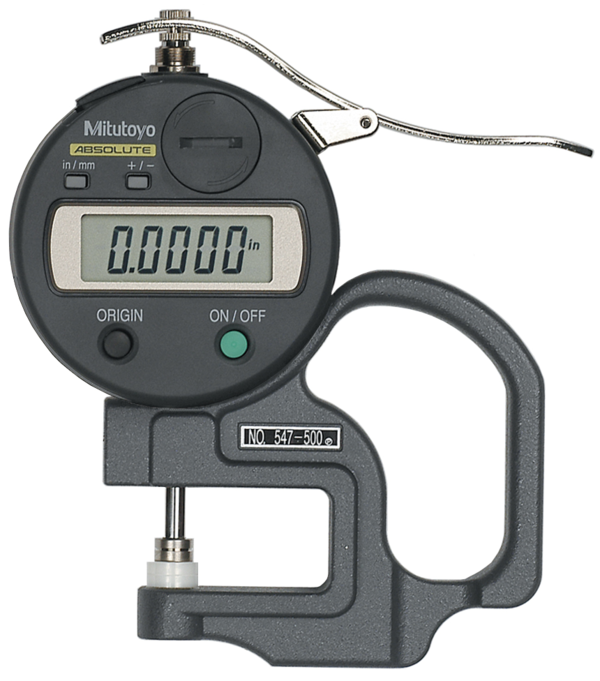

This ABSOLUTE Digimatic Thickness Gauge is equipped with the standard and cost effective model of a digital indicator.

It enables you to measure film, paper, etc. with flat contact points and tube wall thickness.

  • Monodirectional communication via Digimatic data output.

Features

Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
In a box with SR44 battery, spindle lifting lever 21AZB149
Range:
0~0.47 " / 0~12 mm
Type:
With digital indicator with 3/8" stem refer to ANSI/AGD
Digital step:
0,0005"/0,01 mm
Parallelism:
0,0005"
Indicator No.:
ID-S No. 543-783BS (ANSI/AGD type)
Max. measuring depth:
30 mm
Max. response speed:
Unlimited
Alarm:
Low voltage, counting value composition error, overflow error
Contact point:
Thread # 4-48UNF
Power supply:
1 battery SR-44
Battery life:
Approx. 7000 hours
ON/OFF:
Yes
Inch/Metric switchable:
Yes
Mass:
225 g

No technical information is currently available.

No application information is currently available.

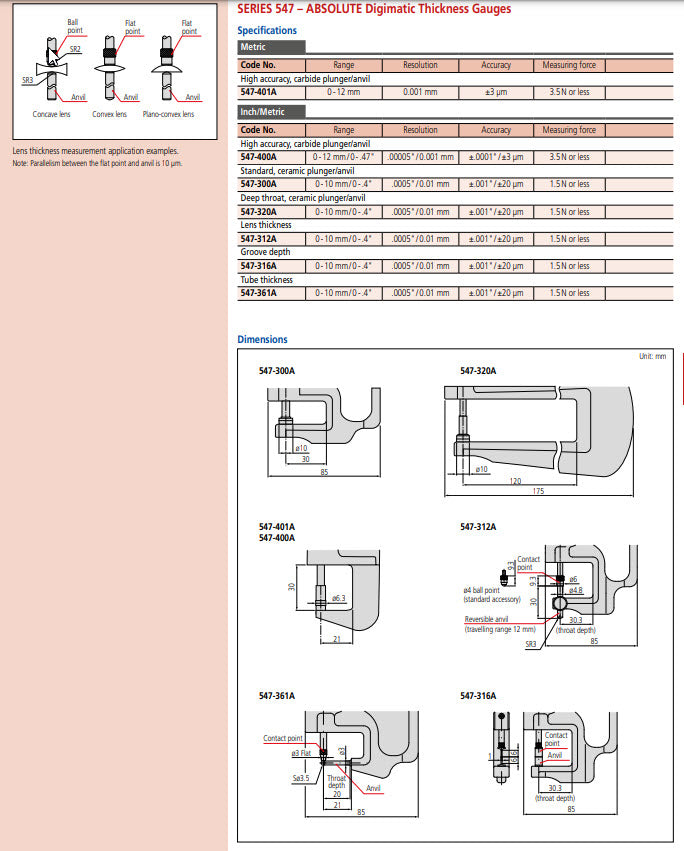

Product Documents

Product Document 1 ABS Digital Thickness Gauge with ID-S Inch/Metric, 0-0,47", 0,0005", Standard 547-500S Click to open the PDF document
Product Document 2 ABS Digital Thickness Gauge with ID-S Inch/Metric, 0-0,47", 0,0005", Standard 547-500S Click to open the PDF document
