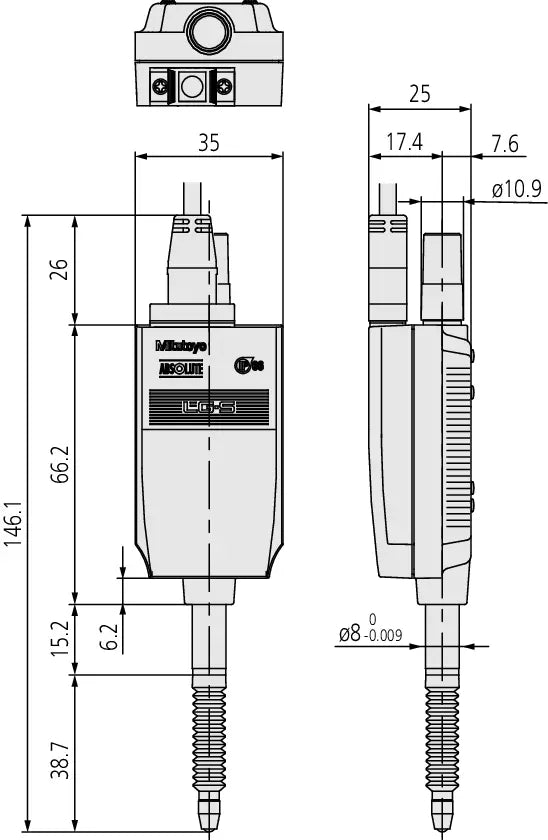

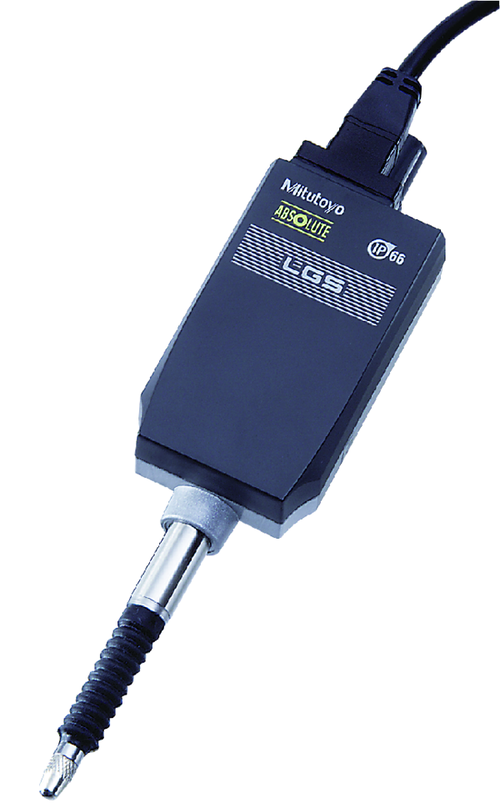

ABSOLUTE Digimatic Linear Gauge LGS-1012P, 12,7 mm, 0,01 mm, Counting positive 575-303

MitutoyoSKU: 575-303
List price: £231.00 Offer price: £169.00 Excluding VAT
The LGS is a compact ABS linear gauge that offers you the following benefits:
  • Its ABSOLUTE Digimatic data output and IP-66 protection class give you best-of-breed technology.

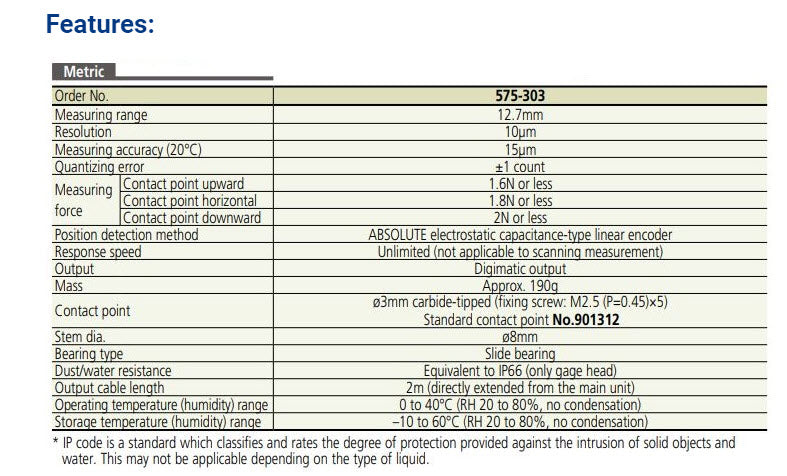

Specification
Inch-Metric:
Metric
Accuracy:
15 µm
Measuring force:
2 N with spindle down, 1.8 N spindle horizontal, 1.6 N spindle upwards
Scale:
Capacitance-type ABSOLUTE linear encoder
Stem ?:
8 mm
Max. response speed:
1600 mm/s;
(measuring by scanning not possible) mm/s
Contact point:
Ø3 mm carbide
Cable length:
2 m
Power supply:
5 to 10 V (5 mA max.)
Max. response speed:
Unlimited (measuring by scanning cannot be performed)
Output signal:
Digimatic output
Environmental conditions:
0 °C to 40 °C (20 % to 80 % rel. humidity, no condensation) °C
Bearing type:
Slide bearing
Direction of
counting:
positive
Mass:
190 g (included cable)
Digital step:
0,01 mm

No technical information is currently available.

No application information is currently available.

No videos or documents are currently available.
