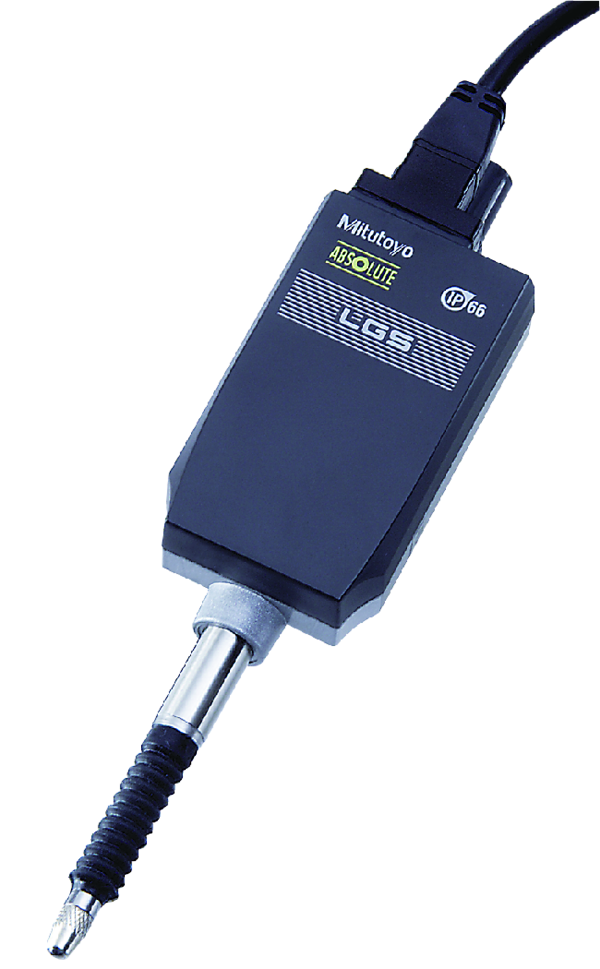

ABSOLUTE Digimatic Linear Gauge LGS-1012P, .5", 0,0005", Counting positive 575-313

Roll over image to zoom in Click on image to zoom

ABSOLUTE Digimatic Linear Gauge LGS-1012P, .5", 0,0005", Counting positive 575-313

Name: ABSOLUTE Digimatic Linear Gauge LGS-1012P, .5", 0,0005", Counting positive 575-313
Brand: Mitutoyo
SKU: 575-313
Price: 164.0 GBP
Availability: InStock

MitutoyoSKU: 575-313

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£164.00 £224.00

Quantity:

All prices exclude VAT, which will be added at checkout.

The LGS is a compact ABS linear gauge that offers you the following benefits:

Its ABSOLUTE Digimatic data output and IP-66 protection class give you best-of-breed technology.

Product Information
Part Number	575-313
Resolution	.0005"
Accuracy	.0008"
Unit of Measurement	Inch
IP Rating	IP66
Measuring Force	≤2N
Detection Method	Capacitance absolute linear encoder
Maximum Response Speed	Unlimited
Stem	9.52mm/3/8"
Manufacturer	Mitutoyo

Inch-Metric:	Inch
Accuracy:	0.0008"
Measuring force:	2 N with spindle down, 1.8 N spindle horizontal, 1.6 N spindle upwards
Scale:	Capacitance-type ABSOLUTE linear encoder
Stem ∅:	3/8"
Max. response speed:	1600 mm/s; (measuring by scanning not possible) mm/s
Contact point:	Ø3 mm carbide
Cable length:	2 m
Power supply:	5 to 10 V (5 mA max.)
Max. response speed:	Unlimited (measuring by scanning cannot be performed)
Output signal:	Digimatic output
Environmental conditions:	0 °C to 40 °C (20 % to 80 % rel. humidity, no condensation) °C
Bearing type:	Slide bearing
Functions:	Ansi/AGD
Mass:	190 g (included cable)
Digital step:	0,01 mm
