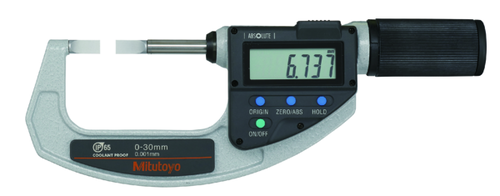

Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20
Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20
Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20
Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20
Roll over image to zoom in Click on image to zoom
Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20

Mitutoyo Absolute Digital Blade Micrometer QuickMike IP65 0-30mm 422-411-20

MitutoyoSKU: 422-411-20
List price: £678.00 Offer price: £495.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£12.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This ABSOLUTE Digimatic Blade Micrometer Quickmike is designed to help you measure hard-to-reach features. It offers the following benefits:
  • Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
  • Non-rotating spindle
  • Fast spindle feed of 10 mm/revolution
Features
Digital/Analog:
Digital
Delivered:
Including box, 1 SR44 battery
Inch-Metric:
Metric
Range:
0 - 30 mm
Digital step:
0,001 mm
Max.
Permissible Error
J MPE:
±3 µm
Parallelism:
3 µm
Display:
LCD, character height 10 mm
Measuring face:
Carbide-tipped or hardened steel spindle and anvil
Anvil / Spindle:
Type A, hardened steel t=0.75 mm
Measuring spindle:
ø6,35 mm, non-rotating, spindle feed 10 mm
Measuring force:
5 - 12 N
Power supply:
1 battery SR-44
Battery life:
Approx. 5 years
ON/OFF:
Yes
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Low voltage alarm:
Yes
HOLD:
Yes
Mass:
350 g

No technical information is currently available.

No application information is currently available.
