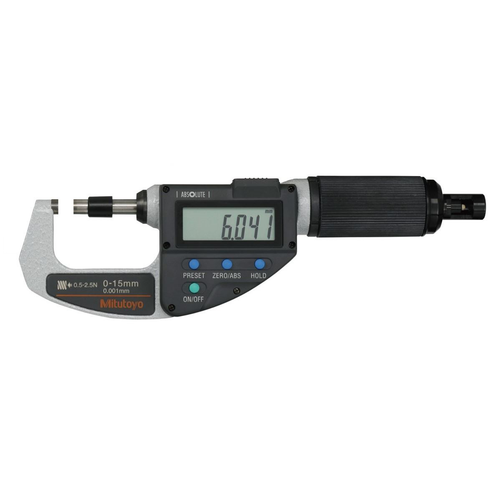

Name: Mitutoyo Absolute Digital Micrometer, Adjust. Force Inch/Metric, 0-0,6", 0,5-2,5N 227-211-20
Brand: Mitutoyo
SKU: 227-211-20
Price: 712.0 GBP
Availability: InStock

Mitutoyo Absolute Digital Micrometer, Adjust. Force Inch/Metric, 0-0,6", 0,5-2,5N 227-211-20

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

This Quickmike has an adjustable measuring force to suit various kinds of
workpieces.
The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits:

It‘s dedicated to applications requiring a constant/low measuring force such as measuring wire, paper and plastic/rubber parts.
Constant and low measuring force mechanism in the thimble.
Non-rotating spindle.
Speedy spindle feed of 10 mm per thimble rotation.

Features

Digital/Analog:	Digital
Delivered:	Including box, setting standard, screwdriver, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	0 - 0.6 "
Digital step:	0.00005"/0.001 mm
Max. Permissible Error J MPE:	±0.0001"
Flatness:	0.000012"
Parallelism:	0.00008"
Display:	LCD, character height 10 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	ø6.35 mm, non-rotating, spindle feed 10 mm
Measuring force settings:	0.5; 1; 1.5; 2; 2.5 N
Measuring force accuracy ⁽¹⁾:	±0.1 + (force setting/10) N
Power supply:	1 battery SR-44
Battery life:	Approx. 5 years
Delivered:	Including box, setting standard (for 10-20, 15-30, 20-30 mm models), screwdriver, 1 battery
ON/OFF:	Yes
ABS / INC (INC ZERO):	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
PRESET:	Yes
Mass:	300 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Absolute Digital Micrometer, Adjust. Force Inch/Metric, 0-0,6", 0,5-2,5N 227-211-20 Click to open the PDF document
