Mitutoyo Absolute Digital Micrometer, Adjust. Force Inch/Metric, 15-30mm/.6-1.2", 0,5-2,5N 227-213-20

Roll over image to zoom in Click on image to zoom

Mitutoyo Absolute Digital Micrometer, Adjust. Force Inch/Metric, 15-30mm/.6-1.2", 0,5-2,5N 227-213-20

Name: Mitutoyo Absolute Digital Micrometer, Adjust. Force Inch/Metric, 15-30mm/.6-1.2", 0,5-2,5N 227-213-20
Brand: Mitutoyo
SKU: 227-213-20
Price: 759.0 GBP
Availability: InStock

MitutoyoSKU: 227-213-20

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£759.00 £1,040.00

Quantity:

All prices exclude VAT, which will be added at checkout.

This Quickmike has an adjustable measuring force to suit various kinds of
workpieces.
The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits:

It‘s dedicated to applications requiring a constant/low measuring force such as measuring wire, paper and plastic/rubber parts.

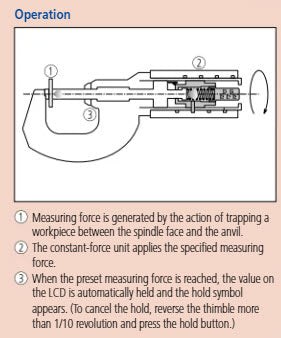

Constant and low measuring force mechanism in the thimble.
Non-rotating spindle.
Speedy spindle feed of 10 mm per thimble rotation.

Features

Digital/Analog:	Digital
Delivered:	Including box, setting standard, screwdriver, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	0.6 - 1.2 "
Digital step:	0.00005"/0.001 mm
Max. Permissible Error J MPE:	±0.0001"
Flatness:	0.000012"
Parallelism:	0.00008"
Display:	LCD, character height 10 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	ø6.35 mm, non-rotating, spindle feed 10 mm
Measuring force settings:	0.5; 1; 1.5; 2; 2.5 N
Measuring force accuracy ⁽¹⁾:	±0.1 + (force setting/10) N
Power supply:	1 battery SR-44
Battery life:	Approx. 5 years
Delivered:	Including box, setting standard (for 10-20, 15-30, 20-30 mm models), screwdriver, 1 battery
ON/OFF:	Yes
ABS / INC (INC ZERO):	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
PRESET:	Yes
Mass:	380 g

Product Information
Part Number	227-213-20
Measuring Ranges	15-30mm
Resolution	.0001mm/.000005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	None
Type	Standard
Constant Force Device	Ratchet Friction
Flatness	0.0003mm/ 0.000012"
Parallelism	.002mm/.00008"
Manufacturer	Mitutoyo
