Mitutoyo Absolute Digital Micrometer, Adjust. Force Inch/Metric, Range 20-30mm/.8-1.2" 2-10N 227-217-20

Roll over image to zoom in Click on image to zoom

Mitutoyo Absolute Digital Micrometer, Adjust. Force Inch/Metric, Range 20-30mm/.8-1.2" 2-10N 227-217-20

Name: Mitutoyo Absolute Digital Micrometer, Adjust. Force Inch/Metric, Range 20-30mm/.8-1.2" 2-10N 227-217-20
Brand: Mitutoyo
SKU: 227-217-20
Price: 770.0 GBP
Availability: InStock

MitutoyoSKU: 227-217-20

All prices exclude VAT, which will be added at checkout.

Price:

£770.00 £1,100.00

Quantity:

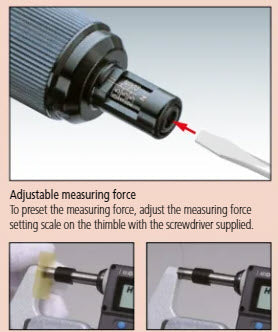

This Quickmike has an adjustable measuring force to suit various kinds of
workpieces.
The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits:

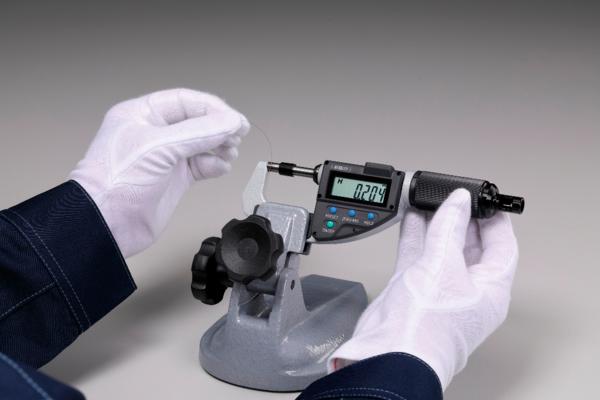

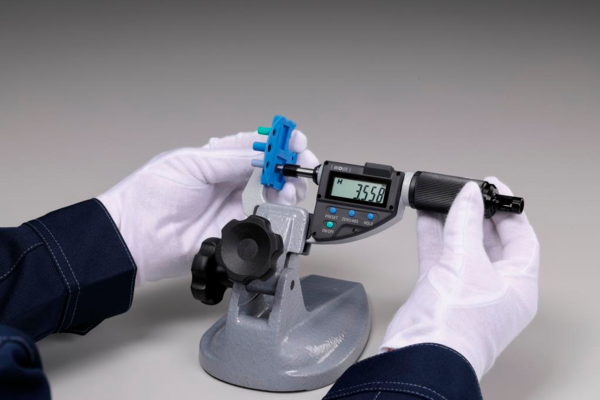

It‘s dedicated to applications requiring a constant/low measuring force such as measuring wire, paper and plastic/rubber parts.
Constant and low measuring force mechanism in the thimble.
Non-rotating spindle.
Speedy spindle feed of 10 mm per thimble rotation.

Features

Digital/Analog:	Digital
Delivered:	Including box, setting standard, screwdriver, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	0.8 - 1.2 "
Digital step:	0.00005"/0.001 mm
Max. Permissible Error J MPE:	±0.0001"
Flatness:	0.000012"
Parallelism:	0.00008"
Display:	LCD, character height 10 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	ø6.35 mm, non-rotating, spindle feed 10 mm
Measuring force settings:	2; 4; 6; 8; 10 N
Measuring force accuracy ⁽¹⁾:	±0.4 + (force setting/10) N
Power supply:	1 battery SR-44
Battery life:	Approx. 5 years
Delivered:	Including box, setting standard (for 10-20, 15-30, 20-30 mm models), screwdriver, 1 battery
ON/OFF:	Yes
ABS / INC (INC ZERO):	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
PRESET:	Yes
Mass:	415 g

Product Information
Part Number	227-217-20
Measuring Range	20-30mm
Resolution	.0001mm/.000005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	None
Type	Standard
Constant Force Device	Ratchet Friction
Flatness	0.0003mm/ 0.000012"
Parallelism	.002mm/.00008"
Calibration Code	CAL1 B1
Resolution/Capacity	.0001mm/.000005"
