Specification:

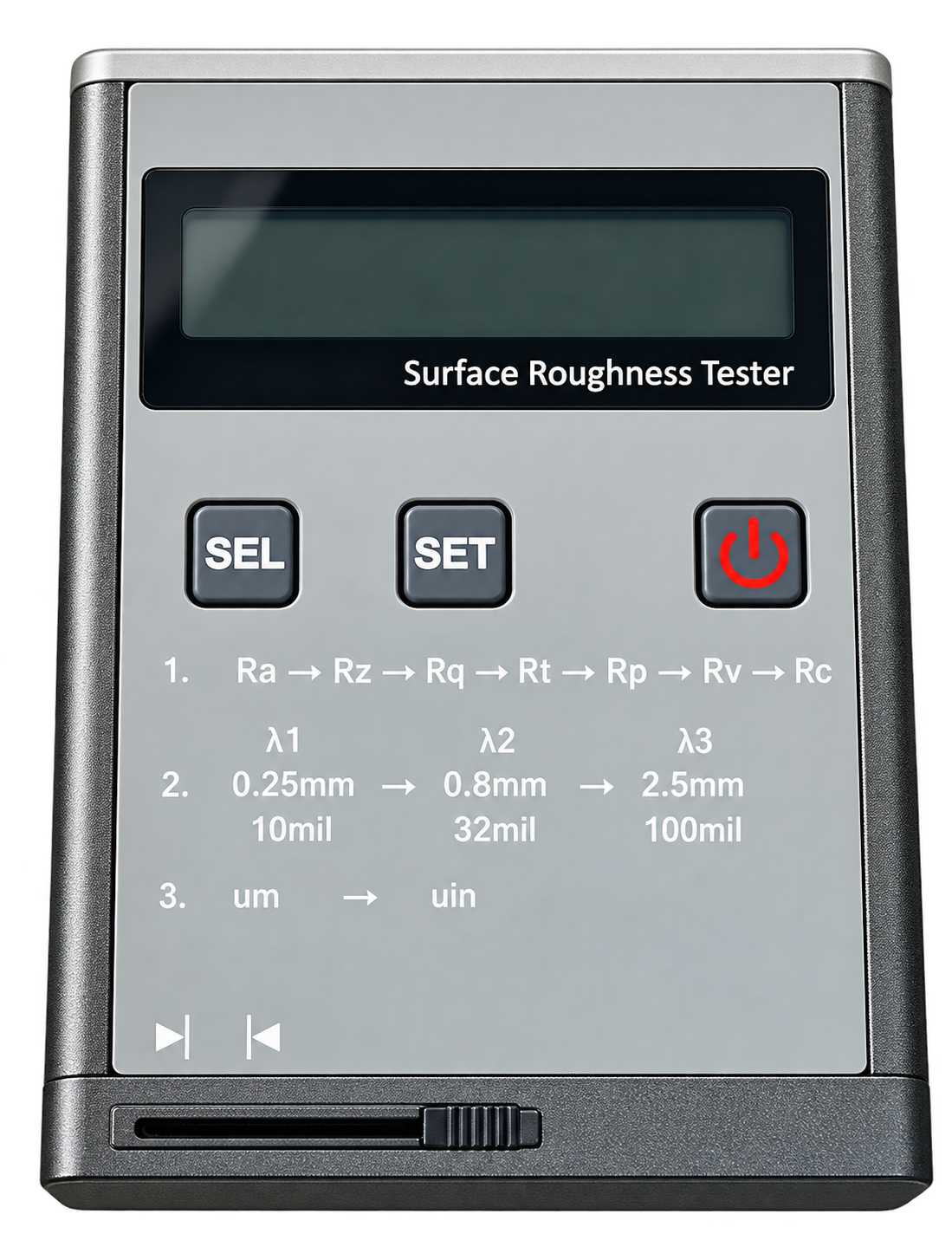

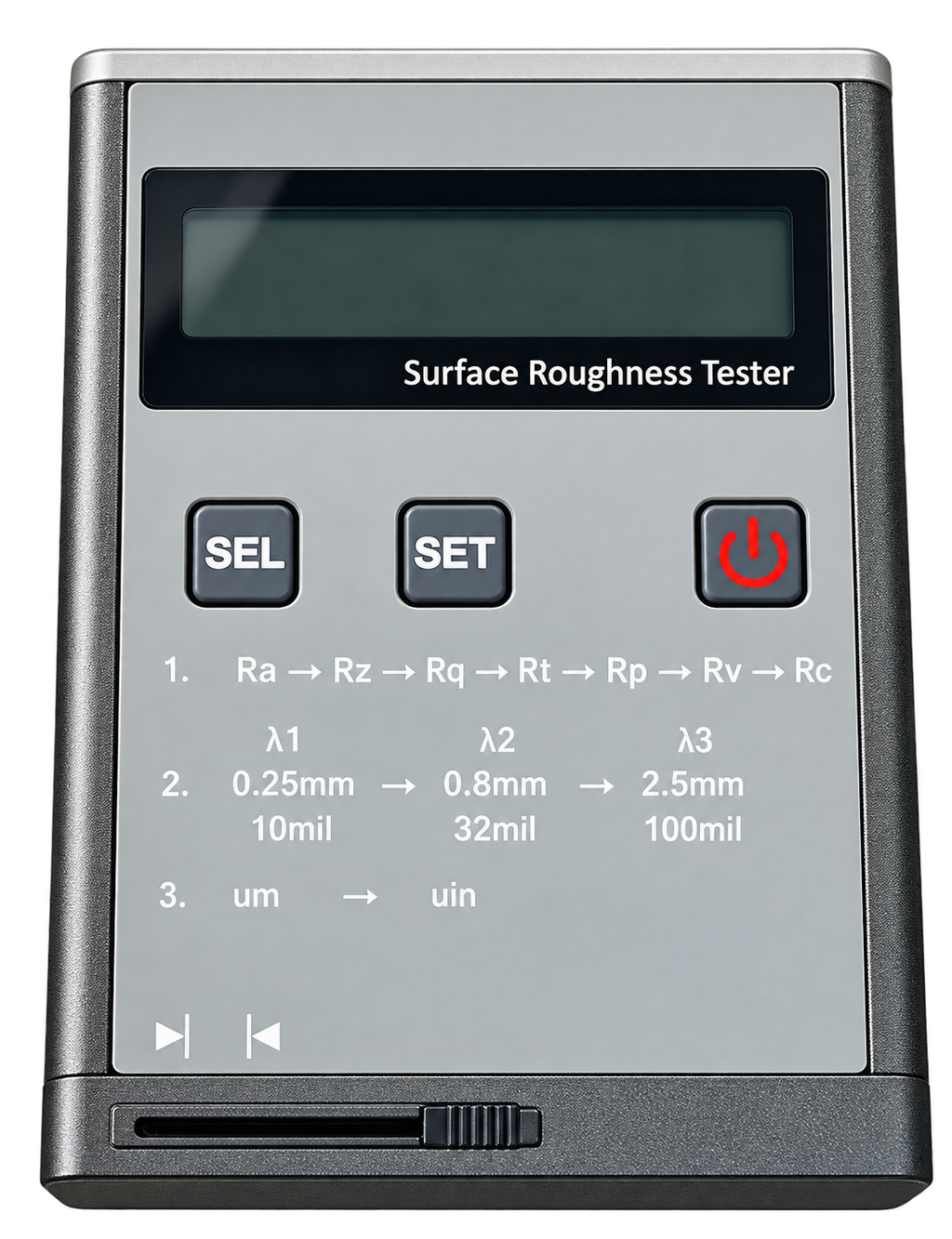

Parameters Ra, Rz, Rq, Rt, Rp, Rv, Rc
Range ±80um
Display Accuracy ±10%
Indication variability ≤6%
Resolution 0.01um
Probe Type Inductive
Stylus radius/angle 5um
Stylus material Diamond
Measuring Force 4mN(0.4gf)
Measuring Unit Um/uin
Sensor Angle 90 degree
Longitudinal radius of guide head 45mm
Max. Driving Length 6mm
Traverse speed λ 1: cut off =0.25mm, Vt=0.135mm/s
λ2:cut off =0.8mm, Vt=0.5mm/s
λ3: cut off =2.5mm, Vt=1mm/s
Power Built-in Rechargeable battery

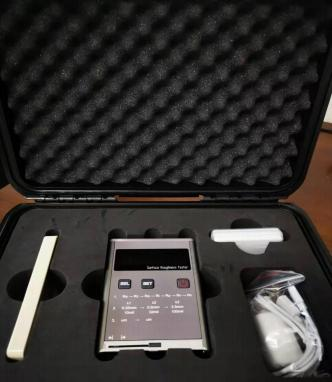

Standard Delivery

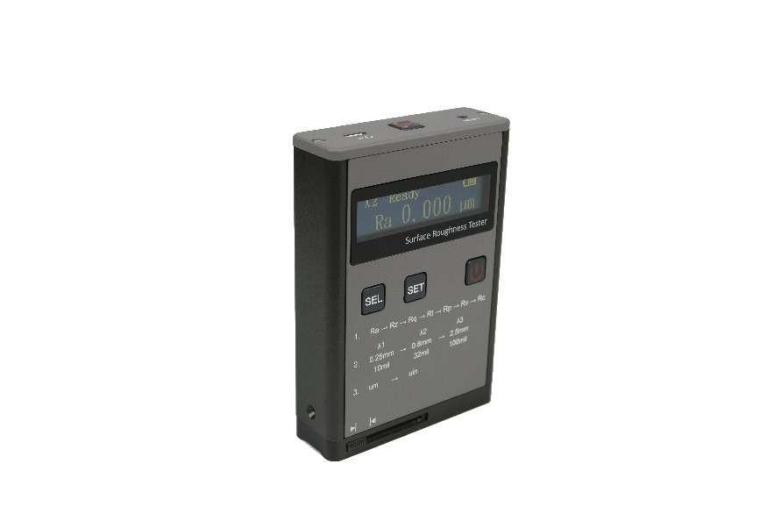

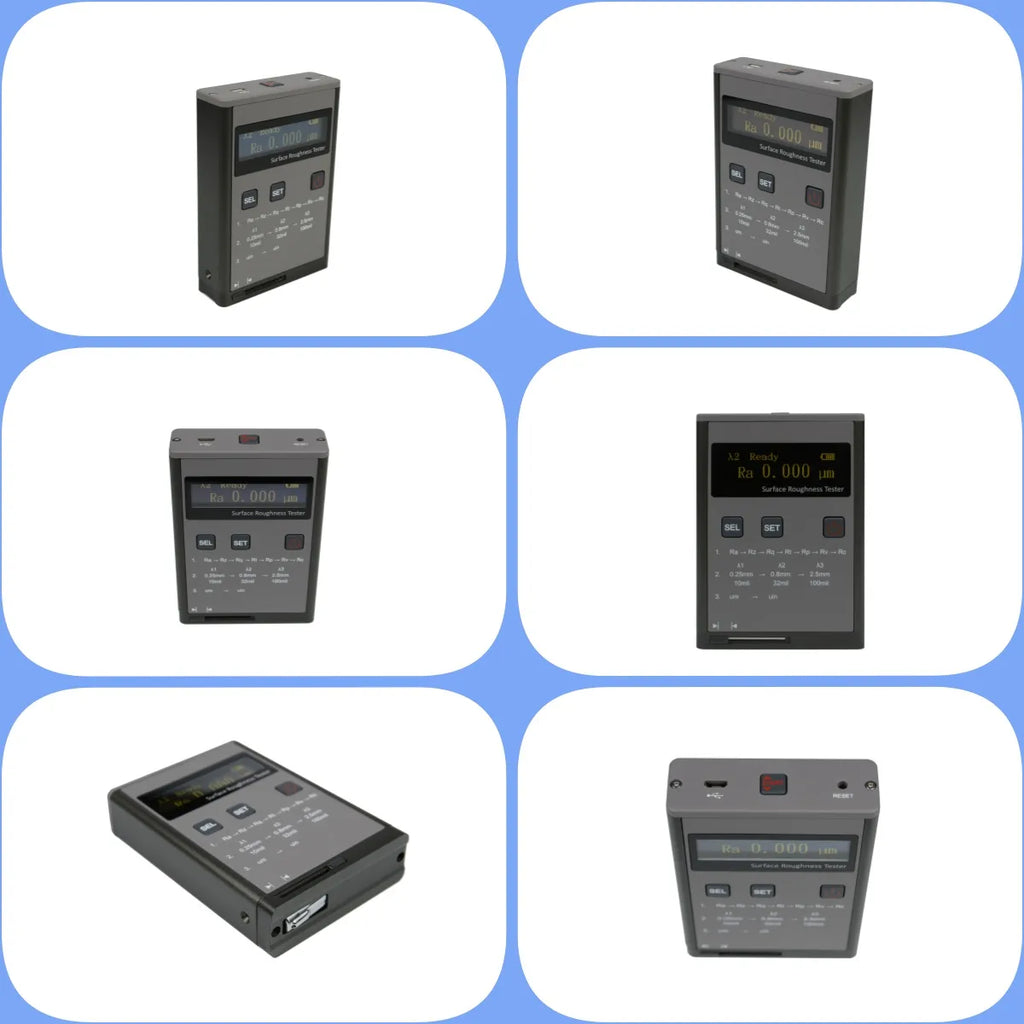

Main unit x 1

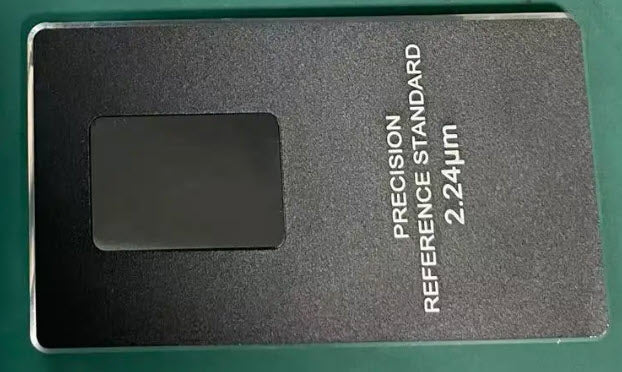

Calibration block x 1
AD/DC adapter and data line x 1

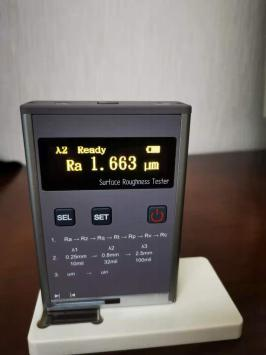

Testing support board x1
