This message only appears in theme editor.Welcome to MQS-Shop, your one-stop online store for metrology products and a UKAS accredited calibration laboratory No. 0373.
We have independent researched and developed the whole series production of sensors.The surface sensor is designed with annular guide head. The sensors can measure the complex condition of work piece surface.
|
Item
|
Description
|
|
Principle
|
Electric Inductor Type
|
|
Range
|
160um
|
|
Stylus Radius
|
5um
|
|
Stylus Material
|
Diamond
|
|
Contact Force
|
4Mn(0.4gf)
|
|
Stylus Angle
|
90°
|
|
GUIDE VERTICAL RADIUS SPECIFICATION
|
45mm
|
|
Item
|
Description
|
|
Max.Drive Travel Length
|
17.5mm/0.7inch
|
|
Error
|
<±10%
|
|
Result Variation
|
< 6%
|
|
Measuring Profile
|
Roughness，Waviness，Primitive Profile
|
|
Parameters
|
Ra (0.005um~16um), Rz (0.02um~160um)
Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr |
|
Filter
|
RC, PCRC, Gauss, ISO13565
|
|
Sampling Length (L)
|
0.25mm, 0.8mm, 2.5mm, 8mm
|
|
Evaluation Length (L)
|
（1-5）I
|
|
Data Storage Capacity
|
2M+2G Byte
|
|
Communication/Interface
|
USB2.0
|
|
Power
|
Built-in Li-ion Battery, USB charging
|
|
Dimensions
|
140mm*55mm*47mm
|
|
Size
|
400g
|
|
Product name |
quantity |
Product name |
quantity |
|
host |
1 |
RS100 standard sensor |
1 |
|
Multi-cut boilerplate |
1 |
Power adapter |
1 |
|
Sensor housing |
1 |
bracket |
1 |
|
Test the pad |
1 |
U disk (with software) |
1 |
|
Instructions |
1 |
Packing slip |
1 |
|
Certificate |
1 |
Warranty card |
1 |
Optional accessories：
|
name |
Model |
name |
Model |
|
Standard sensors |
TS100 |
Curved sensors |
TS110 |
|
Small hole sensor |
TS120 |
Trench sensor |
TS130 |
|
Deep groove sensor |
TS131 |

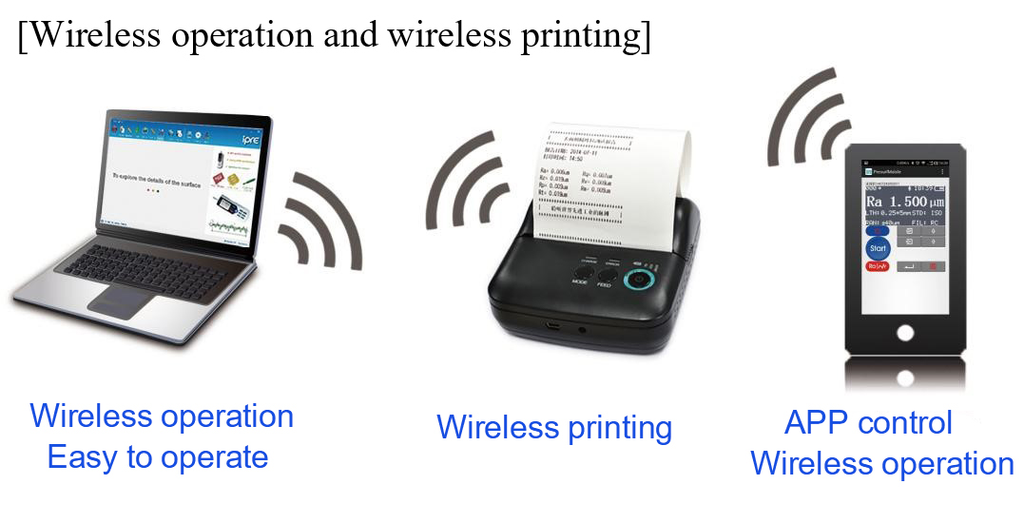

PC synchronous operation software |
Presurf-10 |
|
Measurement platform |
PRTA620 |
Wireless printers |
PRT100、PRT200、PRT300 |
