Description

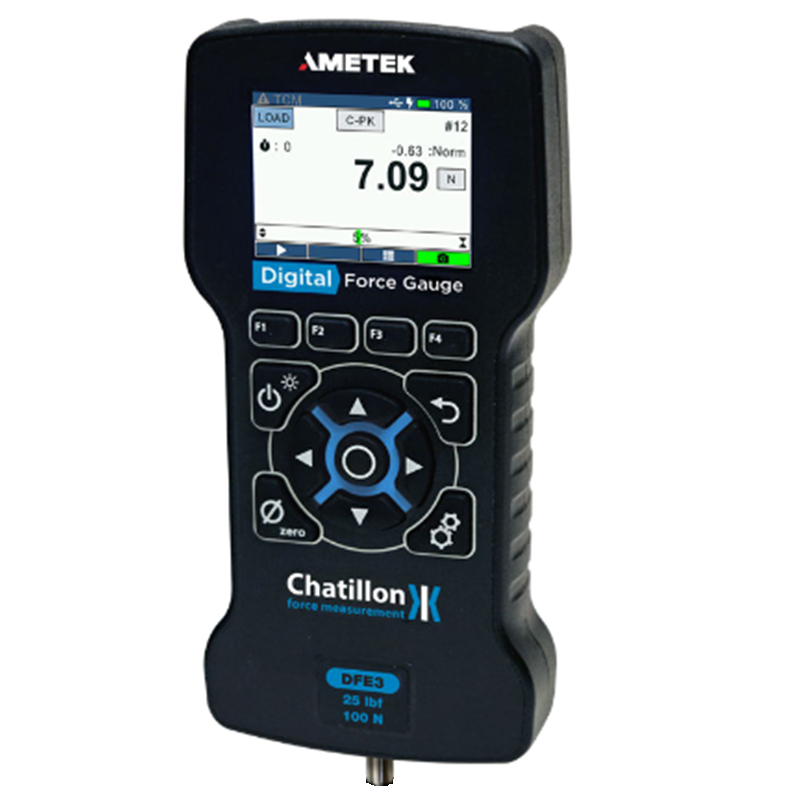

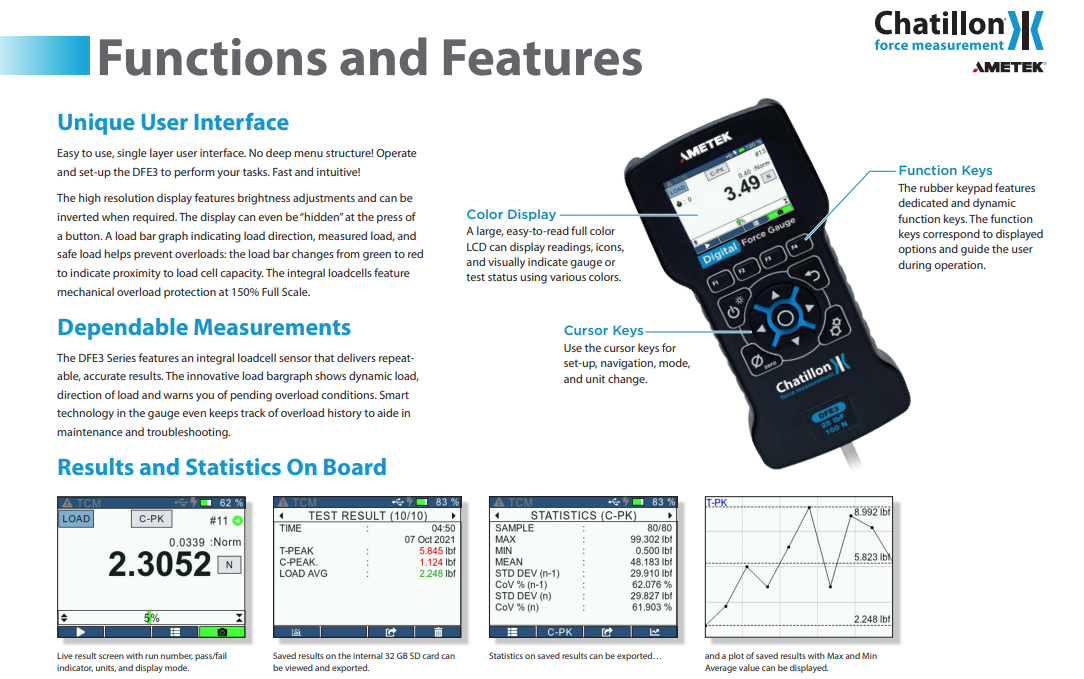

Unique User Interface Easy to use, single layer user interface. No deep menu structure! Operate and set-up the DFE3 to perform your tasks. Fast and intuitive! The high resolution display features brightness adjustments and can be inverted when required. The display can even be "hidden" at the press of a button. A load bar graph indicating load direction, measured load, and safe load helps prevent overloads: the load bar changes from green to red to indicate proximity to load cell capacity. The integral loadcells feature mechanical overload protection at 150% Full Scale.

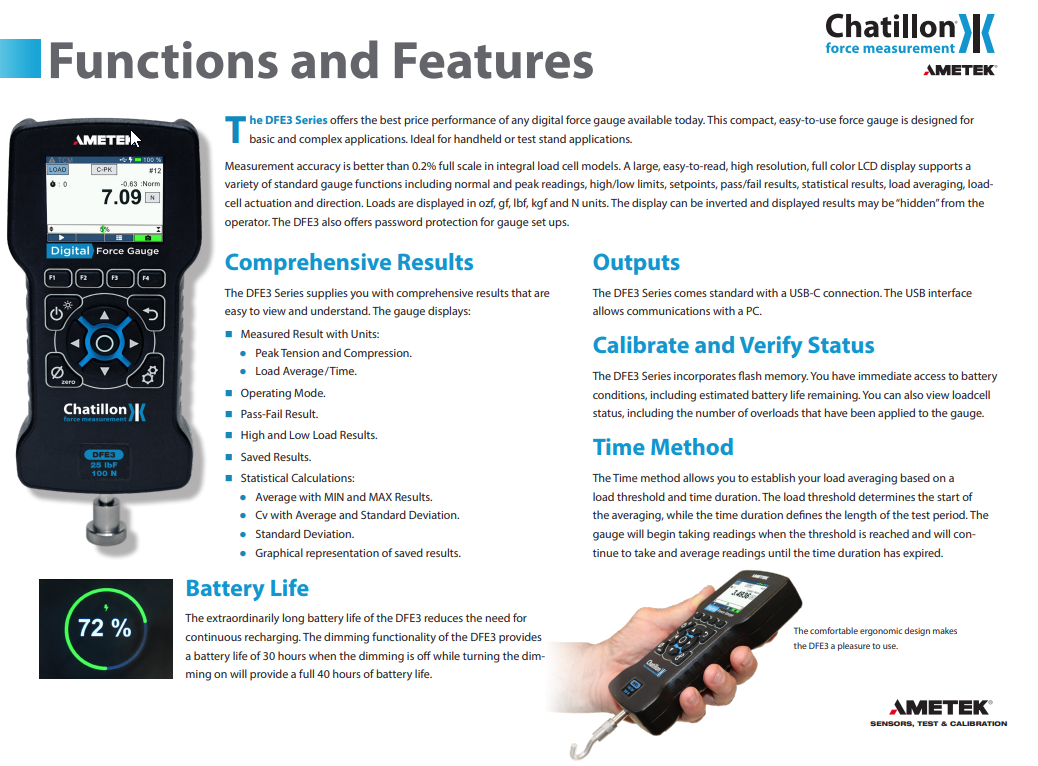

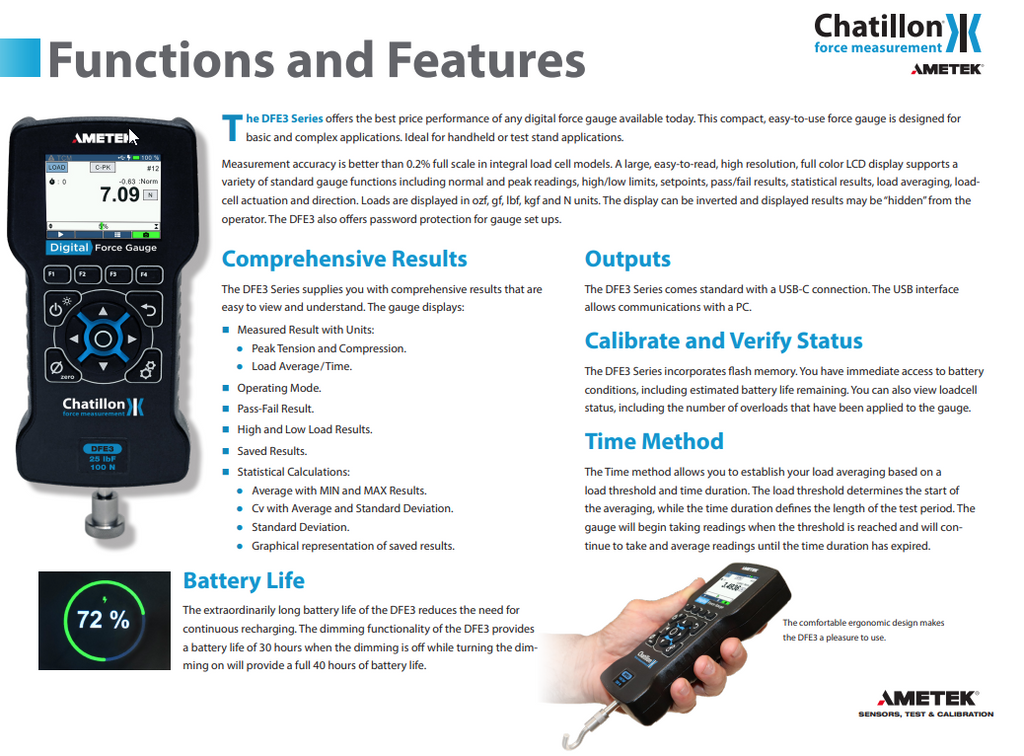

Dependable Measurements The DFE3 Series features an integral loadcell sensor that delivers repeatable, accurate results. The innovative load bargraph shows dynamic load, direction of load and warns you of pending overload conditions. Smart technology in the gauge even keeps track of overload history to aide in maintenance and troubleshooting.

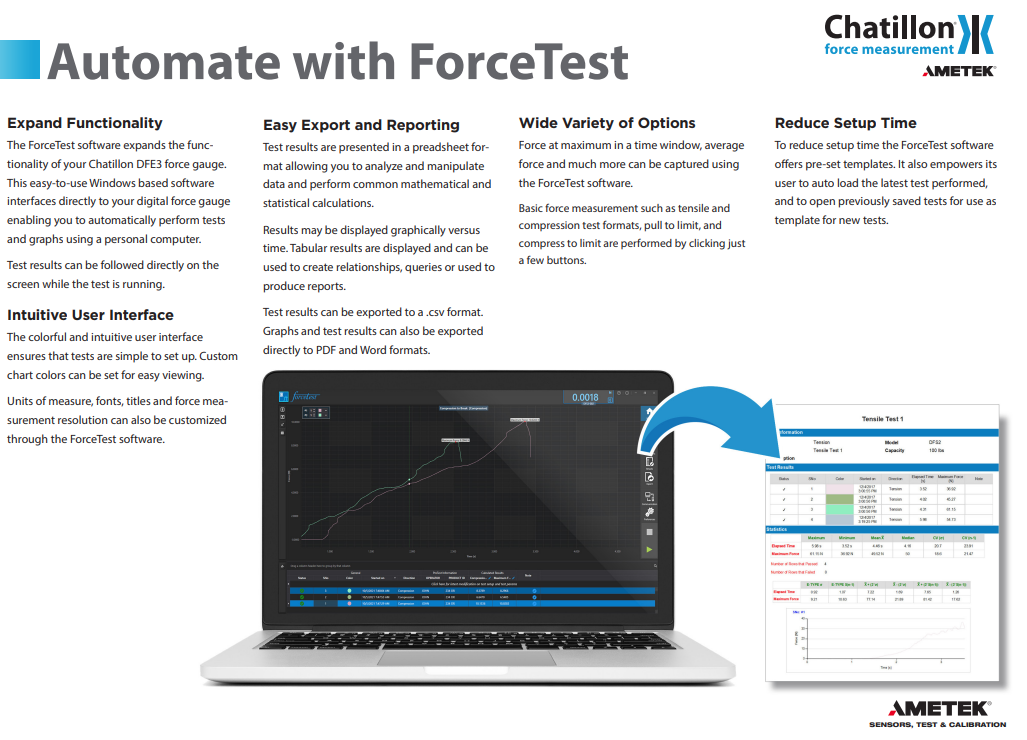

Automate with ForceTest (Free with your Chatillon DFE3)
- Expand Functionality - The ForceTest software expands the functionality of your Chatillon DFE3 force gauge. This easy-to-use Windows based software interfaces directly to your digital force gauge enabling you to automatically perform tests and graphs using a personal computer. Test results can be followed directly on the screen while the test is running.
- Intuitive User Interface - The colorful and intuitive user interface ensures that tests are simple to set up. Custom chart colors can be set for easy viewing. Units of measure, fonts, titles and force measurement resolution can also be customized through the ForceTest software.
- Easy Export and Reporting - Test results are presented in a spreadsheet format allowing you to analyze and manipulate data and perform common mathematical and statistical calculations. Results may be displayed graphically versus time. Tabular results are displayed and can be used to create relationships, queries or used to produce reports. Test results can be exported to a .csv format. Graphs and test results can also be exported directly to PDF and Word formats.
- Wide Variety of Options - Force at maximum in a time window, average force and much more can be captured using the ForceTest software. Basic force measurement such as tensile and compression test formats, pull to limit, and compress to limit are performed by clicking just a few buttons.
- Reduce Setup Time - To reduce setup time the ForceTest software offers pre-set templates. It also empowers its user to auto load the latest test performed, and to open previously saved tests for use as template for new tests.
Accessories

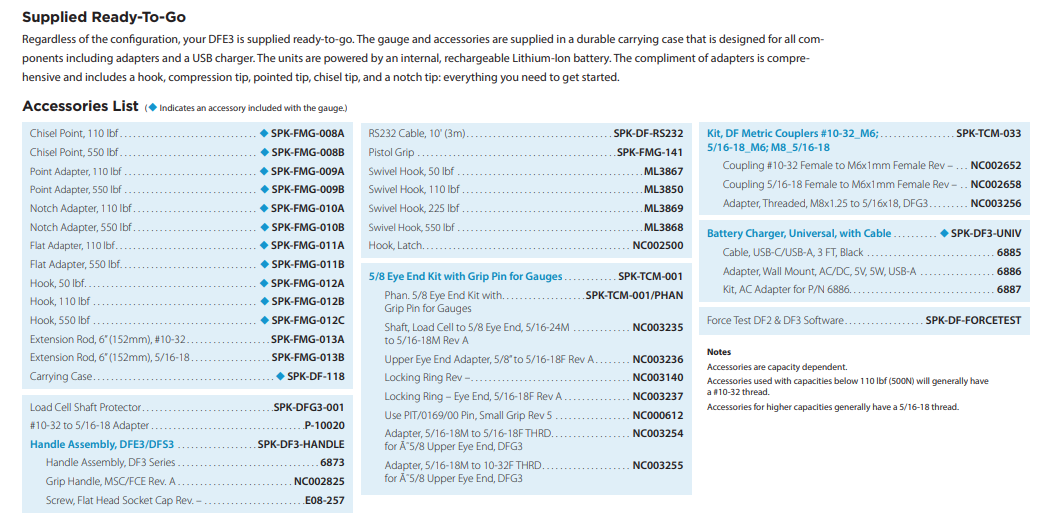

Supplied Ready-To-Go Regardless of the configuration, your DFE3 is supplied ready-to-go. The gauge and accessories are supplied in a durable carrying case that is designed for all components including adapters and a USB charger. The units are powered by an internal, rechargeable Lithium-Ion battery. The compliment of adapters is comprehensive and includes a hook, compression tip, pointed tip, chisel tip, and a notch tip: everything you need to get started.
Included Accessories List- Chisel Point, 110 lbf. SPK-FMG-008A
- Chisel Point, 550 lbf. SPK-FMG-008B
- Point Adapter, 110 lbf. SPK-FMG-009A
- Point Adapter, 550 lbf. SPK-FMG-009B
- Notch Adapter, 110 lbf. SPK-FMG-010A
- Notch Adapter, 550 lbf. SPK-FMG-010B
- Flat Adapter, 110 lbf. SPK-FMG-011A
- Flat Adapter, 550 lbf. SPK-FMG-011B
- Hook, 50 lbf. SPK-FMG-012A
- Hook, 110 lbf .SPK-FMG-012B
- Hook, 550 lbf .SPK-FMG-012C
- Carrying Case. SPK-DF-118
