Kroeplin Analogue Tube Wall Caliper Gauge 0-50mm, 0.05mm D4R50S Measuring Contact: Carbide ball ø3mm / bevel, radius 0.75mm ( Mitutoyo equivalent 209-922)

Roll over image to zoom in Click on image to zoom

Kroeplin Analogue Tube Wall Caliper Gauge 0-50mm, 0.05mm D4R50S Measuring Contact: Carbide ball ø3mm / bevel, radius 0.75mm ( Mitutoyo equivalent 209-922)

Name: Kroeplin Analogue Tube Wall Caliper Gauge 0-50mm, 0.05mm D4R50S Measuring Contact: Carbide ball ø3mm / bevel, radius 0.75mm ( Mitutoyo equivalent 209-922)
Brand: Kroeplin
SKU: D4R50S
Price: 482.23 GBP
Availability: InStock

KroeplinSKU: D4R50S

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£482.23

Quantity:

All prices exclude VAT, which will be added at checkout.

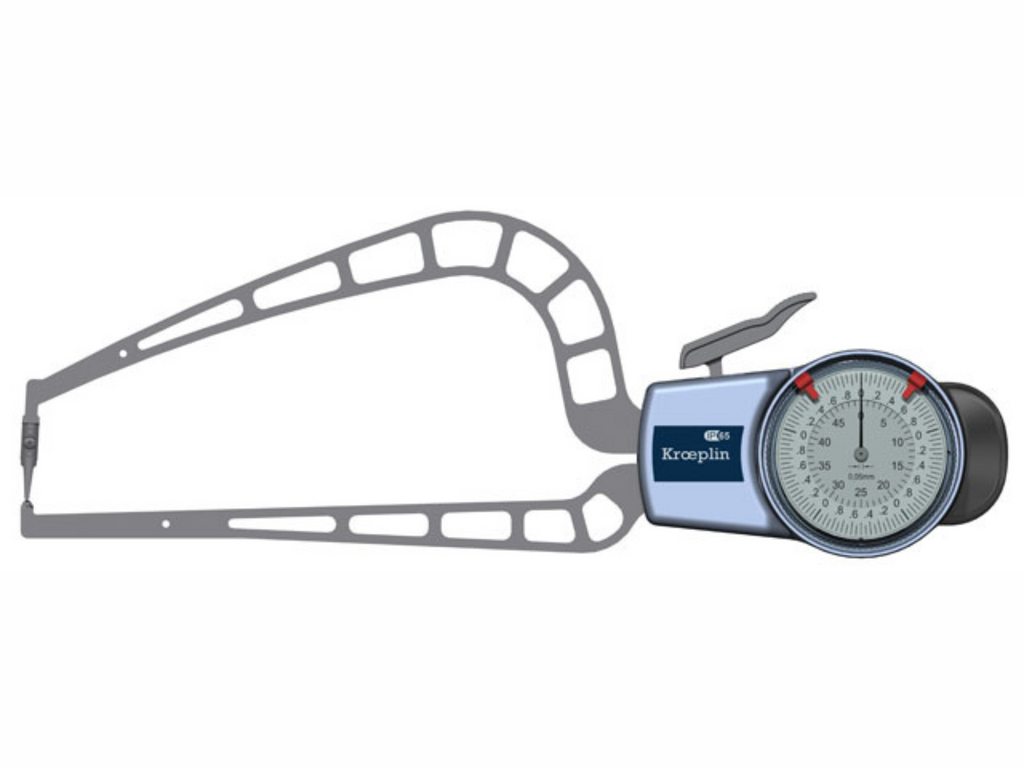

Kroeplin Analogue Tube Wall Caliper Gauge

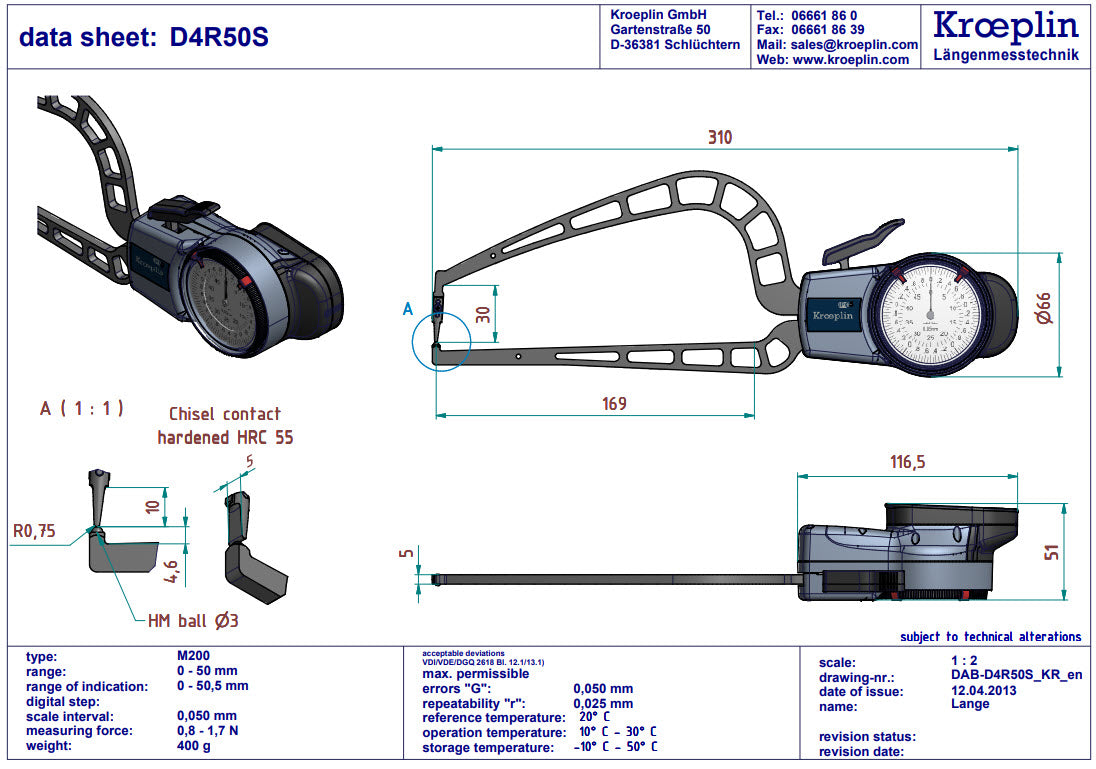

Specification

External Caliper Gauge Features

Range: 0-50mm
Resolution: 0.05mm
Accuracy: ± 0.05mm
IP65: High protection against liquid and dust ingress

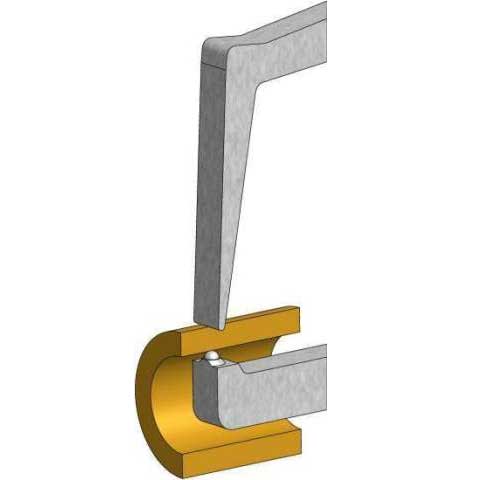

Measuring Contact: Carbide ball ø3mm / bevel, radius 0.75mm
Measuring force: 0.8-1.7N
Max Measuring Depth: 169mm

Product Information
Part Number	D4R50S
Measuring Ranges	0-50mm
Graduation	.05mm
Accuracy	.05mm
Unit of Measurement	Metric
Display Type	Analogue
Data Output	No
IP Rating	IP65
Measuring Force	0-8-1.7N
Type	Tube Wall
Repeatability	.03mm
Measuring Contacts	Carbide Ball 3mm diameter/Carbide Bevel radius 0.75mm
Measurement L	169mm
Measurement B	4.6mm
Measurement A	30mm
Manufacturer	Kroeplin
