ART220 Surface roughness meter

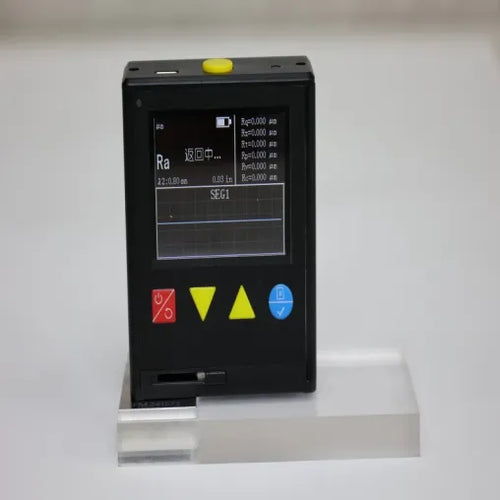

ART120 is a portable surface roughness tester with mechatronic design, built-in high-performance processor, and compatible with many national standards such as ISO, DIN, ANSI, JIS, etc. It has the characteristics of high measurement accuracy, wide measurement range, easy operation, portable and stable operation. And it has a large data storage capacity, low power consumption, automatic sleep and etc.
The portable roughness instrument is a new generation of pocket portable surface roughness instrument launched by our company. It has the characteristics of high measurement accuracy, wide measurement range, easy operation, easy to carry, stable work, can be widely used in a variety of metal and non-metal processing surface detection, the instrument is a sensor host integrated pocket instrument, can be measured for a long time. With the handheld characteristics, more suitable for use in the production site.
Aluminized mold design, durable, resistance to electromagnetic interference ability, in line with todays design potential.
● Using the low power consumption ARM microprocessor for data processing and calculation, which greatly improves the measurement and calculation speed.
● Display LCD adopts 2.4-inch IPS TFT, high brightness, no visual dead Angle, suitable for various occasions.
● Built-in lithium ion charging battery and charging control circuit, high capacity, no memory effect, can work for a long time.
● Automatic shutdown function and low power consumption hardware and software design make the instrument work very long, suitable for all kinds of fields.
● Sensor head has a protection door, effectively protect the sensor head, to ensure the accuracy of measurement.
|
Measured parameters (μ m) |
Ra、Rq、Rz、Rt、Rp、Rv、Rc |
|
Travel Length (mm) |
5.6 |
|
Sampling length (mm) |
0.25、0.80、2.50、5.0 |
|
Assessment Length (mm) |
1.25、4.0 |
|
measuring range (μm) |
Ra、Rq :0.05~10.0;Rz、Rt、Rp、Rv、Rc:0.1~ 50 |
|
indicating error |
±10% |
|
Illustration of variability |
<12% |
|
Arc radius and angle of the sensor touch needle tip |
Arc radius of needle tip: 10 μ m ± 1 μ m; angle 90°10° |
|
Static measuring force of the sensor needle and its change rate |
Static force: <0.016N; rate of force change: <800 N/m |
|
Sensor guide pressure |
<0.5N |
|
cell |
Lithium-ion rechargeable battery |
|
outline dimension |
73 mm×28 mm×62 mm |
|
weight |
220g |
|
Working environment conditions |
Temperature: -20℃ 40℃; relative humidity: <90%, no vibration and corrosive medium |
|
Part number |
Name |
|
|
1 |
Tester main unit |
1pc |
|
2 |
calibration block |
1 block |
|
3 |
operating instruction |
1pc |
|
4 |
certificate |
1 pc |
|
5 |
warranty card |
1 pc |
|
6 |
USB cable |
1 pc |
|
7 |
instrument container |
1pc |
