Description

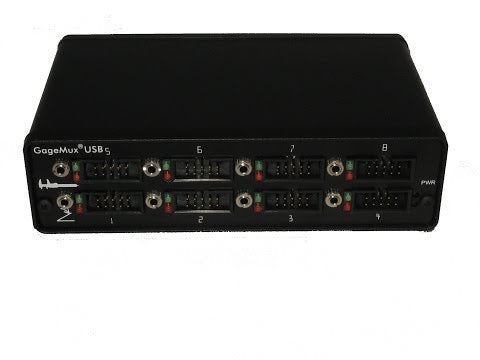

GageMux® USB 4-port Keyboard Output Gage Interface
Send data directly to Excel---No Software Wedge Required
SPC data collection made easy!! Compatible with all SPC software programs including Explorer based SPC programs. The Advanced Systems & Designs GageMux® universal gage interface USB+RS232+Keyboard can send data to any Windows program (Excel, Word, Windows Explorer) without using a complicated software wedge. Just plug in and play!
Our GageMux® USB gage interface is simple to setup for your data collection needs. The GageMux® USB+RS232+Keyboard will make the gage readings appear as if they were typed in using a standard keyboard. You can also easily configure this GageMux® to send an "Enter" key or "Tab" key after the reading is sent. And, at the same time, it can be easily configured to work the same as our standard 4-port GageMux USB. This GageMux® gage interface meets all of your data collection requirements.

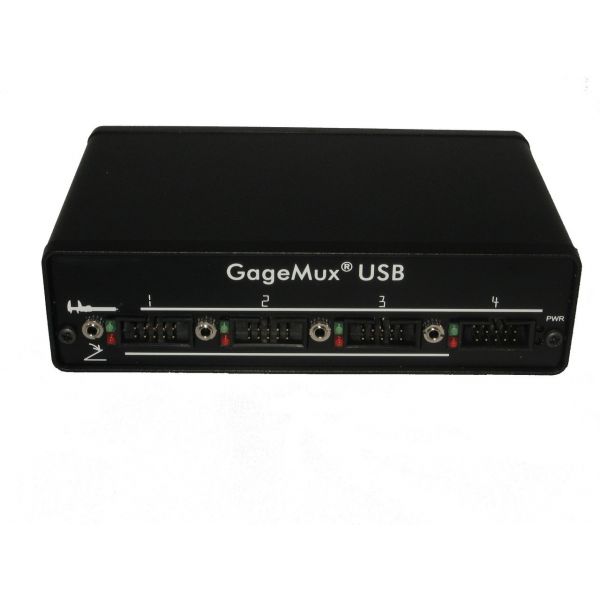

The Advanced Systems & Designs 4-Port GageMux® USB gage interface revolutionized data collection and storage. It allows users to connect hundreds of different types of measuring devices and gages to an automated data collection system. This GageMux USB multiplexer supports four (4) inputs, can daisy-chain up to 500 gages, and reads directly from Mitutoyo gages or Digimatic output gage cables such as our FlashCable® gage interface cables. The GageMux® USB has LED indicators that communicate to the user if a reading is sent to the computer, if a gage is reading incorrectly, and which output mode you have configured (Keyboard, USB or RS232). The GageMux® USB provides configurable options using rotary switches or commands stored in memory. It has a red LED for each port displaying errors, a RS232 pass thru port to connect 100’s of gages to a RS232 or USB serial port on your computer.

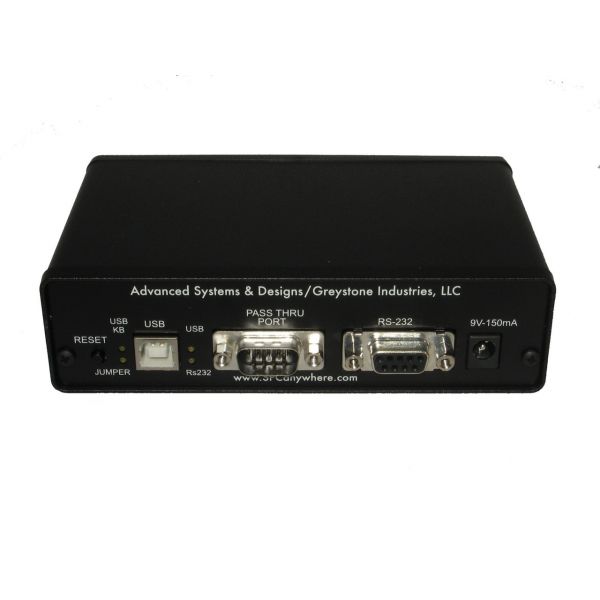

As with our other gage interfaces, the GageMux® USB requires no software wedge or other intermediary software. All of our GageMux USB gage interfaces have simple, user friendly setup – your computer automatically installs the USB driver when the GageMux® is plugged into your computer USB port---just plug and play! If you choose to use the GageMux® as a RS232 9-pin output device, it is easy to change the internal switch settings, connect a serial cable (not included), and the GageMux® will send data to your computer RS232 COM port. No need for additional drivers or external cable converters. We make SPC data collection easy!
Since its invention, the GageMux USB universal gage interface has provided updated functionalities including faster speed and more gage compatibility. You can now send readings up to 100 times faster than with ordinary RS232 serial connections. In addition to the faster speed, the GageMux® USB can support gages from over 500 different manufacturers. See our large variety of FlashCable interface cables and SPC Gage Cables to connect your specific gage or RS232 device to our GageMux® gage interface.
FEATURES:
LIFETIME WARRANTY against manufacturing defects
Dimensions:
4" W x 5"D x 2"H
Power:
USB powered, cable included. With this USB powered GageMux® no special power adaptors are required for use in other countries! A separate power supply may be required when using only the RS232 serial output.
Gage Input:
Mitutoyo compatible gauges including all Digimatic output gages, Mahr Federal Maxum Plus,Maxum III, uMaxum, CDI Logic Series, Starrett Wisdom, Chatillon DFIS, Fowler Ultra Logic,Ono Sokki EG-225, and many more! See our large variety of FlashCable options and SPC Gage Cables to connect your specific gage or RS232 device to our GageMux® gage interface with Keyboard option.
Output Specifications:
Keyboard, USB & RS232 Output: 9600, 8, N, 1.
Example data output:
-
Full Comma-Delimited Format: 001, -1.2340, NRM, 01
-
Reading Only Format: -1.2340
-
Mitutoyo Mux-10 Format: 01A-001.2340
Operating Modes:
Single Reading, Continuous Output Mode, Host Commands
