Automator EOS – Class 1 Safety Laser System with mechanical shutter, Loading area : 440x500 mm

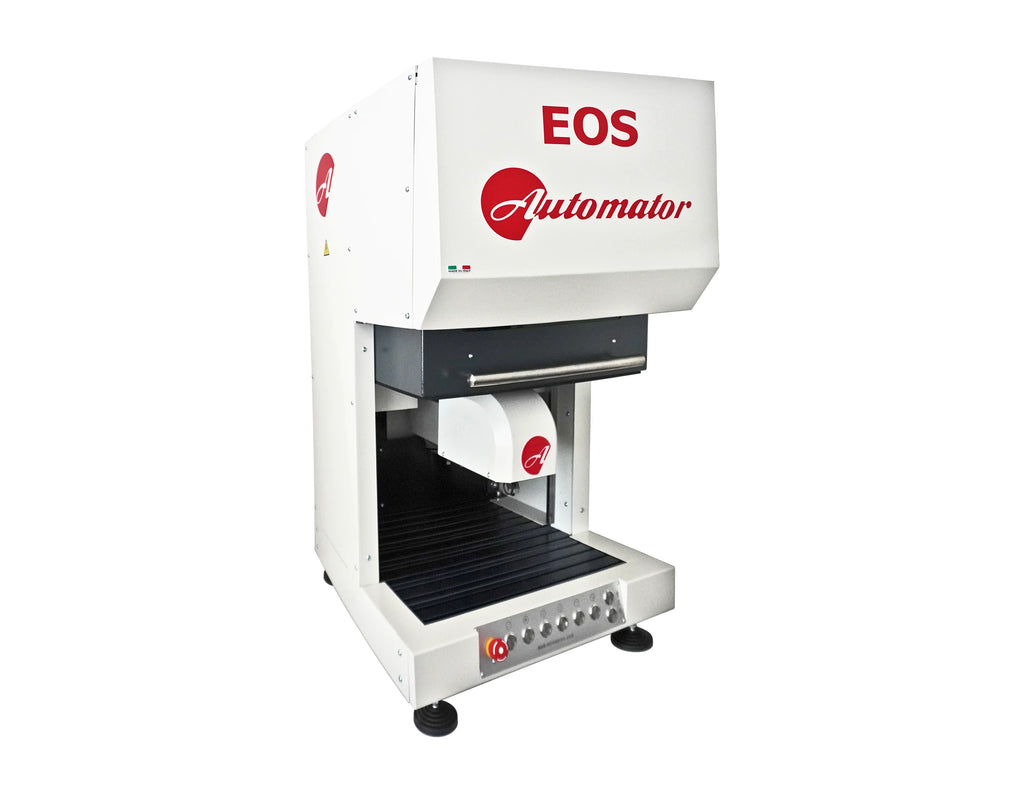

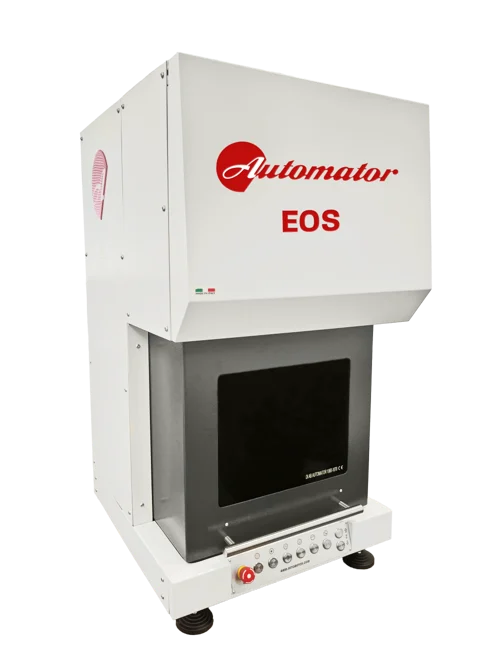

Class 1 laser system for small and medium production runs. The EOS's compact external protective structure is ideal for positioning on a workbench. The loading door opens and closes manually with a locking system, while the internal Z-axis is electric and operated by a button. The large, certified inspection window offers a complete view of the internal loading chamber and marking operations. The EOS is a Class 1 safety laser device .

Class 1 laser marker with mechanical shutter. CE safety certificate.

EOS integrates a shutter housing: this CE-certified, dual-channel mechanical shutter ensures absolute safety for laser marking users. During marking, the shutter remains open and closes when the marking operation is complete, providing a safety lockout. Shutter movement can be controlled by the laser hardware/software or I/O signals. A certified, integrated safety sensor detects the position of the shutter blade in the housing, providing information that confirms the shutter position. EOS is  therefore a Class 1 safety laser marking system, making it extremely reliable.

Loading area : 440x500 mm

Proprietary software for laser marking

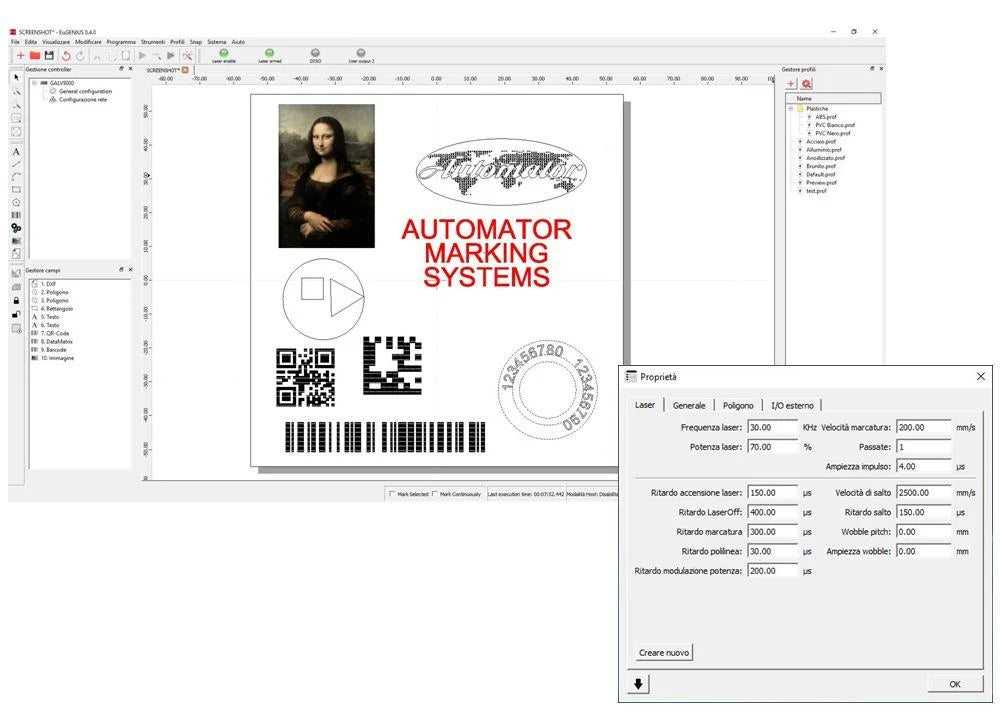

Versatile in its applications, EuGenius ^™ is the laser marking and engraving software that is easy to use, even for operators without specific technical training or knowledge of design software (CAD). EuGenius ^™ is the PROPRIETARY Automator software. This means it can perform any type of marking and can be customized according to the customer's requests based on their marking needs.

• Up to 32 auxiliary axes available and infinite combinations for integration with robots or PLCs
• Easy to use, even for operators without any knowledge of graphics software
• Communication protocols for online integration (Profinet, SQL interface, etc.) available
• Online store with the possibility of activating upgrades

Features of Automator's proprietary EuGENIUS software:

• Multilingual menu
• Management of “ DataMatrix ” barcodes , 2D code, QR code, PDF code
• Easy import of DXF vector drawings
• Easy import of raster graphics, BMP, JPEG, JPG, GIF
• Complete set of laser parameters such as speed or laser power
• Text, Arched Text
• Line, rectangle, polygon, circle and arc
• TTF Font ® (windows property), custom font
• Graphical preview display
• Variable codes with date, serial numbers, shift codes and year/month/day, CSV and TXT files
• Markings with filling or only profile
• Template (object to be marked as background)
• Scale proportion, movement, rotation of each object on the screen
• Quick test for easy identification of the most correct setting parameters
• Automations & object tiling
• External axis controlled by software (RS485)
• Shutter control
• Easy diagnosis for troubleshooting
• Online store for remote purchase/activation of additional options (Stand alone, Profinet, etc.)
