Version:
- For gear measurement and for special tasks
- Carbide measuring balls
- Cylindrical mounting shank with circlip for mounting in the mounting bore of the micrometer or indicating snap gage
Description:
- Ball measuring insert, measuring contact ball diameter mm 3.2 mm , L = 15.5mm, ø = 3.5 mm
Feature:
- Calibration type: Uncalibrated
- Product group name: Marameter
- Product name: Ball measuring insert
- Material Measuring surface: Carbide
- Thread pitch in mm (proxy): false
- Thread pitch in TPI (proxy): false
- Product group name: Indicating measuring devices

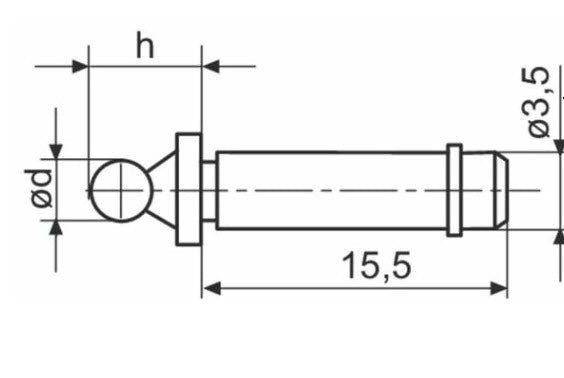

- Mounting hole: 3,5
- Length (mm): 15.5 mm
- Dimension H: 7.7 mm
- Dimension h in mm: 7.7 mm
- Dimension d in mm: 3.2 mm
- Measuring contact ball diameter mm: 3.2 mm
- Manufacturing tolerance +/-: 2 µm
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
