Welcome to MQS-Shop, your one-stop online store for metrology products and a UKAS accredited calibration laboratory No. 0373.

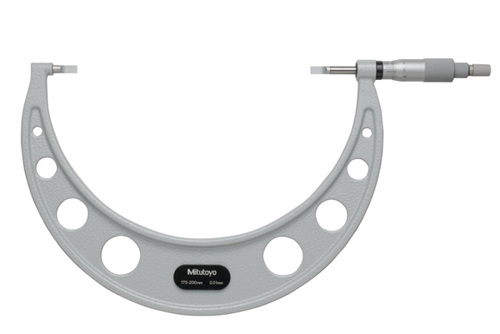

Mitutoyo Blade Micrometer, Hardened Steel Blade 175-200mm, 0,75mm, Blade 122-108-10

Roll over image to zoom in Click on image to zoom

Mitutoyo Blade Micrometer, Hardened Steel Blade 175-200mm, 0,75mm, Blade 122-108-10

Name: Mitutoyo Blade Micrometer, Hardened Steel Blade 175-200mm, 0,75mm, Blade 122-108-10
Brand: Mitutoyo
SKU: 122-108-10
Price: 353.0 GBP
Availability: InStock

MitutoyoSKU: 122-108-10

All prices exclude VAT, which will be added at checkout.

Price:

£353.00 £519.00

Quantity:

This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts.
Non-rotating spindle.

Customer Support

Contact our customer support team via email or call our hotline number

Phone - 02476 644661

Secure payments

We offer multiple secure payment options

Product Information
Part Number	122-108-10
Measuring Ranges	175-200mm
Graduation	.01mm
Accuracy	+/-.005mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	Blade
Constant Force Device	Ratchet Stop
Parallelism	5µm
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	175 - 200 mm
Graduation:	0.01 mm
Max. Permissible Error J MPE:	±5 µm
Parallelism:	5 µm
Measuring face:	Carbide-tipped or hardened steel spindle and anvil
Anvil / Spindle:	Type A, hardened steel t=0.75 mm
Measuring spindle:	ø 6,35 mm, spindle pitch 0.5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	1140 g
