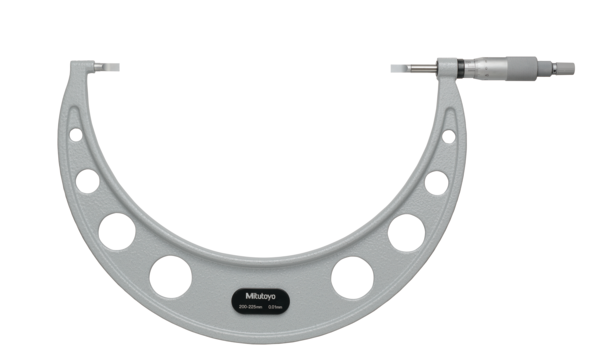

Mitutoyo Blade Micrometer, Hardened Steel Blade 200-225mm, 0,75mm Blade 122-109-10

Roll over image to zoom in Click on image to zoom

Mitutoyo Blade Micrometer, Hardened Steel Blade 200-225mm, 0,75mm Blade 122-109-10

Name: Mitutoyo Blade Micrometer, Hardened Steel Blade 200-225mm, 0,75mm Blade 122-109-10
Brand: Mitutoyo
SKU: 122-109-10
Price: 398.3 GBP
Availability: InStock

MitutoyoSKU: 122-109-10

All prices exclude VAT, which will be added at checkout.

Price:

£398.30 £569.00

Quantity:

This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts.
Non-rotating spindle.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	122-109-10
Measuring Range	200-225mm
Graduation	.01mm
Accuracy	+/-.006mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	Blade
Constant Force Device	Ratchet Stop
Parallelism	5µm
Anvils & Spindle Design	Blades Type A 0.75mm x 6.5mm x 6mm
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	200 - 225 mm
Graduation:	0.01 mm
Max. Permissible Error J MPE:	±5 µm
Parallelism:	5 µm
Measuring face:	Carbide-tipped or hardened steel spindle and anvil
Anvil / Spindle:	Type A, hardened steel t=0.75 mm
Measuring spindle:	ø 6,35 mm, spindle pitch 0.5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	1300 g
