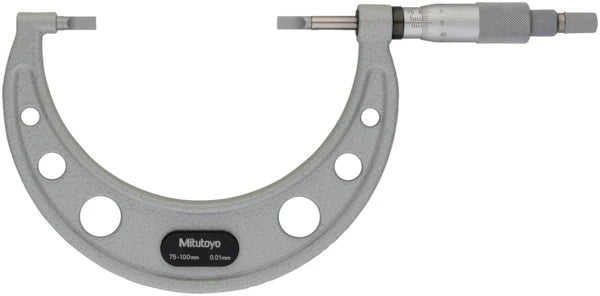

Mitutoyo Blade Micrometer, Hardened Steel Blade 75-100mm, 0,75mm Blade 122-104-10

Roll over image to zoom in Click on image to zoom

Mitutoyo Blade Micrometer, Hardened Steel Blade 75-100mm, 0,75mm Blade 122-104-10

Name: Mitutoyo Blade Micrometer, Hardened Steel Blade 75-100mm, 0,75mm Blade 122-104-10
Brand: Mitutoyo
SKU: 122-104-10
Price: 227.0 GBP
Availability: InStock

MitutoyoSKU: 122-104-10

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£227.00 £311.00

Quantity:

All prices exclude VAT, which will be added at checkout.

This Blade Micrometer is designed to help you measure hard-to-reach features.
It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts.
Non-rotating spindle.

Product Information
Part Number	122-104-10
Measuring Ranges	75-100mm
Graduation	.01mm
Accuracy	+/-.004mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	Blade
Constant Force Device	Ratchet Stop
Parallelism	4µm
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	75 - 100 mm
Graduation:	0.01 mm
Max. Permissible Error J MPE:	±4 µm
Parallelism:	4 µm
Measuring face:	Carbide-tipped or hardened steel spindle and anvil
Anvil / Spindle:	Type A, hardened steel t=0.75 mm
Measuring spindle:	ø 6,35 mm, spindle pitch 0.5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	525 g
