BLAKE CX-1 (801) 5/32" to 4-1/4" Internal Capacity Diameter, 0 to 4-1/4" External Capacity Diameter Co-Ax Type Centering Indicator

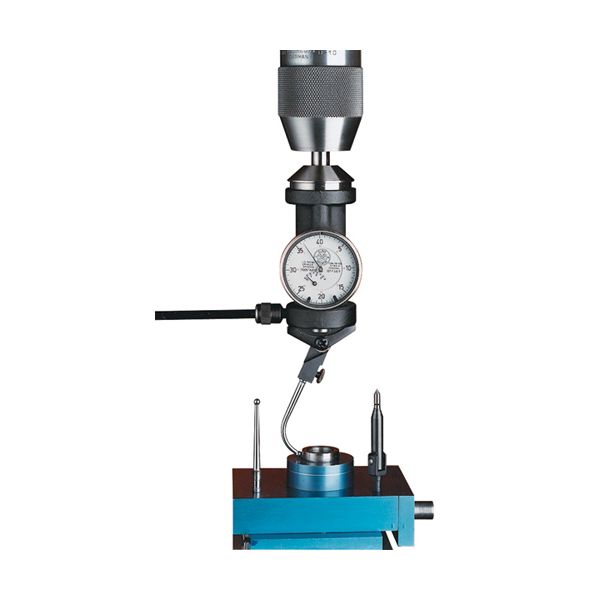

Blake CO-AX Indicator The BLAKE CO-AX INDICATOR provides a simplified method for centering a workpiece or fixture on HORIZONTAL or VERTICAL machines, EXTERNAL or INTERNAL diameters -also with N/C, EDM and other hard to turn spindles.
The face of the indicator remains stationary in any desired position while the machine spindle rotates, thus leaving the operator with both hands free to accurately position the machine table by coordinated movement of the table positioning controls while observing the indicator hand reaction. (Indicator hand travel diminishes as location error is reduced to a point where the hand stands still, indicating coaxial alignment of the diameter being checked with the spindle axis)
By using the CO-AX INDICATOR with the machine spindle running exact operating conditions are more nearly simulated for the centering operation since the influence of power transmission, lubricant flow, bearing characteristics and torque are integrated into the indicator reading.

More Information

Brand	BLAKE
Model #	CX-1 (801)
Shank Diameter	3/8"
Internal Capacity Diameter	5/32" to 4-1/4"
External Capacity Diameter	0 to 4-1/4"

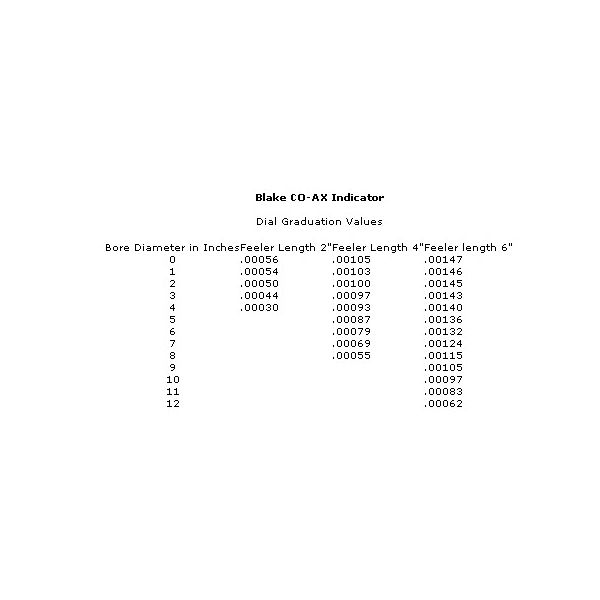

Dial Reading	0-40
Graduation	.0005"
Type	Coaxial Indicator Set
Accuracy	Within .0002" of true center
Case Type_Material	Fitted case
Feeler Ball Diameter	1/8"

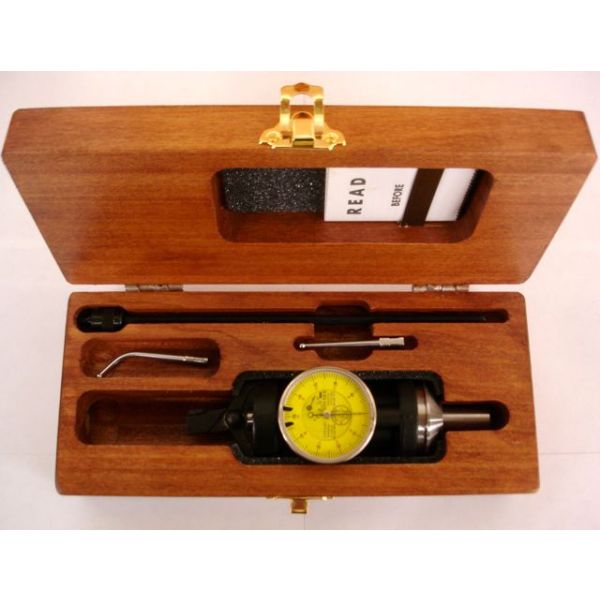

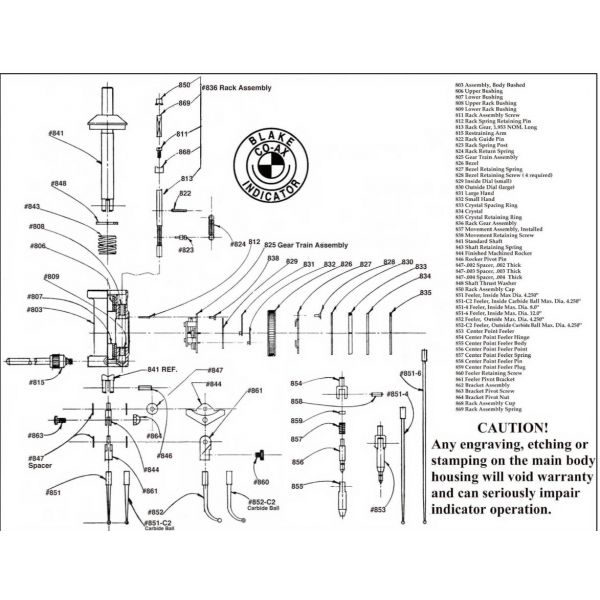

Includes	(1) Indicator, (1) internal feeler, (1) external feeler, (1) restraining arm and fitted case.
Measuring Range	.250" (6mm) Axis Offset
Prop. 65	Yes
Shank Length	7/8"
Weight	2 lbs.
Country of Origin	UNITED STATES OF AMERICA
