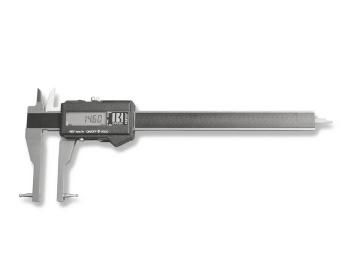

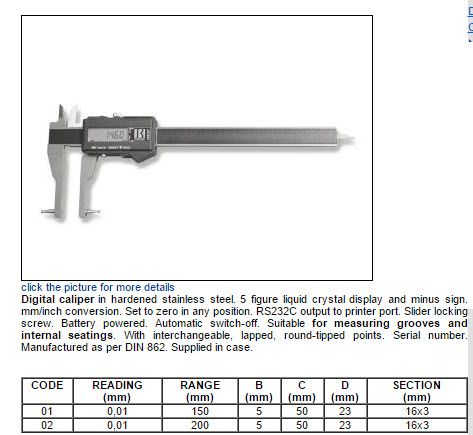

Digital caliper in hardened stainless steel. 5 figure liquid crystal display and minus sign. mm/inch conversion. Set to zero in any position. RS232C output to printer port. Slider locking screw. Battery powered. Automatic switch-off. Suitable for measuring grooves and internal seatings. With interchangeable, lapped, round-tipped points. Serial number. Manufactured as per DIN 862. Supplied in case.
|

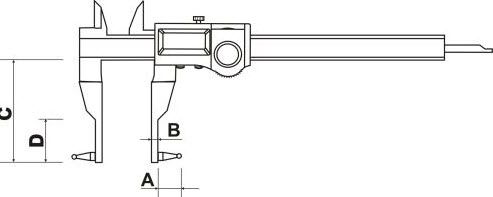

CODE
|
READING
(mm)
|
RANGE
(mm)
|
B
(mm)
|
C
(mm)
|
D
(mm)
|
SECTION
(mm)
|
|
01
|
0,01
|
150
|
5
|
50
|
23
|
16x3
|
|
02
|
0,01
|
200
|
5
|
50
|
23
|
16x3
|
Bocchi Inside Caliper 951/01 Interchangeable pointed tips Range .8-6"/20-150mm, Resolution .01mm/.0005"
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
