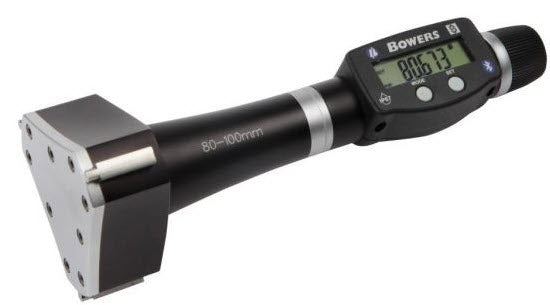

Bowers Three Point Digital Bore Gauge 80-100mm/3.14-4″ XTD80M-BT

Roll over image to zoom in Click on image to zoom

Bowers Three Point Digital Bore Gauge 80-100mm/3.14-4″ XTD80M-BT

Name: Bowers Three Point Digital Bore Gauge 80-100mm/3.14-4″ XTD80M-BT
Brand: Bowers
SKU: XTD80M-BT
Price: 1412.0 GBP
Availability: InStock

BowersSKU: XTD80M-BT

All prices exclude VAT, which will be added at checkout.

Price:

£1,412.00 £1,711.00

Quantity:

Bowers XT Digital Micrometer With Bluetooth

Bowers’ Bluetooth XT3-BT digital internal micrometers offer an ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output; allowing bi-directional communication giving greater flexibility for data acquisition and storage.

FEATURES

Ergonomic design with larger and clearer LCD display
IP67 Electronics
Simple 2-button operation
4 pre-set memories
Proximity output with built-in Bluetooth
Bi-directional communication
Range 2-300mm (0.080” – 12”)
2-6mm 2 point/ 6-300mm 3 point measurement
Resolution 0.001mm/0.00005”
Tungsten carbide measuring faces on all 3-point heads from 12.5mm
Blind bore measurement from 2mm – 6mm and above 12.5mm (0.500”)
Extensions available above 6mm for deep hole measurement
Ratchet stop to ensure consistent measurement
Setting rings included with individual instruments and sets
UKAS certificates supplied as standard with all setting rings and gauges
Serial number on all digital readouts and measuring heads
Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
Bore gauges manufactured according to DIN 863, part 4

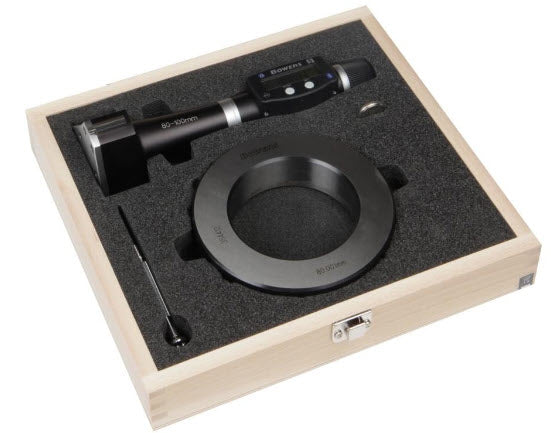

Supplied in fitted wooden case

Product Information
Part Number	XTD80M-BT
Measuring Ranges	80-100mm
Resolution	.001mm/.00005"
Accuracy	+/-.005mm
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP67
Type	Bowers XT
Setting Rings	80mm
Anvils	3 Point Micrometers
Product Description	Bowers 3 Point Micrometer
Manufacturer	Bowers
